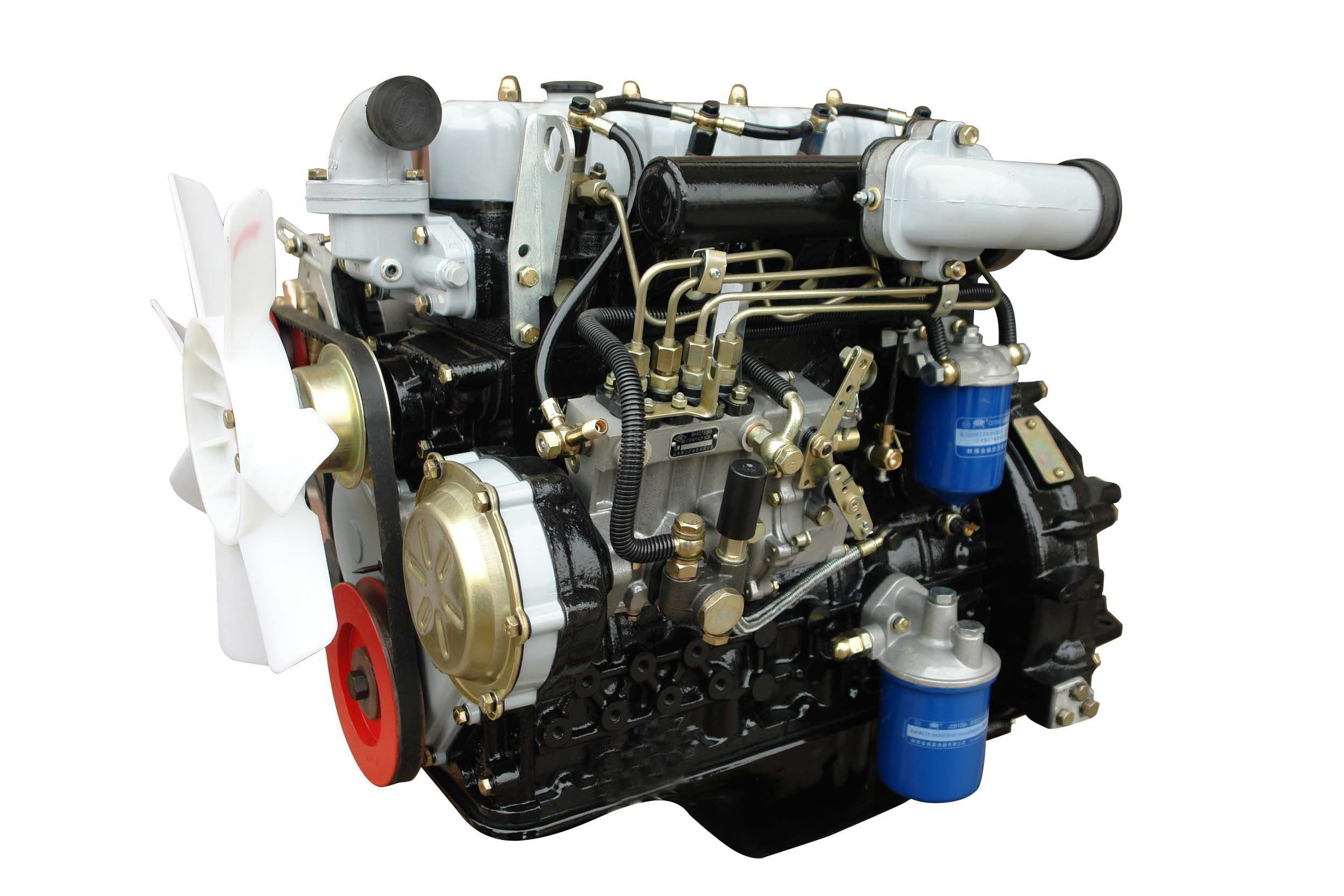

QC498D Quanchai Brand Generator Engine

QC498D Quanchai Brand Generator Engine
Price: Negotiable
Trade Terms: Negotiable
Min Order: 1/Set
Pay Type: L/C,T/T
1. Diesel engine for generator set
2. The power range from 10kw to 235kw
3. Good interchangeability
MODEL QC380D QC385D QC480D N485D QC490D 4102D 4105D
NO OF CYLINDERS 3 4
BORE*STROKE(mm×mm) 80×90 85×90 80×90 85×95 90×100 102×118 105×118
DISPLACEMENT(L) 1.357 1.532 1.809 2.156 2.545 3.857 4.087
RATED OUTPUT(Kw) 10 12 11 13.2 13 15.8 15 18.4 21 25 32 38.4 35 42
RATED SPEED(r/min) 1500 1800 1500 1800 1500 1800 1500 1800 1500 1800 1500 1800 1500 1800
SMOOTH SPEED RATE% ≤5
OILCONSUMPTION RATIO(g/kW·h) ≤265 ≤262 ≤249 ≤245 ≤243 ≤240 ≤238
TYPE OFCYLINDER LINER WET DRY DRY WET WET DRY DRY
DIESEL ENGINE TYPE VERTICAL,WATER-COOLED,FOUR-STROKE
 AIR INTAKE WAY NATURAL INTAKE
CONBUSTION CHAMBER DIRECT INJECTION
LUBRICATING TYPE COMBINATION OF PRESSURE AND PLASH
FLYWHEEL COVER TYPE SAE4 # SAE3 #
FLYWHEEL TYPE SAE7.5″ SAE10″  or  SAE11.5″
EXHAUST FAN DIAMETER(mm) φ410 φ450
NET WEIGHT(Kg) 165 175 195 205 230 320 330
OVERALL DISMENTIONS(mm×mm×mm) 625×600×695 725×600×695 770×575×725 800×635×765 885×630×810
Model 4JR3AD 4JR3ABD QC4112D QC4115D QC4112ZD QC612ZD QC10ZD QC4112ZLD QC6112ZLD QC10ZLD

Diesel Engine Type
vertical,In-line,water cooler,Four-stroke,Naturally Aspirated vertical,In-line,water cooler,Four-stroke,turbo charging vertical,In-line,water cooler,Four-stroke,
turbo charging &inter-cooled
CylinderNo-Bore×Stroke 4-105*135 4-108*135 4-112*135 4-115*135 4-112*135 6-112*135 6-126*130 4-112*135 6-112*135 6-126*130
Cylinder Liner Type Wet Dry Wet Dry
Chamber Type Direct Injection
Rated Output/speed
(kw/r/min)
44/1500 50/1500 55/1500 60/1500 80/1500 125/1500 156/1500 95/1500 165/1500 220/1500

FuelConsumption Ratio (g/kw/h) 205 198

196
Flywheel Ring Gear
Numberof Teath
130 130 133 133 133 144 136 133 144 136
Flywheel cover Type SAE3# SAE3# SAE3# SAE3# SAE3# SAE2# SAE1# SAE3# SAE2# SAE1#
Flywheel Type SAE11.5” SAE11.5” SAE11.5” SAE11.5” SAE11.5” SAE11.5” SAE14” SAE11.5” SAE11.5” SAE14”
Fan Diameter 510 510 550 550 550 640 680 550 640 680
Smooth Speed Ratio ≤5%
Prod Model: QC498D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Established in 1949, Anhui Quanchai Engine Co., Ltd. Is a well-known and large listed company through shareholding restructuring in China. There are more than 3000 staff members in our company. We are principally engaged in manufacturing and sale of multi-cylinder and single cylinder diesel engines.

Our annual production capacity is approximately 420, 000 sets of multi-cylinder diesel engines and 500, 000 sets of single-cylinder diesel engines.

Our diesel engines, the power range from 2KW to 235KW, are widely used as power units for electric power generators, transportation vehicles, tractors, water pumps, forklifts, agriculture and construction machinery.

Quanchai is one of the 520 important enterprises of China and one of the 18 important enterprises of Anhui. We once gained the national prize of "5.1" labor, won the honor of "Chinese Excellent Enterprise in Machinery Industry and Chinese Advanced Organization of The Party". Jiang Zeming, Lipeng, Wanli, Wu Bangguo, Wen Jiabao, Li Tieying and other leaders had successively inspected Quanchai.

We warmly welcome every customer to cooperate with us on the basis of mutual benefits and hope to be your faithful friend and best partner.
