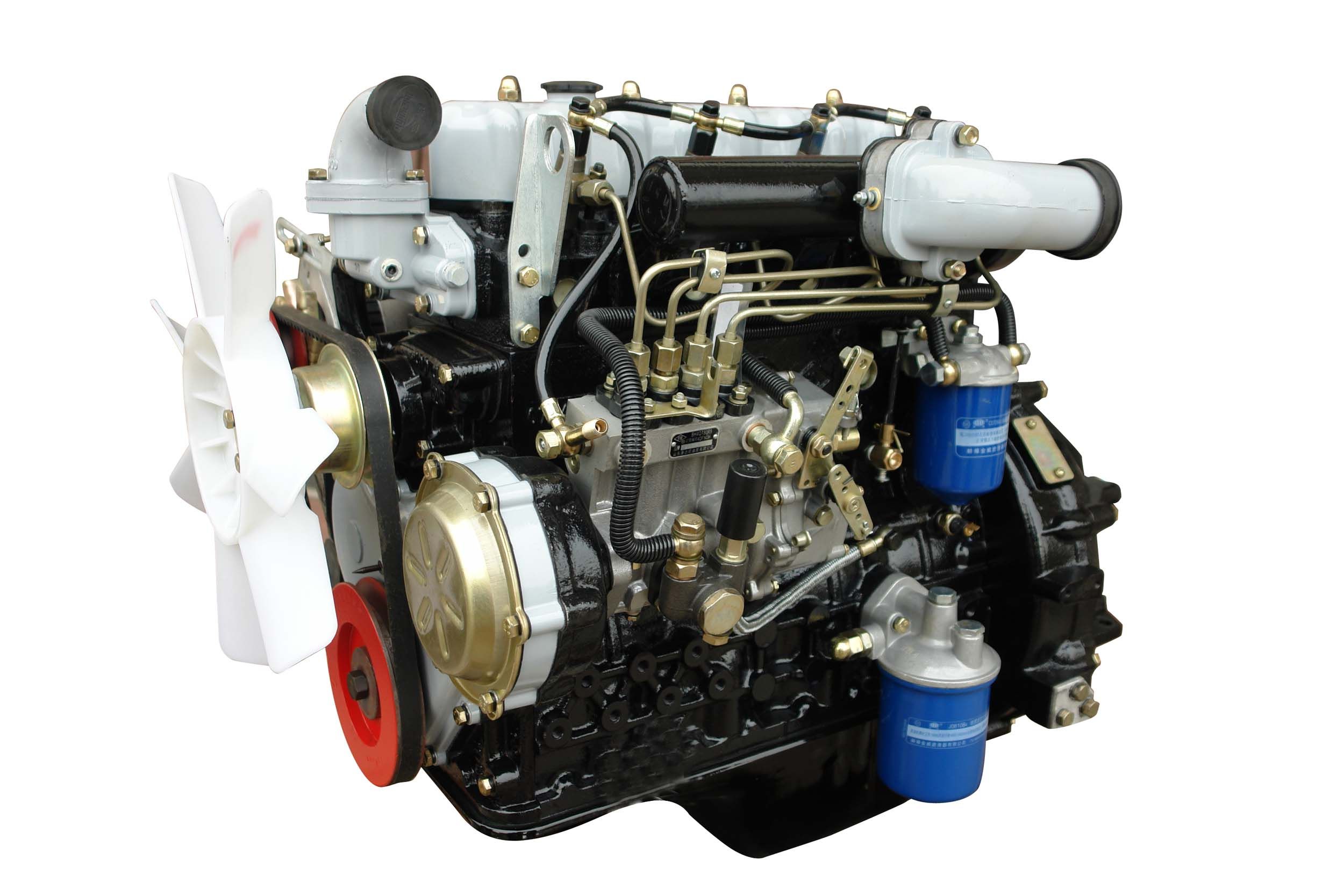

1. Diesel engine for generator set
2. The power range from 10kw to 235kw
3. Good interchangeability
MODEL |
QC380D |
QC385D |
QC480D |
N485D |
QC490D |
4102D |
4105D |
NO OF CYLINDERS |
3 |
4 |
BORE*STROKE(mm×mm) |
80×90 |
85×90 |
80×90 |
85×95 |
90×100 |
102×118 |
105×118 |
DISPLACEMENT(L) |
1.357 |
1.532 |
1.809 |
2.156 |
2.545 |
3.857 |
4.087 |
RATED OUTPUT(Kw) |
10 |
12 |
11 |
13.2 |
13 |
15.8 |
15 |
18.4 |
21 |
25 |
32 |
38.4 |
35 |
42 |
RATED SPEED(r/min) |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
1500 |
1800 |
SMOOTH SPEED RATE% |
≤5 |
OILCONSUMPTION RATIO(g/kW·h) |
≤265 |
≤262 |
≤249 |
≤245 |
≤243 |
≤240 |
≤238 |
TYPE OFCYLINDER LINER |
WET |
DRY |
DRY |
WET |
WET |
DRY |
DRY |
DIESEL ENGINE TYPE |
VERTICAL,WATER-COOLED,FOUR-STROKE |
AIR INTAKE WAY |
NATURAL INTAKE |
CONBUSTION CHAMBER |
DIRECT INJECTION |
LUBRICATING TYPE |
COMBINATION OF PRESSURE AND PLASH |
FLYWHEEL COVER TYPE |
SAE4 # |
SAE3 # |
FLYWHEEL TYPE |
SAE7.5″ |
SAE10″ or SAE11.5″ |
EXHAUST FAN DIAMETER(mm) |
φ410 |
φ450 |
NET WEIGHT(Kg) |
165 |
175 |
195 |
205 |
230 |
320 |
330 |
OVERALL DISMENTIONS(mm×mm×mm) |
625×600×695 |
725×600×695 |
770×575×725 |
800×635×765 |
885×630×810 |
Model |
4JR3AD |
4JR3ABD |
QC4112D |
QC4115D |
QC4112ZD |
QC612ZD |
QC10ZD |
QC4112ZLD |
QC6112ZLD |
QC10ZLD |
Diesel Engine Type |
vertical,In-line,water cooler,Four-stroke,Naturally Aspirated |
vertical,In-line,water cooler,Four-stroke,turbo charging |
vertical,In-line,water cooler,Four-stroke,
turbo charging &inter-cooled |
CylinderNo-Bore×Stroke |
4-105*135 |
4-108*135 |
4-112*135 |
4-115*135 |
4-112*135 |
6-112*135 |
6-126*130 |
4-112*135 |
6-112*135 |
6-126*130 |
Cylinder Liner Type |
Wet |
Dry |
Wet |
Dry |
Chamber Type |
Direct Injection |
Rated Output/speed
(kw/r/min) |
44/1500 |
50/1500 |
55/1500 |
60/1500 |
80/1500 |
125/1500 |
156/1500 |
95/1500 |
165/1500 |
220/1500
|
FuelConsumption Ratio (g/kw/h) |
205 |
198
|
196 |
Flywheel Ring Gear
Numberof Teath |
130 |
130 |
133 |
133 |
133 |
144 |
136 |
133 |
144 |
136 |
Flywheel cover Type |
SAE3# |
SAE3# |
SAE3# |
SAE3# |
SAE3# |
SAE2# |
SAE1# |
SAE3# |
SAE2# |
SAE1# |
Flywheel Type |
SAE11.5” |
SAE11.5” |
SAE11.5” |
SAE11.5” |
SAE11.5” |
SAE11.5” |
SAE14” |
SAE11.5” |
SAE11.5” |
SAE14” |
Fan Diameter |
510 |
510 |
550 |
550 |
550 |
640 |
680 |
550 |
640 |
680 |
Smooth Speed Ratio |
≤5% |
Established in 1949, Anhui Quanchai Engine Co., Ltd. Is a well-known and large listed company through shareholding restructuring in China. There are more than 3000 staff members in our company. We are principally engaged in manufacturing and sale of multi-cylinder and single cylinder diesel engines.
Our annual production capacity is approximately 420, 000 sets of multi-cylinder diesel engines and 500, 000 sets of single-cylinder diesel engines.
Our diesel engines, the power range from 2KW to 235KW, are widely used as power units for electric power generators, transportation vehicles, tractors, water pumps, forklifts, agriculture and construction machinery.
Quanchai is one of the 520 important enterprises of China and one of the 18 important enterprises of Anhui. We once gained the national prize of "5.1" labor, won the honor of "Chinese Excellent Enterprise in Machinery Industry and Chinese Advanced Organization of The Party". Jiang Zeming, Lipeng, Wanli, Wu Bangguo, Wen Jiabao, Li Tieying and other leaders had successively inspected Quanchai.
We warmly welcome every customer to cooperate with us on the basis of mutual benefits and hope to be your faithful friend and best partner.
