1) High efficiency, prompt delivery, good performance
2) TUV, MCS, CE, ISO9001
3) Poly and mono from 1W-300W
1. What is 100% TUV standard flash test?
Flash test machine with TUV standard reference solar panel, all Panels are tested with 100% TUV standard or standard higher than TUV standard
In the market, not all solar panel is real tested with TUV standard, flash machine reference panel is not TUV standard, so the power is 2%-3% less than TUV standard.
2. Solar panel Description:

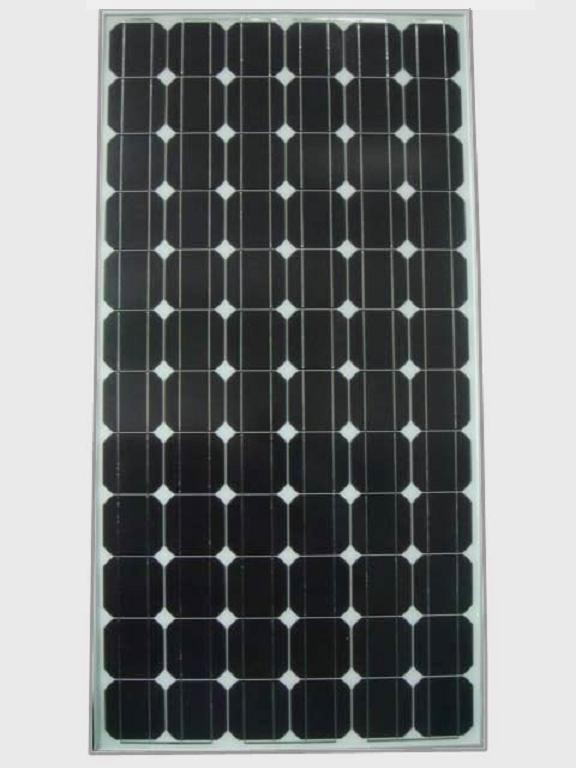

TDM6672 Series solar module is connected in series by 72 pieces of 156mmX156mm Mono Crystalline silicon cells. TDM6672 Series solar module includes 250W, 260W, 270W, 275W, 280W, 285W, 290W,
3. Solar panel Characteristics
1) Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)
2) High efficiency crystalline silicon solar cells
3) High transmission low-iron tempered glass, strong mechanical resistance
4) Anti-ageing EVA and excellent anti-climate back sheet
5) Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6) Standard waterproof junction box
7) High endurance to different weather
8) Good and friendly package with less transportation and storage space.
4. Solar panel Warranty
1)10 years limited manufacturing warranty
2)12 years for 90% of warranted minimum power
3)25 years for 80% of warranted minimum power
5. Solar panel Electric Characteristics
Module Type TD MONOCRYSTALLINE 156MMx156MM
Number of cells 72 PCS
Dimension 1956MMx992MMx50MM
Maximum Power(Pmax) 250 260 265 270 275 280 285 290
Cell Eff 14.70 15.28 15.58 15.87 16.17 16.46 16.75 17.05
Module Eff 12.89 13.40 13.66 13.92 14.18 14.43 14.69 14.95
Power tolerance 250W± 3% 260W± 3% 265W± 3% 270W± 3% 275W± 3% 280W± 3% 285W± 3% 290W± 3%
Maximum Power Voltage (Vmp) 35.20 36.00 36.21 36.40 36.72 36.72 36.97 37.42
Maximum Power Current (Imp) 7.12 7.23 7.32 7.42 7.49 7.63 7.71 7.75
Open circuit Voltage (Voc) 43.88 43.59 43.61 43.63 43.78 43.88 44.23 44.63
Short circuit Current (Isc) 7.81 7.92 7.96 8.05 8.20 8.25 8.28 8.31
