Rated power: 2500W: 2500W: 2500W: 2500W: 2500W: 2500W
Peak power: 5000W: 5000W: 5000W: 5000W: 5000W: 5000W
DC input voltage: 12V: 24V: 48V: 12V: 24V: 48V
AC output voltage: 110VAC: 220VAC
No-load current: 3A: 1.5A: 1A: 3A: 1.5A: 1A
AC output frequency: 50Hz/60Hz ± 1%: 50Hz/60Hz ± 1%

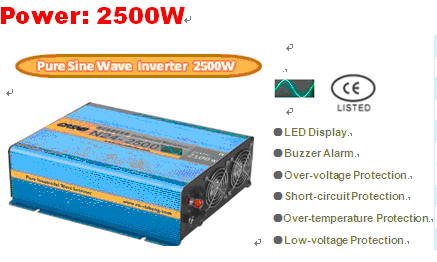

AC output waveform: Pure Sine Wave
Waveform Distortion: THD≤ 3% (Linear load)
Efficiency: ≥ 90%: ≥ 90%: ≥ 90%: ≥ 90%: ≥ 90%: ≥ 90%
DC input voltage range: 10.5-15V: 21-30V: 42-60V: 10.5-15V: 21-30V: 42-60V
Low Voltage Alarm: 10.5+/-0.5V: 21+/-0.5V: 42+/-0.5V: 10.5+/-0.5V: 21+/-0.5V: 42+/-0.5V
Low Voltage Shutdown: 10+/-0.5V: 20+/-0.5V: 40+/-0.5V: 10+/-0.5V: 20+/-0.5V: 40+/-0.5V
Over Voltage Protection: 15.5+/-0.5V: 31+/-1V: 62+/-2V: 15.5+/-0.5V: 31+/-1V: 62+/-2V
Low Voltage: 10+/-0.5V: 20+/-1V: 40+/-1V: 10+/-0.5V: 20+/-1V: 40+/-1V
Over Voltage: 14.8V+/-1V: 29.5V+/-1V: 59V+/-1V: 14.8V+/-1V: 29.5V+/-1V: 59V+/-1V
Floating: Grid Three Stage Battery Charging
Floating voltage: 12.8V: 25.6V: 51.2V: 12.8V: 25.6V: 51.2V
Protective Function: Low/Over voltage: LED Red light: Over load: LED Red light: Over temperature: LED Red light: Short circuit: LED Red light: Input reverse connection: Fuse Burn-out: Low voltage / Over temperature: Alarm
Working Temp: -10~45
Working Environment: Dry & ventilation
Storage Temp. Humidity: (-30C)-70
Circuit board: Double sides welded circuit
Cooling Type: Channel cooling by fan
Cover material: Oxidized Aluminum Alloy
Dimensions/Packing Size: 370*274*116.4 / 480*362*185mm
N. W/G. W: 8.20KG / 9.48KG
With more than 20 years of efforts, Yueqing Risheng Electronics Co; Ltd (CRSNB) has been a highly reputable power inverter supplier in China, who focuses on designing, manufacturing and marketing power inverter, emergency power, power switches and Auto Parts etc. We have exported our products to overseas markets including: America, Russia, Europe, Africa, South-east Asia, Australia, Middle East, etc
