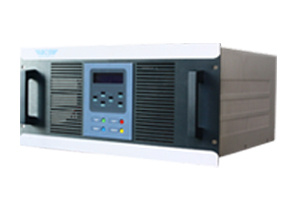

PV off Grid Inverter Single Phase

This series of product is specially designed for remote areas which are lack of electricity. It is digital design, pure sine-wave output, power frequency design, independent modularization which enhances the reliability and expandability of the product. It is mainly applied to the solar energy PV generating system, wind power system, wind, sun, oil, storage hybrid generating system and provide AC power supply for remote area, satellite ground reception, observatory, frontier defence station, communication station, electroless island and so on.

Rated Capacity(kVA)
0.3(kVA)

DC Input
Rated Voltage(VDC)
12.0(VDC)

Low Voltage(VDC)
10.8(VDC)

Low Voltage Resume (VDC)
12.6(VDC)

Load Overvoltage(VDC)
17.0(VDC)

Load Overvoltage Resume(VDC)
16.0(VDC)

AC Output
Rated voltage
220(VAC)

Rated Frequency
50(Hz)

Output waveform
Sine wave

Overload ability
120% 1 minute

Voltage Stablization Precision(AC)
220± 3%(AC)

Frequency Stablization Precision(Hz)
50± 0.04(Hz)

THD
≤ 3%(THD)

Dynamic Response(0~100%)
5%

Inverter Efficiency
≥ 75%

Crest Coefficient(CF)
3: 1(CF)

Continuous running time
Continuous running

Display
LCD Display

Content
Battery voltage, battery capacity, output voltage, output current

Communication interface
No

Lightning protection device
No

Protection
Overcharge, overdischarge, overload, short circuit, reverse polarity, internal overheated protections, etc

Reference Dimensions(d\w\h mm)
380× 340× 143(mm)

Reference Packing Size(d\w\h mm)
490× 428× 250(mm)

Reference weight(Kg)
17(Kg)

Protection class
IP20

Environment
Noisy(dB, 1meter)
≤ 50(dB, 1 m)

Operating temperature(° C)
-10~+50(° C)

Storage temperature(° C)
-25~+55(° C)

Operating humidity
0~95%(No condensation)

Operating alititude
≤ 5000(m)
