Psa Oxygen Plant Technology Proposal

Psa Oxygen Plant Technology Proposal
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union
Pressure Swing Adsorption(PSA) is a popular technology which is used to separate some gas species from a mixture of gases under pressure. This is achieved as per the species' molecular characteristics and affinity for an adsorbent material. PSA operates at near-ambient temperatures. It differs from cryogenic distillation techniques of gas separation. Special adsorptive materials(for example: zeolites) are used as a molecular sieve, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbent material.

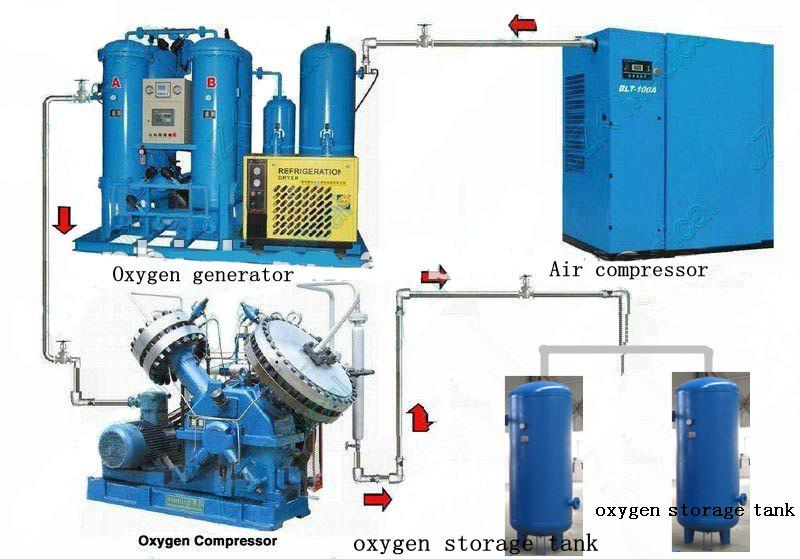

2,System process
System 1,Air compressed system (independent):
First of all, raw materials air compressed by air compressor, the outlet pressure is 0.7MPa, gas production capacity 250m3/min, export temperature ≤ 40 ºC , oil content≤5 PPM. Then the compressed air gets into the air cushion tank V-8.
System 2,Purification system:
Compressed air go through efficient oil removal device (level 3 filter, belt cyclone separator) to remove most of the oil, water, dust, and then into a freezing drying machine, down the compressed air dew point of atmospheric pressure to-23 ºC or so, to remove a large number of moisture. Then into a precision filter to make oil content ≤0.001 PPM, dust content ≤0.01 u m, then go through the activated carbon filter to remove acid and alkaline and other harmful gases and micro oil mist make oil content ≤ 0.001 PPM.
System 3,Oxygen making system:
PSA oxygen generator is an automation equipment which based on zeolite molecular sieve as adsorbent, using pressure adsorption, desorption buck, adsorption to release oxygen from the air. Thus separate O2 from N2. The compression process of water and CO2 is the same with nitrogen. Finally the high purity oxygen came out from the adsorption tower.
System 4, Supercharging system:
The finished oxygen can booster the pressure from 3Mpa to 150Mpa through the supercharging system. The oxygen plant can fill 280 15kg oxygen cylinders on the condition that it works 12 hours per day.
Prod Model: CMT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outlet Pressure: 0.7MPa
Gas Production Capacity: 250m3/Min
Export Temperature: ≤ 40
Oil Content: ≤5 Ppm
Suzhou CMT, an international technology-oriented engineering group company, specialized in Turnkey Projects, technology consulting services and equipments manufacturing.

We have strong technical support. There are more than 2000 personnel in CMT, of which 60% are professional technicians. Around 50 are Middle and senior engineer and over 80 personnel own professional registered certificates.

The head office is located in Suzhou. It is equipped with more than 10 manufacturing bases all over China, spreading from Shanghai, Jiangsu, Shandong, Hebei, Hubei, Shanxi, etc. We are involved in many aspects, including Machinery, pharmaceutical chemicals, municipal utilities, power, electronics, building materials, energy saving, environmental pollution control projects, etc, offering project consulting, project designing, project managing, materials and equipments supply, project construction and running etc.

After all these years, our technology and service have been exported to more than 50 countries in the world, especially in Asia, the Middle East, Africa and the Americas, which earns us a great reputation. We adhere to the principle of "Quality first, service-orientation"and try to provide the best service. We warmly welcome you to our company and create brilliance together!
