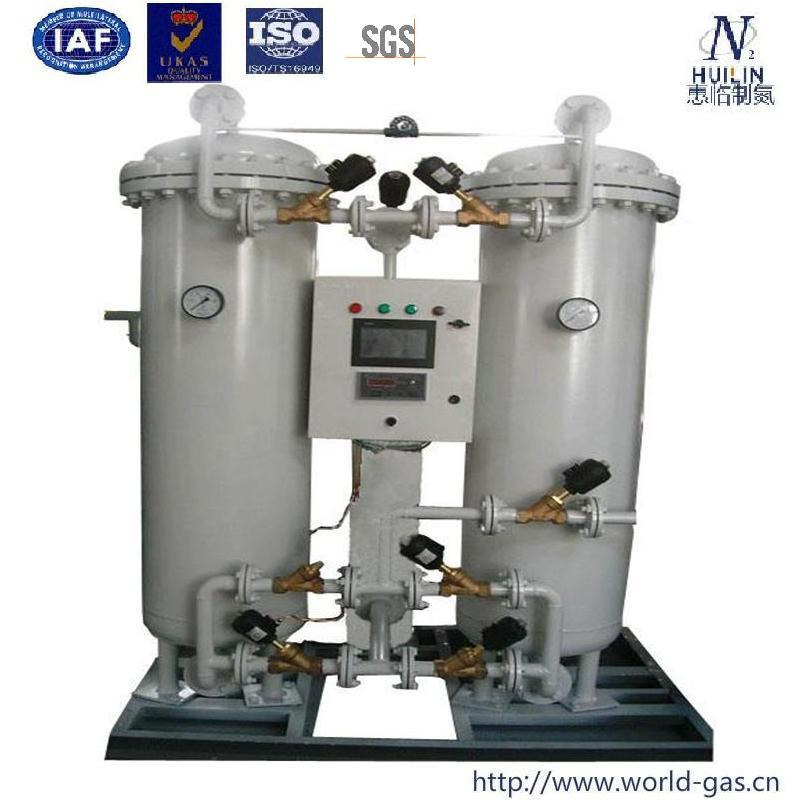

Home Generator Products Psa Oxygen Generator with Filling System

Psa Oxygen Generator with Filling System

Psa Oxygen Generator with Filling System
Price: US $ 5000-10000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Oxygen Generator
1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating
5)certificate: ISO9001: 2008

Principles

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2 is bigger than the quadrupole of O2, the adsorption capacity by molecular sieve to N2 is stronger than O2. When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

The main part of O2 generator is two towers filled with molecular sieve, when the compressed air get into adsorption tower, the N2 is absorbed by molecular sieve, O2 is produced from the export terminal. When one tower produces O2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output O2 continuously.

Technical Features

1). Full Automation
All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
2). Lower Space Requirement
The design and Instrument makes the plant size very compact, assembly on skids, prefabricated from factory.
3). Fast Start-up
Start-up time is only 5 minutes to get desired Oxygen purity. So these units can be switched ON&OFF as per Oxygen demand changes.
4). High Reliabiity
Very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 99% always.
5). Molecular Sieves life
Expected Molecular sieves life is around 15-years i. E. Whole life time of Oxygen plant. So no replacement costs.
6). Adjustable
By altering flow, you can deliver nitrogen with precisely the right purity.

Oxygen generator applications

Paper and Pulp industries
Glass industries
Metallurgical industries
Chemical industries
Water and Wastewater treatment
Fish farming

Why choose us?

1. Convenient to install
2. More economic than other oxygen supplying methods
3. The macaronis design realizes the automatic running
4. Peak value / the security system of the trouble
5. The high-quality components and parts are the reliable assurance of steady operation
6. Oxygen content shows in succession, equipping the transfinite automatic alarm system:
7. The high-quality zeolite molecular sieve:
8. The advanced loading technology guarantees the service life of equipments
9. The automatic alarm system for sinking of the carbon molecule sieve:
10. The unqualified oxygen automatic emptying system
11. Differential pressure indication, concentrating blow down system:
12. The unique inter-circle switching techniques' of system
 Model  Flow
(Nm3/Hr)
  Air consumption
(Nm3/min)
 Inlet
(mm)
 Outlet
(mm)
  HL-WG-STDO-3  3  0.95  20  15
  HL-WG-STDO-6  6  1.9  25  15
  HL-WG-STDO-10  10  2.8  32  15
  HL-WG-STDO-20  20  5.6  40  20
  HL-WG-STDO-30  30  8.4  50  20
  HL-WG-STDO-50  50  14  65  25
  HL-WG-STDO-80  80  22  65  32
  HL-WG-STDO-100  100  28  80  32
  HL-WG-STDO-150  150  42  100  40
  HL-WG-STDO-200  200  56  125  40


Prod Model: HL-WG- STDO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
O2 Purity: 93-98%
O2 Capacity: 3-2000nm3/Hr
O2 Pressure: 0-0.5mpa
Guarantee: One Year
Gas Source: Gas
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.

In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.

Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
