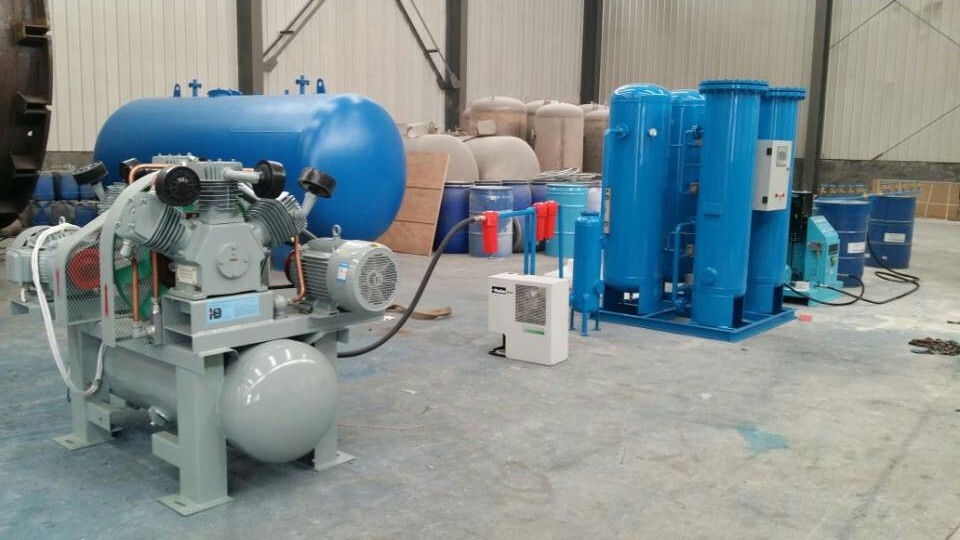

Psa Oxygen Generator With Cylinder Filling Station
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
BROTIE Oxygen Generator for Cylinder Filling
Principles:
Customized PSA oxygen generator, purity 90-95% with no purification system, capacity from 1Nm3/h-50Nm3/h, pressure from 0.1bar to 200bar, uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE oxygen generator system, low air consumption means more economical for customers. The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.
Applications:
1. After the oxygen generator, the purification system to guarantee the quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.
3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; Choose double lines when demand is unstable and sometimes meet extra peak values.
4. Qualified oxygen will be filled into cylinders by diaphragm oxygen compressor at the pressure 150bar, which is easy for transporting and convenient supplier to each patient room.
Model |
Construction |
Dimensions |
Inlet& Outlet |
Weight(Kg) |
BRHO-1 |
Four towers |
620*505*1260 |
G1/4; G1/4 |
226 |
BRHO-2 |
Four towers |
1000*900*1500 |
DN15; G1/2" |
418 |
BRHO-3 |
Four towers |
1000*950*1580 |
DN15; G1/2" |
515 |
BRHO-4 |
Four towers |
1200*1100*1800 |
DN15; G1/2" |
622 |
Two towers |
1050*600*1700 |
DN15; G1/2" |
433 |
BRHO-5 |
Four towers |
1300*1200*1750 |
DN25; G1/2" |
694 |
Two towers |
1100*600*1620 |
DN25; G1/2" |
459 |
BRHO-6 |
Four towers |
1300*1200*1850 |
DN25; G1/2" |
749 |
Two towers |
1100*600*1850 |
DN25; G1/2" |
502 |
BRHO-7 |
Four towers |
1400*1300*1800 |
DN25; G1/2" |
853 |
Two towers |
1200*650*1650 |
DN25; G1/2" |
586 |
BRHO-8 |
Four towers |
1400*1300*1850 |
DN25; G1/2" |
937 |
Two towers |
1200*650*1820 |
DN25; G1/2" |
640 |
BRHO-10 |
Four towers |
1500*1400*1850 |
DN25; G1/2" |
1076 |
Two towers |
1300*700*1750 |
DN25; G1/2" |
758 |
BRHO-15 |
Four towers |
1700*1550*2120 |
DN40; G1" |
1352 |
Two towers |
1400*750*2120 |
DN40; G1" |
923 |
BRHO-18 |
Four towers |
1800*1650*2060 |
DN40; G1" |
1531 |
Two towers |
1550*800*2060 |
DN40; G1" |
1062 |
BRHO-20 |
Four towers |
1800*1650*2250 |
DN40; G1" |
1618 |
Two towers |
1550*800*2250 |
DN40; G1" |
1130 |
BRHO-25 |
Four towers |
1800*1650*2700 |
DN50; G1" |
1899 |
Two towers |
1550*800*2700 |
DN50; G1" |
1327 |
BRHO-30 |
Four towers |
1900*1750*2700 |
DN50; G1" |
2166 |
Two towers |
1650*850*2700 |
DN50; G1" |
1524 |
BRHO-35 |
Four towers |
2100*1900*2600 |
DN50; G1" |
2424 |
Two towers |
1750*900*2600 |
DN50; G1" |
1686 |
BRHO-40 |
Four towers |
2100*1900*2900 |
DN50; G1" |
2633 |
Two towers |
1750*900*2900 |
DN50; G1" |
1847 |
BRHO-45 |
Four towers |
2200*2000*2850 |
DN65; G1" |
2831 |
Two towers |
1850*950*2850 |
DN65; G1" |
2167 |
BRHO-50 |
Four towers |
2100*1950*3100 |
DN65; G1" |
3179 |
Two towers |
1850*950*3100 |
DN65; G1" |
2325 |
BRHO-55 |
Four towers |
2300*2100*3000 |
DN65; G1" |
3328 |
Two towers |
1900*1050*3000 |
DN65; G1" |
2411 |
BRHO-60 |
Four towers |
2300*2100*3210 |
DN65; G1" |
3599 |
Two towers |
1900*1050*3210 |
DN65; G1" |
2615 |
Prod Model: |
BRIO, BRHO |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gas Source: |
Gas |
Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.
So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.
With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.
Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.
We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
