Home Generator Products Psa Oxygen Generator with Competitive Price (ZRO2)

Psa Oxygen Generator with Competitive Price (ZRO2)

Psa Oxygen Generator with Competitive Price (ZRO2)
Price: US $ 15000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
PSA Oxygen Generator


Product Description

1, Product Name: PSA Oxygen Generator
A full installation requires air compressor, refrigerated air dryer, filters, air tank, oxygen generator
and gas buffer tanks.
We supply full installations but each component, and other optional supply like boosters, high
pressure compressors, oxygen cylinders or filling stations can also be bought
separately.


2, Principle
PSA oxygen generator uses clean compressed air as raw material and zeolite molecular sieve (ZMS) as
sorbent, to produce oxygen gas with Pressure Swing Adsorption (PSA) technology in normal
temperature. Comparing with oxygen, nitrogen is preferentially adsorbed by ZMS while at high pressure.
ZMS releases adsorbed nitrogen at low pressure, which is called regeneration. The oil-free and dustfree compressed air enters one of the two adsorption towers filled with ZMS. Nitrogen is
adsorbed ZMS micro pores and then retained and leaves oxygen as product gas. When ZMS in one tower is
saturated with nitrogen, the adsorption tower is depressurized and ZMS is regenerated for next cycle.
While one tower finishes the cycle, the other adsorption tower starts to work. With control on/off state
of the pneumatic valve by PLC, to separate nitrogen and oxygen gas, and create continuous flow of oxygen
with required purity.

3, Specifications

Oxygen Purity: 25%-97±1%
Oxygen Capacity: 1-1000Nm3/h
Oxygen Pressure0.1-0.5MPa
Oxygen Dew-point: ≤-40ºC

ZHONGRUI can design a oxygen generator that fits your particular requirements.

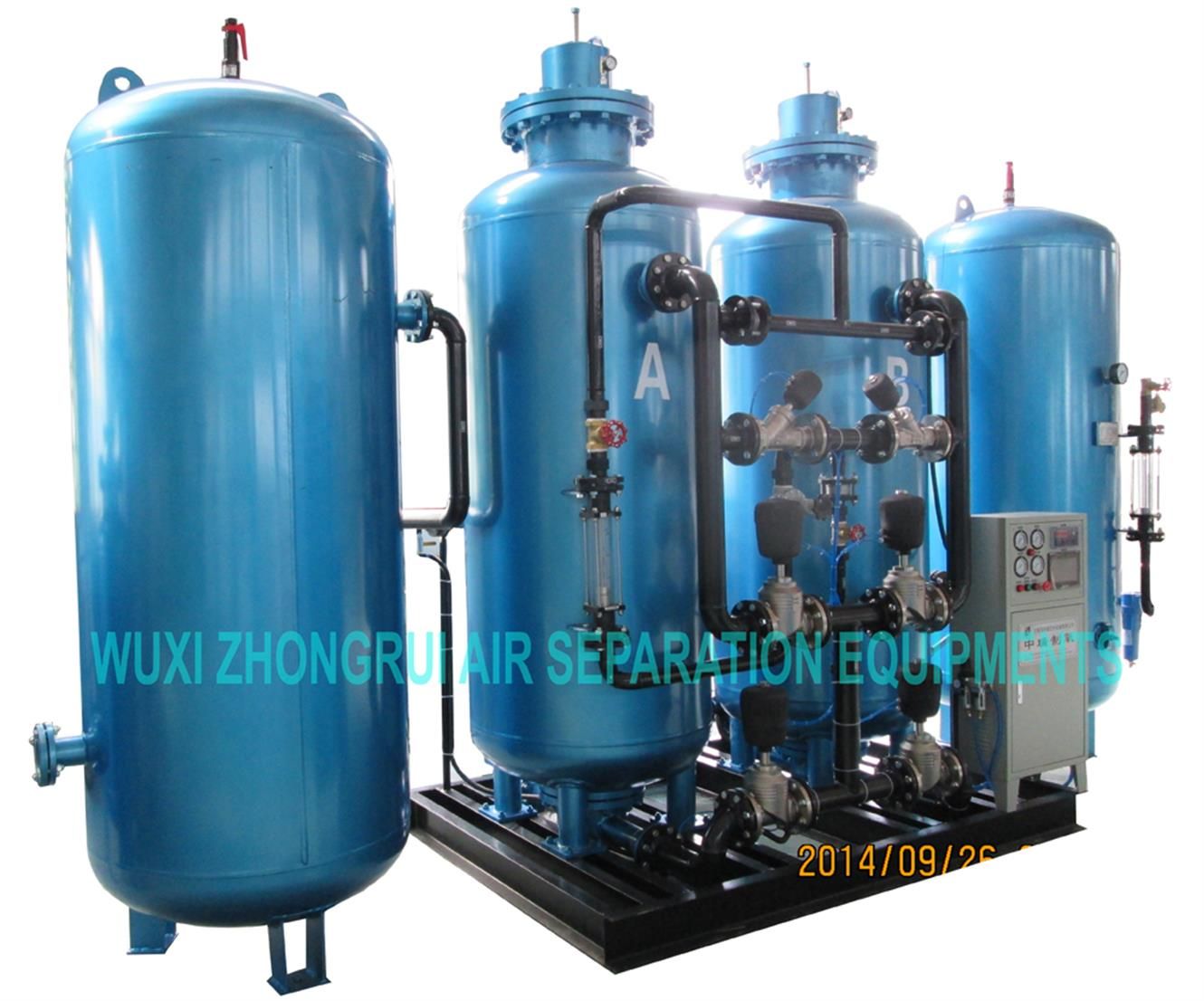

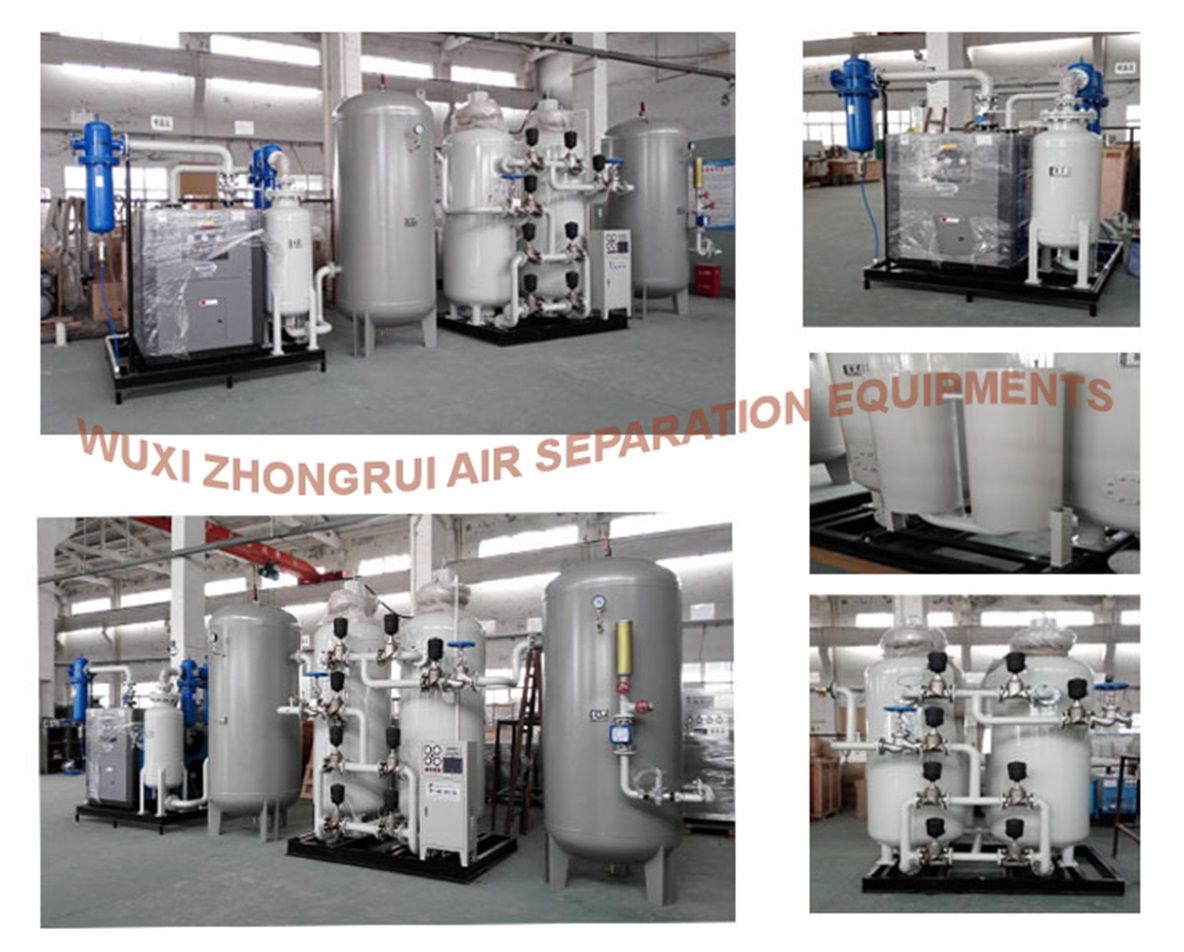

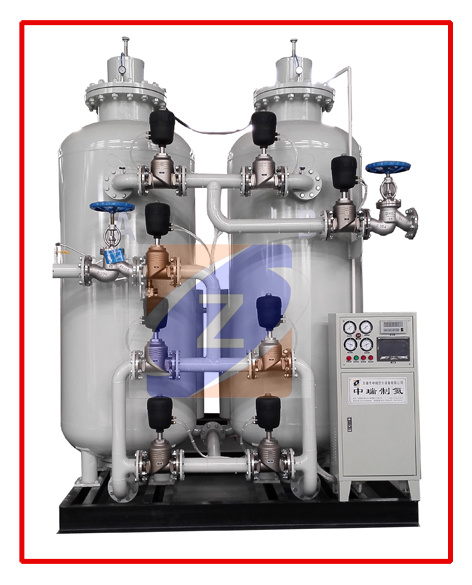

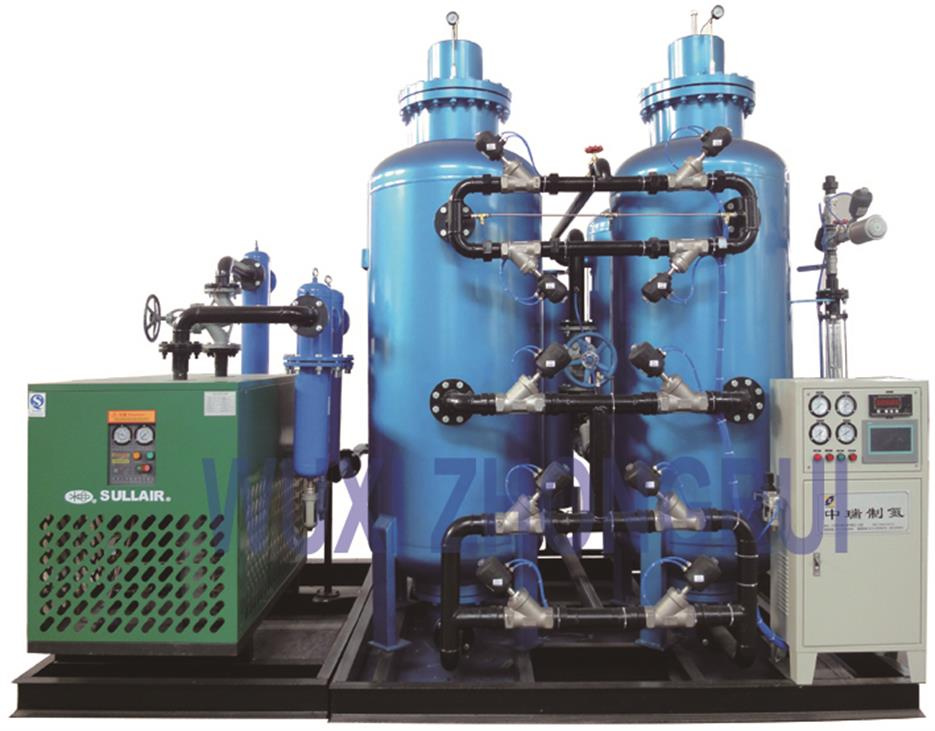

Oxygen Generator Photos

Application of Oxygen Generator
Applied in smelting of nonferrous metal, chemical production, cement production, paper pulp and
paper making, glass kiln, solid waste incineration, sewage treatment, waste gas treatment, etc.
industries.
You can be sure of the quality of your ZHONGRUI solution.
ZHONGRUI uses only the best
suppliers and components. And all oxygen generators are tested before they leave the factory.

Service & Support
ZHONGRUI offers a range of services to help you maximize your benefits.
For maximum
convenience, we offer a fixed price service agreement based
on operation time or calendar
 time. Of course, all customers are welcome to
call us at any time. We are always more
than willing to assist you.
1) Consultancy
Help for self-help, exchange of experience and individual support.
If you have questions on plant operation or need somebody for troubleshooting, we give you
advice either on the phone or in writing. The direct contact with you is very important for us as
it is the basis for a permanent cooperation as partners to the benefit of both sides.

2Commissioning
Systematic from final acceptance of erection to approval of proper operation and guaranteed
features. This includes extensive operational tests, professional filling with adsorbents and catalysts,
proper start-up, optimal setting of operating parameters and check of all safety
functions.
At the same time we train your operating personnel on functions and operation of the plant.

3Spare Parts Service
Worldwide, quick and low-priced over the complete lifetime of your plant.
The distinct tagging of all plant components delivered by us enables us to identify clearly the spare parts
requested by you. We supply you with products designed for a long life and economic effciency.
For modifications and extensions we look for the most optimal and economic solution for your
individual purpose.

4Maintenance/Revisions
Regular inspection and maintenance ensures permanent operation, avoids damage and prevents
unexpected breakdowns. In the course of maintenance/revision works we check all relevant
components for function and condition, exchange defect, used and worn parts and afterwards
optimally eadjust your plant to the given operating conditions. Depending on the plant size and
scope of work, our service range comprises also a detailed scheduling of revisions as well as
coordination and supervision of contractors. As a matter of course we supply maintenance
documentation in form of reports and spare part recommendations, and we coordinate our
schedules according to your requirements.

5Training
Know-how for your personnel.
Operation, maintenance and repair, electric measuring and control equipment or process
engineering - we offer you specific training by our experts. Whether on site working with the
plant itself, or on our permises, we concentrate on your questions and problems.


Why Choose Us?

Benefits

You get many benefits from a ZHONGRUI solution - here are some:

Flexible

1) Be you own supplier
2) On-site and mobile solutions
3) Produce gas when and where you need it
4) Get a solution that exactly fits your needs

Cost Saving

1) Low installation and running costs
2) ZHONGRUI generators run on electricity only
3) Minimum maintenance
4) Having your own supply prevents downtime due to gas shortage
5) No excess gas is produced
6) No transportation or delivery charges
7) Quick pay-back - often less than a year

Easy Operation

1) Fully automated oxygen generators
2)
Minimum maintenance
3)
Easy installation and operation

High Quality

1) Only quality components are used
2)
Durable and reliable oxygen generators



Which Oxygen Generator Should I Choose?

Different parameters are essential for your choice of oxygen generator

 How big is your consumption?

 Is your consumption variable?

 Which pressure is required?

 What purity is required?

 Do you already have a compressed air system?

This is our standard range of oxygen generators. If you have other requirements we will be
happy to produce a generator that matches your needs.


Welcome to contact us for more details!

Prod Model: ZRO2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Technology: Pressure Swing Adsorption (Psa)
Service Life: 8-10 Years with Proper Maintenance
Other Customization: Available
Key Words: Oxygen Generation Plant
Color: Blue, White or Customer Request
Engineer Services: Avaiable
Usage: Oxygen
Condition: New
Certification: Asme
WUXI ZHONGRUI AIR SEPARATION EQUIPMENTS Co., Ltd is located in Luoshe Town, one of top ten civilized ancient towns of Wuxi, at the shore of Taihu Lake and The Grand Canal. Its northern part is close to Shanghai-Nanjing Expressway and Beijing-Shanghai Expressway. 312 National Highway and Wuxi-Yixing Expressway pass through it. In addition, it neighbors upon Wuxi Shuofang Airport and Changzhou Benniu Airport. The perfect sea-land-air transport network enables us to provide our friends both domestic and abroad with more convenient and perfect service.

Our company keeps humanistic spirit and technological innovation as main lines, working closely with state-level professional design institutes and colleges, giving full play to the advantages of high-tech products, carrying through technical innovations, improving product performance and quality constantly. We provides users a great variety of reliable and energy efficient products under the strong support of technology and talents by adhering to ''integrity, innovation, professional, highly efficiency''. The first-class brand ZHONGRUI comes into being!

Through many years' development, the Company has been mainly engaged in manufacturing of (PSA) nitrogen generators, nitrogen purifiers, (PSA) oxygen generators, (VPSA) oxygen generators, hydrogen generators, purification devices, nitrogen-hydrogen proportioning device, heatless purge desiccant air dryer, externally heated purge desiccant air dryer, air purification dryer, refrigerated air dryer, filters, etc. The equipments are featured in compact size, super automation, stable performance, low energy consumption, low noise and non-pollution etc.

ZHONGRUI producets are widely applied in petrochemistry, mechano-electronic, Metallurgy, Coal power, Synthetic rubber, silicon industry, CNG, paper-making industry, mine exploiting, aerospace industry, aquaculture, Bio-Environment, food & pharmacy, Medical & Health, etc. Fields.

In the face of severe competition of the market and constant innovation requirements on products of customers, we will always be devoted to constant innovation and develop efficiently at high starting point to provide customers much better products and service.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
