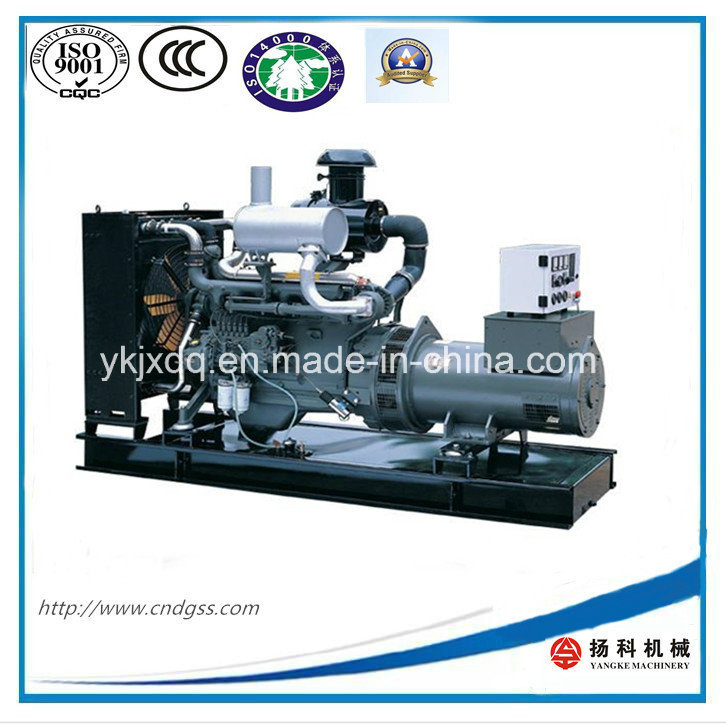

Home Generator Products Professional Power Supplier! ! Deutz 94kw/116kVA Open/ Silent Diesel Generator

Professional Power Supplier! ! Deutz 94kw/116kVA Open/ Silent Diesel Generator

Professional Power Supplier! ! Deutz 94kw/116kVA Open/ Silent Diesel Generator
Price: US $ 10000-20000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Deutz diesel generator has established five major applications to gun for the industrial engine market:
Engine for land-based gen-sets
Engine for marine gen-sets
Engine for air compressors
Engine for pumps
Other industrial engines
Deutz Series engine and alternator:
1. Diesel engine: Nearly 70 years of engine industry experience and more than 3 million of ownerships on the market, Weichai won the respect and recognition of so many customers.
2. Alternator: Stamford, Faraday, Marathon, Leroy-somer, or other Chinese brand brushless and brush alternators are optional.

Standard Configuration of Deutz engine generators:
1. Deutz engine (Original Weichai Deutz).
2. Alternator: 100% pure copper wires, rotation magnet, different brands according to your request.
3. Standard control panel, LCD panel or mechanical panel.
4. Water tank, with protection guard.
5. Shock absorber system: protect the generator during its working period.
6. Maintenance-free start battery.
7. Battery connecting cables
8. Maintenance manuals of engine, alternator and generator.
9. Maintenance tools.
10. Standard steel underframe with stoving varnish.
11. Standard export plywood package.
12. Spare parts for maintenance (as your require)
Deutz series generator working conditions:
1.     Deutz generator can be used continuously every day, and it has been through tests of high temperatures, low temperatures and high altitude. What's more, it can successful start-up under -10ºC with no auxiliary starting equipment.
2. Application area: widely used for shop, hospital, high-way, station, construction, farm, etc.
3. Maintenance: The overhaul period is over 10000 hours; and it will reduce the fault rate and extend the lifetime of the unit.
 4. Above suggestions are based on our experience and are intended only as reference.


Generator Data:


Genset Model
QSDE-110
Frequency
50Hz/1500rpm
60Hz/1800rpm

Voltage
110/220, 220/380, 230/400,
240/415, 254/440V
Prime Power85KW/106KVA
Standby Power94KW/116KVA
PhaseThree or One Phase
Fuel TankAt least 8 hours
Fuel Comsuption23.4L/h


Engine Data:


Engine
Deutz BF4M1013EC
AspirationTrubocharged
Frequency/Speed50Hz/1500rpm,60Hz/1800rpm
Cylinder4
Displacement4.76L
Bore*Stroke108mm*130mm
Compression ratio19:1
Cooling wayWater-cooled
 Speed-droop 5%


Alternator Data:


Frequency/Speed
50Hz/1500rpm,60Hz/1800rpm
Phase3 phase or 1 phase
Protection classIP21 or 23
ExcitationBrushless, self-excitation
Altitude condition<1000m
Insulation classH
Tel.Influence Factor<50
Tel.Harmonic Factor<2%
Efficiency93.80%
Cooling Air Flow127m3/min
Power Factor0.8


Packaging & Delivery
Packaging Detail:generator standard exporting package
Delivery Detail:within 5-25working days after the deposit


Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.



 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.


FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America

Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com








Prod Model: QSDE-116GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Rated Rpm: 1500
Power: 94kw/116kVA
Cylinder No.: Four
Bore/Stroke: 108*130mm
Displacement: 4.76L
Fuel Consumption: 208L
Compression Ratio: 19:1
Size(L*W*H Mm): 2150*750*1550
Weight(Kg): 1290
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
