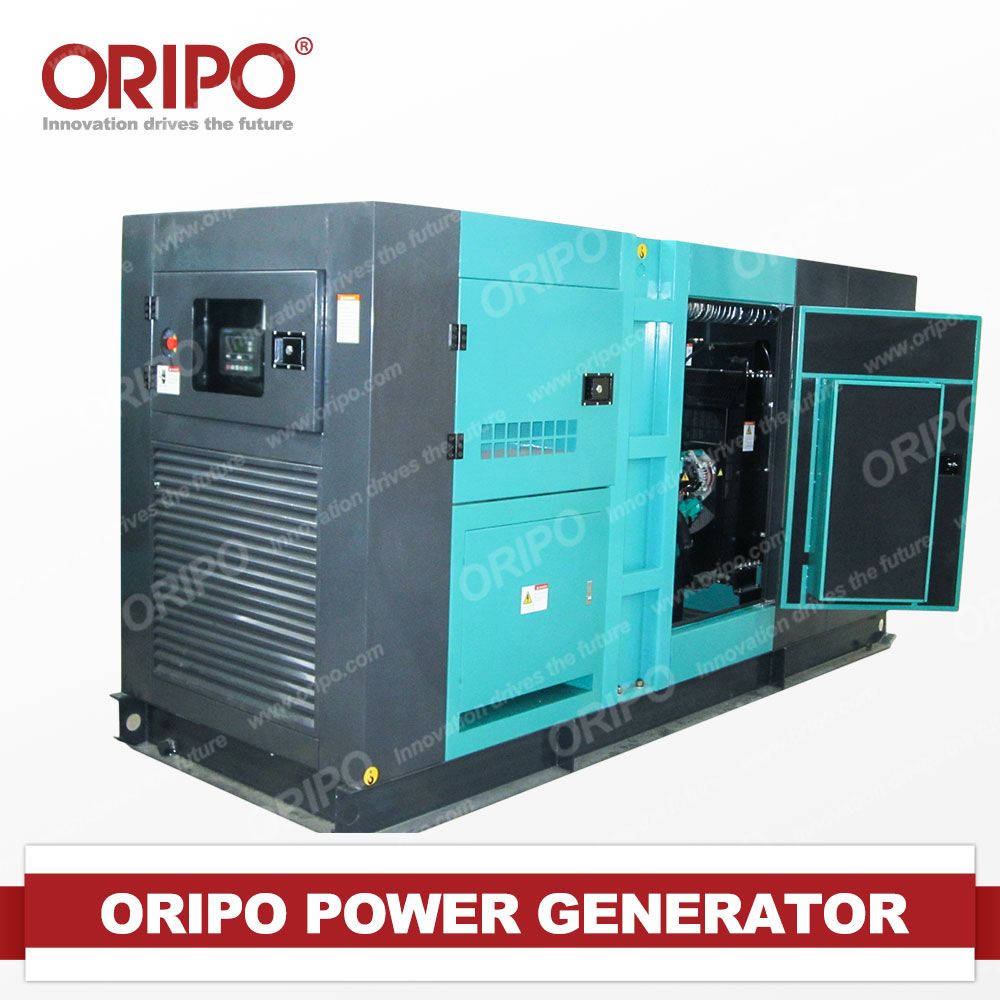

Prime Use 500kw Cummins Diesel Generator for Your Best Choice
| Price: |
US $ 46000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
1. Cummins Power Diesel Generator
2. Prime Power: 500KVA/400KW
3. Frequency: 50Hz or 60Hz
4. Market: Nigeria, Ghana, Uganda, Kenya, Sudan, South Africa.

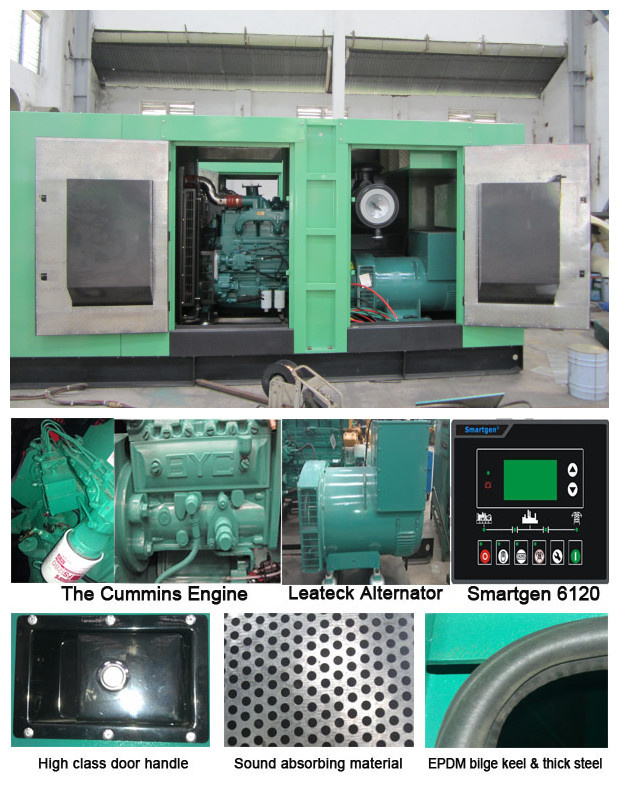

5. Cummins Engine
6. Leateck alternator.
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-550 | 550 | 440 | 500 | 400 | KTA19-G4 | LTG354D1 | 6110 |
220/440VAC,50Hz
,0.8PF (lag),Three phase four wire
Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 203(103.86) |
| Starting Battery Capacity ,A/hrhhr | 200*2 |
| Total Coolant Capacity ,L | 106 |
| Fuel Capacity (base tank),L | N/A |
Engine Data| Model | KTA19-G4 |
| Type | In-line 6 Cylinder,4 Cycle |
| Displacement ,L | 18.9 |
| Compression Ration | 14..5:1 |
| Aspiration | Turbo, Water / Air Cooling |
| Fuel System | PT type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 159*159 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 50 |
| Coolant Capacity, L | 106 |
Alternator Data| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |

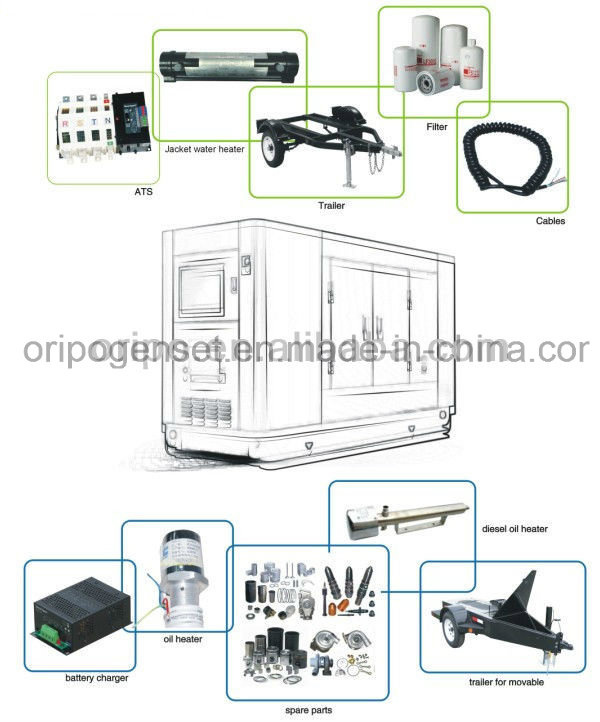

OPTIONAL ACCESSORIES/SPARE PARTS:
-Sound and water proof enclosure
-Trailer/Movable power station
-Battery charger
-Jacket water heater
-Oil heater
-Diesel oil heater
-Automatic transfer switches(ATS) & paralleling system
-Extra fuel tank
-Fuel water separator
Warranty:
1-One year or 1000 working hours whichever comes first!
2-Free spear parts offer in warranty period, if confirm manufacturing defect.
3-Free professional technical service support.
Location: Located in Foshan City , quite near Guangzhou, welcome to our factory to check the products and the quality.
1.From Guangzhou Baiyun International airport to Oripo:
a.It takes about 1 hour by car/taxi,it is about 58 kilometer;
b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo:
a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;
b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.
| Prod Model: |
OCL-550 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Dimension: |
5180*1700*2300mm |
| Alternator: |
Leateck/Stamford |
| Controller: |
Smartgen/Deep Sea |
| Insulation Grade: |
H |
| Protection Grade: |
IP21-23 |
| Start System: |
Electric Start |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
