Home Generator Products Prime Power 50kw 60Hz Diesel Generator Direct Sale by Factory

Prime Power 50kw 60Hz Diesel Generator Direct Sale by Factory

Prime Power 50kw 60Hz Diesel Generator Direct Sale by Factory
Price: US $ 7000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

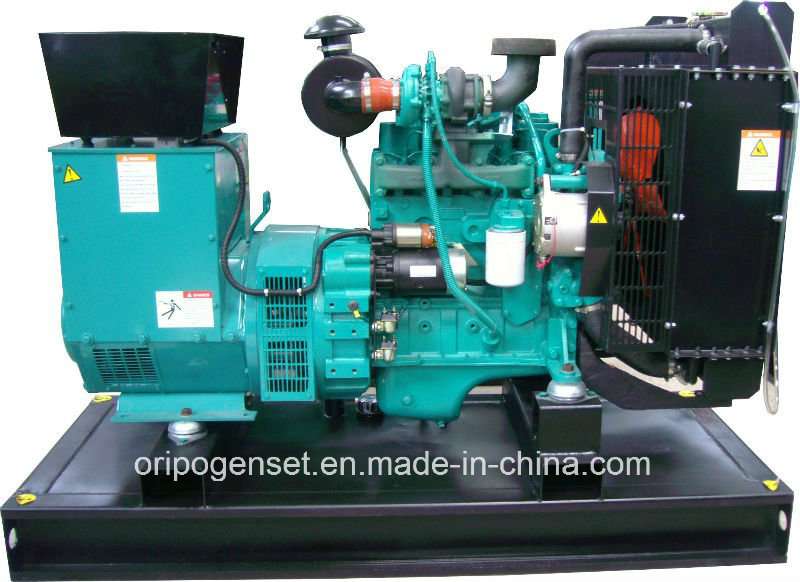

Generator For Sale Low Price of 60Hz standby 70kva 56kw Open / Silent Generator Set

Product Features:

1. With Brand New Cummins Engine.

2. 100% Copper Alternator Generator.

3. Good Quality and Rapid Service.

4. Lasted 8 Hours Running Fuel Tank.

5. Fuel Less Generator.

6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.

Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL60-70705663504BTA3.9-G2LTG224C16110
220/380V, AC, 60Hz, 0.8PF (lag), Three phase four wires

Generator set specifications

Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)215(13.75)
Starting Battery Capacity ,A/hrhhr80*2
Total Coolant Capacity ,L24
Fuel Capacity (base tank),LN/A

Engine Data

Model4BTA3.9-G2
TypeIn-line 4 Cylinder,4 Cycle
Displacement ,L3.9
Compression Ration16.5:1
AspirationTurbo
Fuel SystemA Type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)102*120
Rated Speed ,rpm1800
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L16.4
Coolant Capacity, L24

Alternator Data

Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%

Exhaust System

Exhaust air flow14.8m3/min
Exhaust Temperature  497ºC
Max Back Pressure 10kPa

Air Intake System

Max Intake Restriction6.2kPa
Burning Capacity5.9m3/min
Air Flow158m3/min

Lubricant System

Total Lubricant Capacity16.4L
Lubricant Consumption4g/kwh
Engine Oil Tank Capacity14.3L
Oil Pressure at Rated Speed350kPa

Cooling System

Total Coolant Capacity24L
Thermostat83-95ºC
Max Water Temperature100ºC

Company Profile:



Location:

Address: No.6 Front row of Chihua Industrial Zone, Chencun Town, Shunde District, Foshan City, Guangdong Province, China.

Contact person: Ben Lee        Tel: +86-18923200499
Prod Model: ocl60-70
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 60 Hz
Standby Power: 70kVA / 56kw
Rated Voltage: 220/380V
Rated Current: 90A
Air Intake System: Turbocharged
Start System: Electric Start with Battery Charger
Type: Micro-Computer Control Automatic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Speed: 1500/1800 Rpm
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
