Prime or Standby Power Electric Generator 360kw-550kw

Prime or Standby Power Electric Generator 360kw-550kw
Price: US $ 5999/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Electric Standby Generator 360-550kw/450-680kVA (FD5 Series)
Specification:
Model series: Electric Standby Generator 360-550kw/450-680kVA (2 years warranty-FD5 Series)
Range of power: From 360kw to 550kw, 190-690V
Usage: Make Electrical
Phase: Three Phase
Certificate: Has passed CE, ISO9001: 2008
Export Markets: Global
Insulation class: H.
Warranty period:
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.

Accordant Standard:
GB755 National Standard for Rotating Electrical Machine
IEC60034 (International Electrotechnical Commission)
BS5000, VDE0530, CSAC22.2-100 International Standard.

Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.

Raw material:
1. Copper wire has passed UL certified class 200.
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper).
4. Epoxy Resin from ALTANA in Germany
5. Low iron-loss silicon steel is BS470 from Shanghai BAOSTEEL GROUP

Product Description

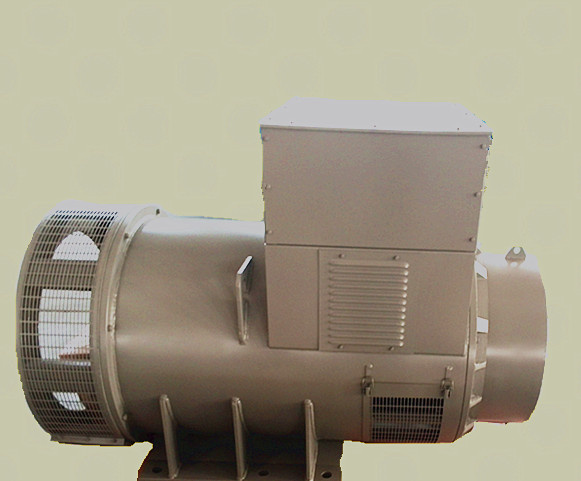

FD5 brushless AC alternator, the range of power from 360kw to 550kw.
It includes FD5S, FD5M, FD5MP, FD5LS, FD5L, FD5LP.
3 phase, 4 pole, 50Hz/60Hz, 1500rpm/1800rpm, 190-690V.
*FD5MP are only 6 ends out, so parallel-star connection is not available.

Standard Feature:
1: Single or double bearings are available, options for all kinds of adaptors and disc plates
2: 12-end reconnectable winding terminals to get different voltages
3: Standard "H" insulation class
4: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
5: Standard sealed maintenance-free bearings
6: Standard IP23 protection, optional severe environment protection
7: Optional PMG in excitation system.

Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones
*Extended range voltage can be got from single windings or from 12-leads adjusted

Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%.
2.2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load.
3. Faraday alternators can function in parallel among themselves.
4. Radio interference suppression.

Options:
1. Winding RTD and bearing RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4. Air filter
5. Droop CT
          Item         FD5 Three-phase Industry Alternators
            50Hz(1500Rpm) 60Hz(1800Rpm)
Voltage(V) Class H(125k) Class H(125k)
Star-Series 380 400 415 440 460 480
  Star-Parallet 190 200 208 220 230 240
Delta-series 220 230 240 254 266 277
FD5S-4 Rated Capacity(kva) 450 450 450 550 563 581
  Rated Power(kw) 360 360 360 440 450 465
  Efficiency(%) 93.8 94.1 94.3 93.9 93.3 93.4
FD5M-4 Rated Capacity(kva) 500 500 500 575 594 625
  Rated Power (kw) 400 400 400 460 475 500
  Efficiency    (%) 94.1 94.4 94.6 94.2 94.4 94.6
FD5MP-4 Rated Capacity(kva) 563 563 563 650 663 670
  Rated Power (kw) 450 450 450 520 530 536
  Efficiency    (%) 94.7 94.9 95 94 94.2 94.3
FD5LS-4 Rated Capacity(kva) 600 600 600 713 731 750
  Rated Power (kw) 480 480 480 570 584 600
  Efficiency    (%) 94.7 94.9 95 94.9 95.0 95
FD5L-4 Rated Capacity(kva) 625 625 625 740 780 800
  Rated Power (kw) 500 500 500 592 624 640
  Efficiency    (%) 94.6 94.9 95.0 94.8 94.9 95.1
FD5LP-4 Rated Capacity(kva) 688 688 688 775 800 825
  Rated Power (kw) 550 550 550 620 640 660
  Efficiency    (%) 94.6 95.0 95.1 94.8 94.9 94.9

Prod Model: eletricl generator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50/60Hz
Bearing Number: Single or Double
Type: Alternator, Generator
With world-leading technology and advanced management experience in operation, Wuxi Faraday Alternators Ltd is cooperating with American Basler Electric Company in excited system, being professionally engaged in the production and sales of "FARADAY" alternators, power ranged from 6.5kw to 2000kw.

BUSINESS PRINCIPLE:Carving out with integrity to pursue employee satisfaction, customer satisfaction as well as society satisfaction for life

DEVELOPMENT STRATEGY:Guaranteeing quality with criterion, building brand by quality, developing with brand

MANAGEMENT STAFF:Our senior management staffs are all professional talents who have ever worked in multinational company for so many years in alternators' production and sales, with extensive experience of marketing and service, production, material supplied chain management and quality control system.

PRODUCT FEATURE:Cooperating with American Basler Electric Co., innovating under the world-leading technology combined with the feedback from actual practice:Overcoming the AVR shortage of the usual domestic alternator, reasonable design, compact overall dimension, light weight, class "H" of all stators and rotors' insulation, stable and reliable even during bad working condition, etc., with patent registered already.

CUSTOMER SUPPORT:We have an excellent service and industry solution team who have been engaged in alternator field for over ten years, we can assure customers that complaint or help will get swift response, within 24 hours to be on the spot in Jiangsu province and 48 hours in nationwide is available if necessary.

CORE COMPETENCE:Topping employee, advanced ideas, leading technology, reliable quality and timely service are our core competence.
