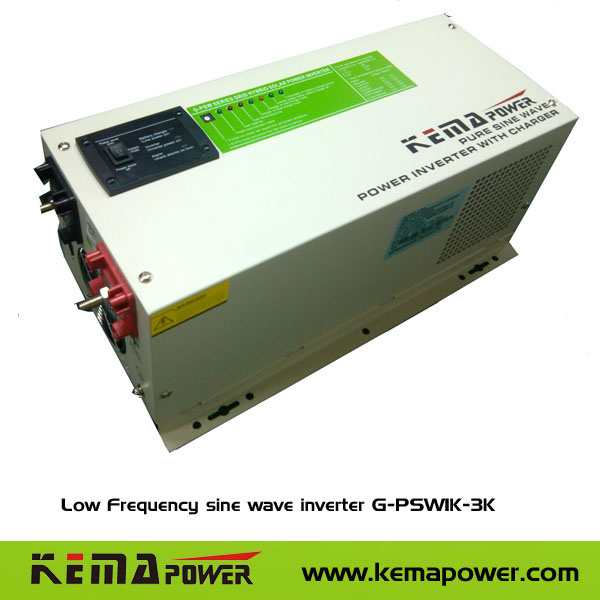

1. Low frequency pure sine wave Grid Hybrid Off Grid Power Inverter
2. Selectable Grid power First or Solar Power First (battery power First )
3. Transfer Time 10ms. Computer will not shut off when Mains off suddently.
4. Digital control Three stage charger, improve battery life
5. With Battery Selector for charge of diffreent battery
6. Power saver Function ( Stand by)
7. High Power Factor0.9-1
8. Low idle current to reduce energy consumption
9. Low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC
10. Big charge current, 35A-75AMP for different mode
11. Back-Feed Protection
12. Full protection, short circuit, Overload, over Temp., Battery low/high Protection
13. Fault recovery
14. LED display and alarm
15. Remove control solution
16. RS232 communication function optional for LED Type
|
Item |
Model |
G-PSW-1K |
G-PSW 2K |
G-PSW3K |
|
Capacity |
VA / Watts |
1KVA/1KW |
2KVA/2KW |
3KVA/3KW |
|
Surge rating (10s) |
3KVA |
6KVA |
9KVA |
|
Efficiency |
>95% under AC mode,>88% under DC mode |
|
Power Factor |
0.9~1.0 |
|
Input |
Normal voltage |
220VAC/110V |
|
220V Voltage range |
184-270V+-4% |
|
110V Voltage range |
85-150V+-4% |
|
Frequency range |
50Hz/60HZ -3 +5 Hz (Auto detection) |
|
Output |
Voltage (V) |
220V/110V+-10% |
|
Frequency (Hz) |
50Hz/60HZ +-0.3 Hz |
|
Wave form |
Pure Sine Wave |
|
bypass without Battery |
yes |
|
UPS Mode |
|
Grid power first. Battery power ( Solar Power) as backup |
|
Solar inverter Mode |
|
Solar Power First, Grid power as Backup |
|
Transfer Time |
less than 10 ms (typical) |
|
Overload capacity |
DC Mode(SMPS load) |
(110%
(125%
Load>150% ±10% for 20s |
|
AC Mode(SMPS load) |
by breaker |
|
Protection |
Overload |
Current limit under DC mode ,Breaker under AC mode |
|
Battery Protection |
Over charge, Over discharge,DC Breaker,Alarm |
|
Over Temperature |
Variable speed fan,LED lighting and alarm |
|
Back-Feed Protection |
yes |
|
short Circuit. |
by breaker.Faul after 10 secs |
|
Battery/Charger |
AC input |
95-127V, 194(164)--243V |
|
DC input |
12VDC /24VDC or 48VDC,external Battery |
|
Charge Voltage |
for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple |
|
Charger Current |
12-75AMP difference for different mode |
|
Charge Manage |
digital control,Three stage charger |
|
Display |
LED |
Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on |
|
Audible Alarm |
Battery Low,Battery High,Over Temp. Over load,Fail,Over charge |
|
Optional |
RS232 Communication,SNMP Net Agent,Remote Control |
|
Power Saver |
below 25W when enabled.loading checking 2 time/sec. |
|
Working Environment |
Temperature |
0°C to 40°C |
|
Noise |
60dB max |
|
Humidity |
5% to 95% |
|
Package |
Carton |
Carton |
Carton |
|
Package Size |
WxDxH (mm) |
590*335*320 |
590*335*320 |
590*335*320 |
|
Gross Weight |
|
20 |
22 |
26 |
|
ATTENTION |
the inverter do not build in solar charger controller. |
