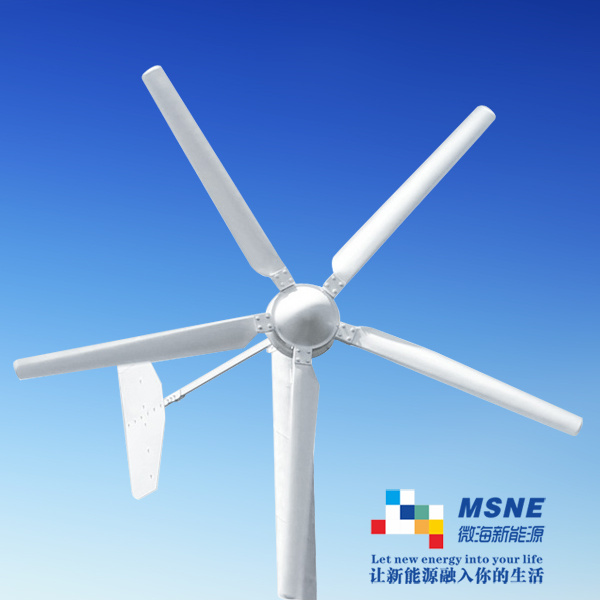

Home Generator Products Power House Generator with Stable Wind Turbine Blades (MS-WT-3000)

Power House Generator with Stable Wind Turbine Blades (MS-WT-3000)

Power House Generator with Stable Wind Turbine Blades (MS-WT-3000)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
5000W Permanent magnet Wind turbine




Advantages
1. Low start-up wind speed at Start-up 0.2m/s-0.4m/s and creates power at low speed of 1.3m/s-1.8m/s
(1). Equipped with Permanent magnet instead of iron core, and easier to start up than the other turbines.
(2). No cogging effect due to the greatest extended design

2. Typhoon resistance
(1). Multiple-electronic, mechanical braking
(2). Protected and still working due to Self-developed national patented technology without any braking devices

3. Lower noise
(1)Span-wise section and the best blade shape meet with aerodynamic theory.
(2). Lowest noise that less than 30db within 10m when under the highest rotation due to the silencing wing.

4. Anti-corrosion, sand storm and anti-strike
(1). Aviation blade molded under high pressure and never rust in severe environment.
(2). With 150HB all-metal blade, there will be no denting, shattering and no breakage when meeting with struck!

5. Without stalling and the blade is thin & light
(1). Light&Thin blade makes the higher rotation speed and reaches 2200 cycles/minute without stalling
(2). Blade for 400W is only 3mm in thickness, while the other brand's is 20mm. The weight of blade is only 500g, while the other brand's is 830g.

6. Anti-thunder and lighting
(1). Metal conduction body, make sure the reliable protective performance against lighting.
(2). With patented metal duralumin blade, therefore no burning out, no breaking apart and operating normally when meeting with lightning.
Parameter(3000w)
Rated Output 3000W
Peak Output 4500W
Rated Voltage(V) 220V
Start-up Speed(m/s) 0.2-0.4
Cut-in Speed(m/s) 1.8
Working Wind Speed(m/s) 1.8-25
Rated Wind Speed(m/s) 11
Survival Max.Wind(m/s) 60
Over-speed Control mechanical governor and electromagnetic braking
Rated Rotor Speed(RPM) 290
Rated Charging Current(A) 13.6
Noise <20db(5m behind turbine@5m/s wind speed)
Working Temp.Range -30--50
No.of Blades 5
Blades Material polymer materials
Rotor Diameter(m) 4.2
Generator Material 45#steel
Generator Type free from slot effect,iron core and reluctance
Net Weight(KGS) 91
Productor life 20
Warranty(years) 5
Prod Model: MS-WT-3000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Net Weight: 91
Generator Type: Permanent Magnetic Generator Without Cogging Effec
Approved Certificate: CE Certificate
Rotating Shaft: Horizontal
Number Of Blade: 5
Stress Way Of Blade: Lift and Drag
The company has been devoted to the development and application of modern technology in such energy domains as:

1. 40% savings in fuel
2. Complete solutions to oceanic and island Wind Power generation.
A breakthrough by engaging the useage of 70% of land surface for wind power; therefore securing sufficient fuel supply for bio-energy projects.
3. In compliance with the sectoral principals of high marketability and socialisation, the company has established a highly efficient operational mode, integrating with technology capital and production force.
4. It has focused on building up a high-end new type of sectoral platform that will penetrate the global market. This will create a high industrial concentration from the start of an original technical creation to the application at the end, thus achieving an unprecedented efficiency.

The sector developed by the company contains an urgent multi-billion dollar worth of market demand

The company will play an important role in achieving related national strategy in the sustainability of environmental production and industrial transfer; as well as the application of new energy resources.

The company will enhance and introduce fast reforms in general industries, agricultural, service industries and civil use.

Great breakthroughs have been realised by the company in the areas of wind power generation such as

1. start-up and power generation from a small breeze
2. high resistance to strong wind
3. anti-erosion
4. no sound
5. light body components

All of the above innovations are cutting edge in the world market, providing premises for broad application of wind power generation, for instance:

1. Island and remote regions where electricity supply remains a problem.
2. Wind power generation is applicable in areas where there is a daily wind force of 3 to 5 degrees.
3. Low noise wind power generation can be implemented in residential areas.
4. Electricity cost will be minimized by a great degree in hotels, tourist spots and other business premises.
5. Under the state `s distributed power generation policy, the company offers a low risk and high return investment opportunity.
6. Our products provide highly efficient and smooth process to achieve the policy target of energy saving enviroment protection.

The R & D, manufacturing, marketing, and service of wind power projects are undertaken and implemented by Microsea New Energy Investment Company., Ltd, which has a high level research and manufacturing force under a good management team. It has possesed four technology patents.
