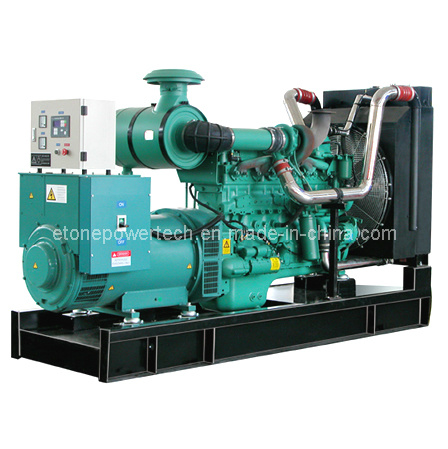

Power generator 550kVA
Model: ETCG550
Engine Mode: Cummins KTA19-G4
Prime Power: 500kVA/400KW

Options for the diesel generator set:
Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four lines

Generator set feature:
Engine Features:
* Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances.
* Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.

Diesel Engine Type:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank

The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%

AC Alternator
* Standard brands: Etone, Leroy Somer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* insulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50

Control System
* Standard matching brands: Smartgen and Comap
* Optional brands: Harson, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional)

Item	Frequency	Prime		standby		Engine Model	Brand	Dimension	Open type
Item	HZ	KVA	KW	KVA	KW	Engine Model	Brand	LWH	Weight(kg)
ETCG25	50	23	18	25	20	4B3.9-G1/G2	Cummins	17007501200	950
ETCG30	50	28	22	30	24	4B3.9-G1/G2	Cummins	17007501200	980
ETCG45	50	40	32	45	36	4BT3.9-G1/G2	Cummins	18007501200	1150
ETCG56	50	50	40	56	45	4BT3.9-G2	Cummins	18007501200	1200
ETCG63	50	55	45	63	50	4BTA3.9-G2	Cummins	18007501200	1250
ETCG100	50	90	72	100	80	6BT5.9-G2	Cummins	22508001350	1350
ETCG115	50	103	82	115	92	6BT5.9-G2	Cummins	22508001350	1390
ETCG138	50	125	100	138	110	6BTA5.9-G2	Cummins	22508001350	1420
ETCG150	50	138	110	150	120	6BTAA5.9-G2	Cummins	24008001350	1480
ETCG178	50	160	128	178	142	6CTA8.3-G2	Cummins	24508501400	1880
ETCG200	50	183	146	200	160	6CTA8.3-G2	Cummins	24508501400	1950
ETCG225	50	200	160	225	180	6CTAA8.3-G2	Cummins	27009501450	2000
ETCG250	50	225	180	250	200	6LTAA8.9-G2	Cummins	27009501450	2250
ETCG275	50	250	200	275	220	6LTAA8.9-G2	Cummins	27009501450	2250
ETCG275	50	250	200	275	220	MTA11-G2A	Cummins	27009501450	2450
ETCG350	50	323	250	350	280	MTAA11-G3	Cummins	300010001500	2500
ETCG275	50	250	200	275	220	NT855-GA	Cummins	305010001700	2700
ETCG313	50	275	220	313	250	NTA855-G1A	Cummins	310010001750	2750
ETCG350	50	323	250	350	280	NTA855-G1B	Cummins	310010501750	2770
ETCG375	50	344	275	375	300	NTA855-G2A	Cummins	315011502000	2860
ETCG388	50	350	280	388	310	NT855-G4	Cummins	315011502000	3380
ETCG450	50	400	320	450	360	NTAA855-G7	Cummins	315011502000	3380
ETCG413	50	375	300	413	330	KTA19-G2	Cummins	320012502015	3650
ETCG500	50	450	260	500	400	KTA19-G3	Cummins	320012502015	3350
ETCG550	50	500	400	550	440	KTA19-G4	Cummins	320012502050	4200
ETCG630	50	525	450	630	500	KTAA19-G5	Cummins	355015502150	5000
ETCG650	50	575	460	650	520	KTA19-G8	Cummins	355015502050	5150
ETCG688	50	625	500	688	550	KTAA19-G6A	Cummins	365015702150	5550
ETCG825	50	750	600	825	660	KTA38-G2	Cummins	440018002300	7750
ETCG888	50	800	640	888	710	KTA38-G2B	Cummins	440018002300	7750
ETCG1000	50	913	730	1000	800	KTA38-G2A	Cummins	440018002300	7840
ETCG1100	50	1000	800	1100	880	KTA38-G5	Cummins	440018002300	5350
ETCG1250	50	1125	900	1250	1000	KTA38-G9	Cummins	440018002300	7780
ETCG1375	50	1250	1000	1375	1100	QSK38-G5	Cummins	480020502300	8550
ETCG1400	50	1250	1000	1400	1120	KTA50-G3	Cummins	507020752200	9980
ETCG1625	50	1375	1200	1625	1300	KTA50-G8	Cummins	534021002330	10500

Prod Model:	ETCG550
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	25kVA-1625kVA
Stroke:	Four Stroke
Type:	Self-Starting Diesel Generator
Cooling Method:	Water Cooling
Installation Method:	Fixed
Output Type:	AC Three Phase
Speed:	1500
