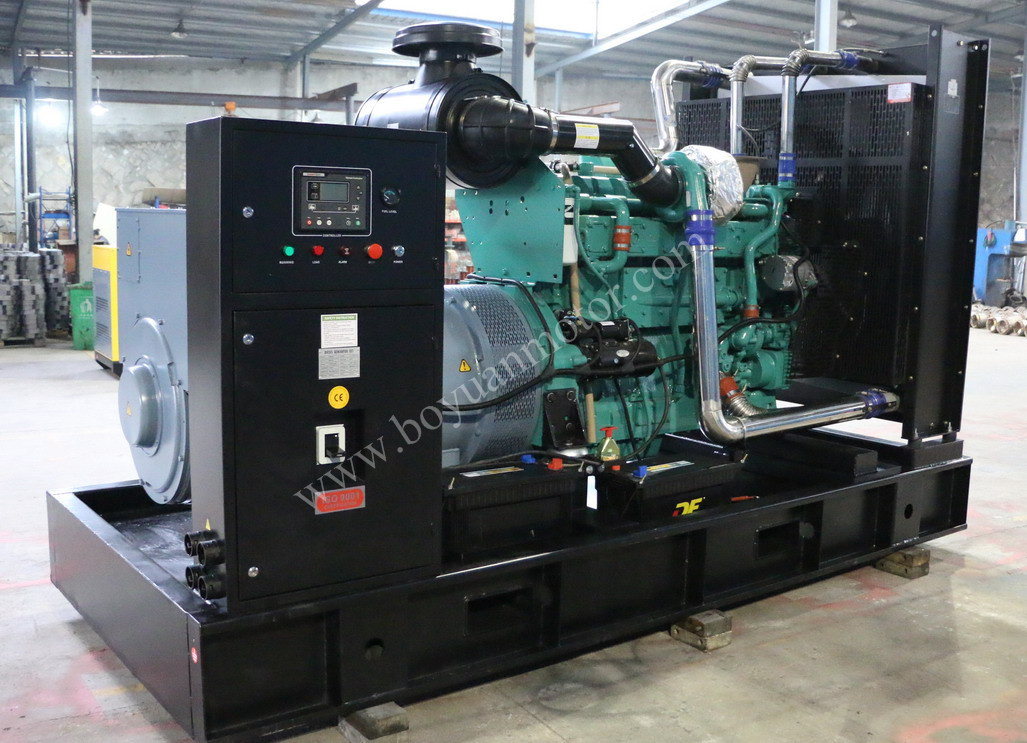

Home Generator Products Power Generator 300kw/375kVA with Cummins Engine, ATS, Battery

Power Generator 300kw/375kVA with Cummins Engine, ATS, Battery

Power Generator 300kw/375kVA with Cummins Engine, ATS, Battery
Price: US $ 26260/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Cummins Silent Power Diesel Generator set From 20kw to 1000kw (GF3)

Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Scope of supply

Engine specification
1. 20kw-1000kw CUMMINS engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

Alternator: Stamford
Option with: Marathon, Lorysomer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof

Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices


Our service quality assurance:
1)Before-sale Service: we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.


Genset Model
Prime PowerFuel LubricationEngine ModelFuel Consumption
(g/kwh)
Bore X StrokeDimension (mm)
L x W x H
KWKVA
GF3-20202514B3.9-G≤ 229102*1201800*800*1200
GF3-5656700.926BT5.9-G≤ 215102*1202200*960*1400
GF3-1201201500.846CTA8.3-G2≤ 210114*1352600*1060*1700
GF3-1601602000.846CTAA8.3-G2≤ 210114*1352900*1100*1800
GF3-2002002500.846LTAA8.9-G2≤ 210114*1352900*1100*1800
GF3-2251802250.89NT855-GA≤ 214140*152  3100*1000*1600
GF3-2502002500.89NT855-GA≤ 214140*1523100*1060*1600
GF3-3753003750.7NTAA855-G7≤ 206140*1523100*1060*1600
GF3-5004005001.02KTA19-G4≤ 203159*159  3700*1400*2000
GF3-6255006251.37KTAA19-G6A≤ 206159*159  3700*1400*2300
GF3-7506007501.14KTA38-G2≤ 214159*159  4600*1700*2500
GF3-9007209001.08KTA38-G2A≤ 215159*159  4600*1700*2500
GF3-100080010001.07KTA38-G5≤ 202159*159  4900*1900*2500

Prod Model: GFS-300C
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Prime Power Range: 20kw~1000kw
Alternator: Leroy Somer or Stamford
Instrument For Adjusting Speed: Electrical
Cylinder Amount: 4
Controller: Smartgen/Deepsea
Protection Class: IP22 / IP23
Rated Voltage: 127/220V; 110V/220V; 220V/380V; 240V/400V
Warranty: 1 Year or 1200 Hours
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Speed: 1500rpm/1800rpm
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.

BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.

BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.

All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.

As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers' request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory

Warranty policy

The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
