Power Gasification Rice Husk Straw Syngas Wood Chip Biomass Generator

Power Gasification Rice Husk Straw Syngas Wood Chip Biomass Generator
Price: US $ 8390/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
biomass generator
Worksite requirements for biomass generator

The worksite needs to meet following basic requirements:
a)  Ambient temperature between -40ºC~45ºC;
b)  Relative humidity less than 90%(35ºC);
c)  Site elevation not higher than 2000m;
d)  For outdoor installation, simple rain shelter is required.

The engine is high,/low temperature cycle requires the use of softened water.Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc..Its main index requirements are as follows:
hardness:0.7~5.3me/L ;chloride ion content:<150mg/L;PH≤7~8.5


Fuel gas requirement for biomass generator

The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
Temperature of natural gas ≤40ºC;
Pressure of natural gas 3~10kPa, velocity of pressure≤ 1kPa/min;
H2S≤200mg/Nm3;
 NH320mg/Nm3
 Tar Content 20%mg/Nm3
 Impurities particle size≤5μm; impurity content≤30mg/Nm3;
Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3

If fuel gas contains higher quantity of sulfur and ammonia,it not only corrodes the pole of spark plug seriously,but also increases the acid value,which corrodes internal parts of genset and corrodes the genset with precipitates.


Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.?
1. over 15 years produced gas/diesel generator experience;

2. main products including diesel engines, biomass generator sets, natural gas generator sets,
biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw ;


3. Our workshop covering more than 40000 square meters, techincal engineer and afterservice more than 100 persons.

4. CE,ISO9001:2008,ISO2001:1400 etc.certificats approve and passed many patents.


5. export many countries in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,
Indonesia,and with some Africa countries etc.


6. we have some cooperative partners :like water removal system,H2S removal system,gasified
equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
Biomass generator Service :

1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.

(2)According to the situation of site we can supply you many drawings like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.


2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.

(2)We will debug the generator set till it can generate power successfully.

(3)We will also supply a technical training to the operators.Or you can send your staff to
our company.We can train them till they can operate.


3.After-sale service:
(1)in our company, different people is in charge of different area,we will response periodically and support you technical service free of charge,

(2)For the quality problem, we will service for you free of charge during the guarantee period.

(3)One year guarantee period and lifetime service.

(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.

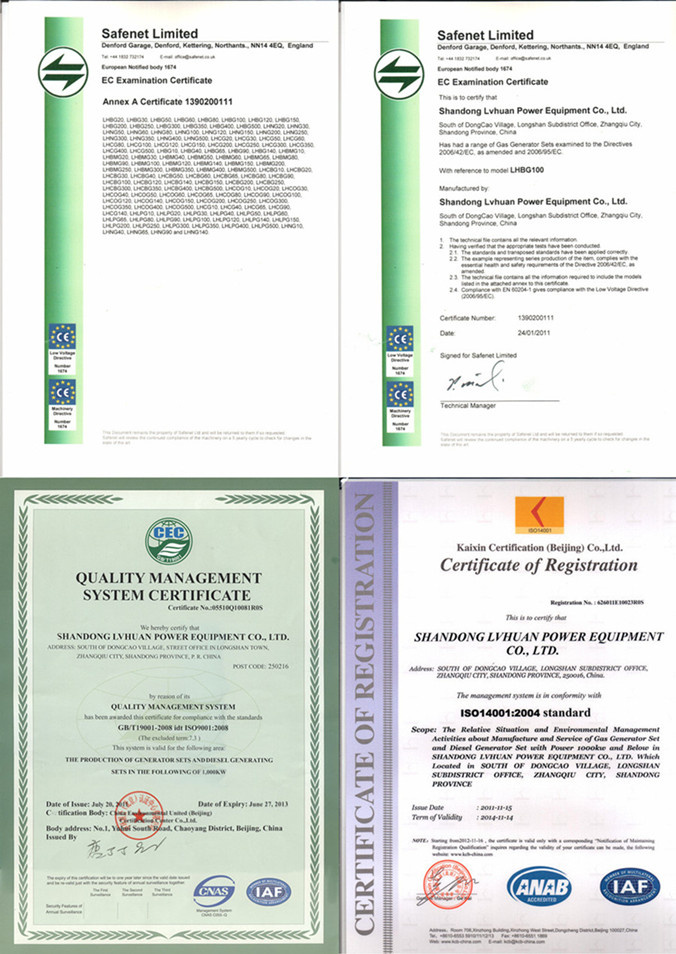

biomass generator certificates:

biomass generator  parameter
Model Number (Engine Type)LHBMG10-600
Brand NameLVHUAN
Prime Power/Standby Power10kw-600kw
Rated Speed1500/1800RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant consumption≤1.0g/kw.h
Engine Capacity12.90 L
Cylinder Number2/4/6/8/12
Cylinder Bore100-190mm
Stroke105-210mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorChinese Stamford
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size2850x1100x1750mm
Weight1900kg

Prod Model: LHBMG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Biomass Generator
Frequency: 50Hz/60Hz
Color: Customization
Heat Consumption: 9.8mj/Kw.H
Certificates: CE, ISO9001, ISO14001
Warranty: 1 Year or 1000 Hours
Gas Source: Biomass Gas
Control System: Comap
Start Mode: DC 24V Electrical Motor
Cooling Mode: Water Cooling
Power: 10kw-600kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
