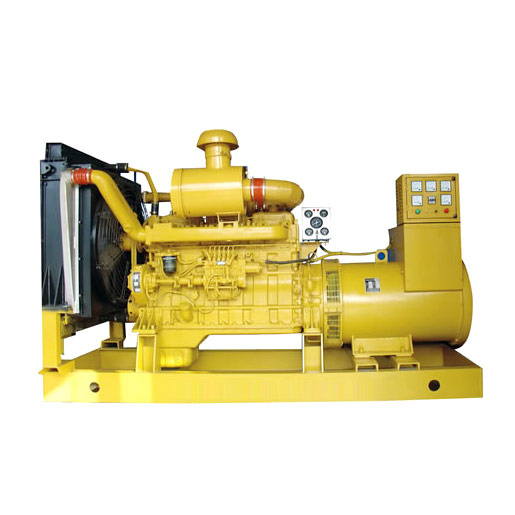

Power diesel generator
Alternator
Alternator model code: TWG4.1CB /MP-180-4
Frequency (Hz): 50
Rated output power (kw/KVA): 160/200
Rated current (AC) (a): 304
Rated voltage (v): 380/230
Power factor (cosφ ): 0.8
Remarks:
Our generator set can conform to your requirements as followed
Specifications:
Frequency regulation +/-. 5 Hz
Soft start, for low inrush
No belts or gears
Protected drive motor:
Over current, overtemp, motor overload, phase to phase and phase to ground short circuit power supply under voltage and phase loss generator output circuit breaker.
Display reading:
Motor speed, voltage, frequency and current and output kw.
Package in weather-proof, vandal resistant container. Ventilated with dust filtration, 50 degrees c operating temperature acceptable for continuous full load duty.
Completely self contained, external cable terminations for input and output power. Unit includes spare parts kit for maintenance.
ENGINE
Engine Model Code: 6135AZLD
Engine Type: 6-Cylinder, 4-StrokesWater-Cooled Diesel Engine
Output Power [KW]: 227
Rotation Speed (RPM): 1500
Speed Regulation: Mechanical
Fuel Consumption (L/h): 53.6
Lube Capacity (L): 27
GENERATOR SET
Starting Method: Electric Starting
Insulation Class: H, BRUSHLESS
Output: Tri-Phase, 4-Lines
Voltage Regulation: AVR
Dimension (L/W/H) (mm): 2850/1030/1650
Net Weight (kg): 3850
Medol of |
Ratedoutput |
Diesel engine |
Consumption |
Overal dimension of diesel genset and weight |
Generator |
Capacity |
Power |
Current |
Model |
Ratedpower |
Diesel oil |
Lubrication oil |
Lxwxh(mm) |
Net weight |
(KVA) |
(KW) |
(A) |
|
(kw) |
(g/kw. h) |
(g/kw. h) |
|
(kg) |
GF-50 |
62.5 |
50 |
90.2 |
4135D-1 |
64.7 |
232.5 |
2.04 |
2100× 760× 1100 |
1650 |
GF-64 |
80 |
64 |
115 |
4135AD |
80.9 |
232.5 |
2.04 |
2250× 760× 1100 |
1850 |
GF-75 |
93.7 |
75 |
135 |
4135AZD-1 |
99 |
225 |
2.04 |
2500× 900× 1300 |
1950 |
GF-75 |
93.7 |
75 |
135 |
6135D-3 |
97.1 |
229.8 |
1.47 |
2600× 900× 1300 |
2050 |
GF-80 |
100 |
80 |
144 |
6135D-3 |
97.1 |
229.8 |
1.47 |
2600× 900× 1300 |
2080 |
GF-90 |
112.5 |
90 |
162 |
4135AZD |
108 |
225 |
2.01 |
2500× 900× 1300 |
1950 |
GF-90 |
112.5 |
90 |
160 |
6135AD |
121.4 |
229.8 |
1.65 |
2650× 900× 1300 |
2100 |
GF-100 |
125 |
100 |
180 |
6135AD |
121.4 |
229.8 |
1.65 |
2600× 900× 1300 |
2150 |
GF-120 |
150 |
120 |
216 |
6135JZD |
154 |
225.7 |
1.65 |
2700× 900× 1500 |
2250 |
GF-150 |
187.5 |
150 |
271 |
6135AZD-1 |
170.5 |
225.7 |
1.65 |
2750× 900× 1500 |
2350 |
GF-150 |
187.5 |
150 |
271 |
G128ZD |
170.5 |
220 |
1.6 |
2750× 900× 1500 |
2350 |
GF-180 |
225 |
180 |
324 |
G128ZLD |
206 |
225 |
1.6 |
2800× 1120× 1500 |
2450 |
GF-200 |
250 |
200 |
360 |
G128ZLD2 |
227 |
225 |
1.6 |
2800× 1120× 1800 |
2850 |
GF-220 |
275 |
220 |
396 |
G128ZLD1 |
260 |
225 |
1.65 |
2900× 1120× 1500 |
2950 |
GFB-250 |
312.5 |
250 |
450 |
G128ZLD1 |
260 |
225 |
1.65 |
2900× 1120× 1500 |
3000 |
GF-250 |
312.5 |
250 |
450 |
G128ZLD11 |
308 |
225 |
1.65 |
2900× 1120× 1500 |
3050 |
GFB-300 |
375 |
300 |
540 |
G128ZLD11 |
308 |
225 |
1.65 |
3100× 1120× 1500 |
3250 |
Model of |
Ratedoutput |
Diesel engine |
Consumption |
Overal dimension of diesel genset and weight |
Generator |
Capacity |
Power |
Current |
Model |
Ratedpower |
Diesel oil |
Lubrication oil |
Lxwxh(mm) |
Net weight |
(KVA) |
(KW) |
(A) |
|
(kw) |
(g/kw. h) |
(g/kw. h) |
|
(kg) |
GF-150 |
187.5 |
150 |
271 |
12V135D |
194 |
229.8 |
1.6 |
3100× 1600× 1800 |
3150 |
GF-200 |
250 |
200 |
361 |
12V135AD |
242.7 |
229.8 |
1.65 |
3100× 1160× 1800 |
3200 |
GF-250 |
312.5 |
250 |
450 |
12V135JZD |
308 |
232.5 |
1.65 |
3200× 1260× 1800 |
3300 |
GF-300 |
375 |
300 |
540 |
12V135AZD |
330 |
229.8 |
1.65 |
3450× 1260× 1800 |
3450 |
GF-320 |
400 |
320 |
576 |
12V135AZLD |
373 |
232.6 |
1.7 |
3450× 1260× 1800 |
3600 |
GFB-350 |
438 |
350 |
630 |
12V135AZLD |
373 |
232.6 |
1.7 |
3450× 1260× 1950 |
3850 |
GF-400 |
500 |
400 |
720 |
12V135BZLD |
445.5 |
209 |
2 |
3600× 1460× 1950 |
4000 |
GF-450 |
563 |
450 |
810 |
12V135BZLD2 |
505 |
217 |
2 |
3700× 1460× 1950 |
4300 |
GF-500 |
625 |
500 |
900 |
12V135BZLD1 |
555 |
219 |
2 |
3750× 1460× 1950 |
4500 |
Shanghai Stanford Power Equipment Co., Ltd. is a professional manufacturer of 135 series diesel engines, 135 modified products and subsequent auxiliary products (diesel generating sets). In the business concept of People-oriented, our institution employs high-paying key technicians of all kinds, cultivates a strong technical team, and is kind to the employees to stimulate their passion at work. According to customer requirements, our institution is able to design different stationary, marine and power station diesel engines in line with the international standards.
Please feel free to contact us for further information.
