Product Advantage:

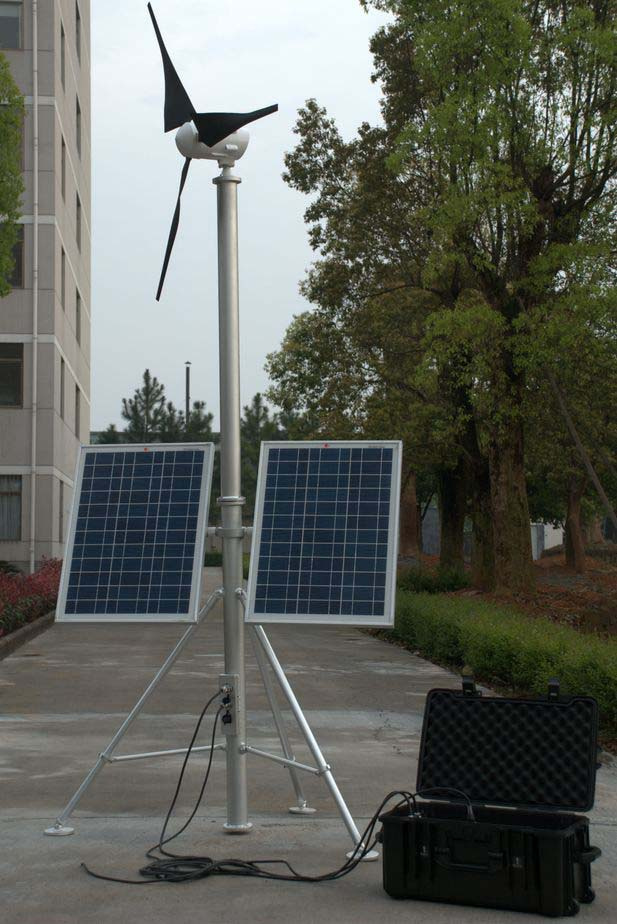

1.This portable wind and solar hybrid system include below parts:
400W wind turbine
50W solar panel x2PCS
Alumium Alloy tower
Inverter
Controller
ABS tool box
2. This system can be used charging for RV or the place lack of power . the light is weight , the powerhead only 7.5kgs and easy to install ,one person can install the system in 10mins .
|
TECHNICAL SPECIFICATION |
|
|
|
|
|
Item Number |
ALADDIN400 |
|
Rated Output |
400W , 24V OR 12V VDC |
|
Rotor Diameter |
1.3M |
|
Blade Quantity |
3pcs |
|
Start-up Wind Speed |
3m/s |
|
Cut-in wind Speed |
2.6m/s |
|
Rated Wind Speed |
12.5m/s |
|
Survial Wind Speed |
60m/s |
|
Turbine Weight |
7.5kgs |
Magic Wind Power Co., Ltd is one of the world's leading producter of small wind turbines, the point of company is the research of TAOS Wind Energy Studio since 1984, ZHL WIND Energy is our comany Chinese name. Magic Wind Power successfully developed new type wind generator of downwind passive yawing structure which discard the tail vane and any mechanical protection set to make structure more compacter and reliabler and reduce noise, and the ability of "catch" wind higher owing the lower yawing interia, Downwind passive yawing design would be a higher level for small wind turbine.
Magic Wind Power Co., Ltd pioneered new technologies to make renewable energy simple, whether you are looking to reduce your home electric bills or power at home, boat or business off the grid, we offer a range of wind power system to help you. We have successfully developed 5 different system: Battery- charging system ( off grid system ), grid-tied system (grid-connected system ), wind and solar hybrid system, heating system, water pumping system which are efficient, economical and running reliably in world.
Magic wind Power successfully developed creative regulator built-in microprocessor with unique programme to protect wind turbine and facilities in system from over-load, over-voltage, over-speed and any abnormal state reliably.
Magic Wind Power works at creating beau ideal, develops innovative wind power technology, contributes to ecology constrction in 21 Century...
