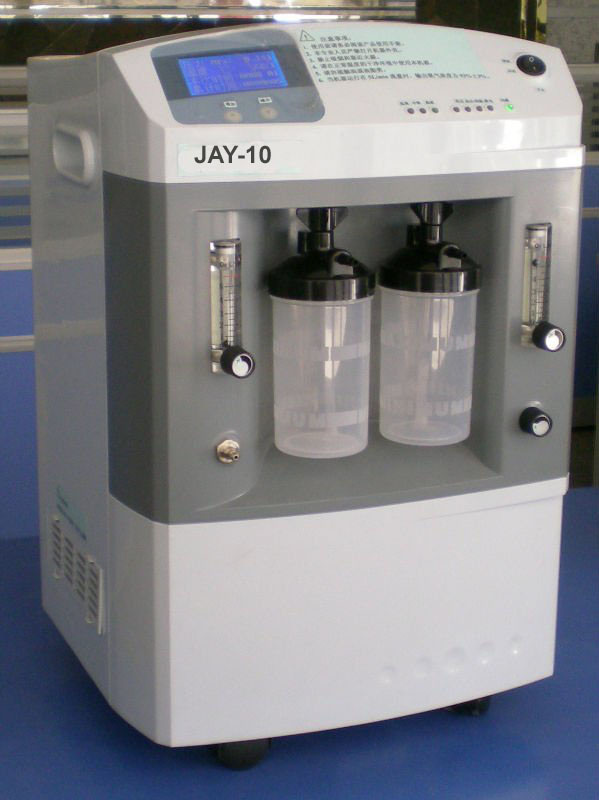

Model:JAY-10 Animal medical oxygen concentrator
Features:
1, PSA oxygen physical and economic security;
2,0-10 l / min adjustable oxygen concentration ≥ 90%;
3, large digital LCD screen display: machine operating pressure, operating temperature inside the
machine, the current working time, total working time, regular time;
4, the timing, since the end of the specified time, the machine automatically stops running;
5, import molecular sieve, wet bottle (relief threshold 6 PSI);
6, the oxygen concentration state of the display (OCSI);
7, temperature alarm, high and low pressure alarm, power failure alarm;
8, with a storage box.
9, increase the atomization power, (JAY-10W), can be connected to home ventilator use;
Technical Specification:
Rated Power (VA) | 500 |
Operating voltage (V / Hz) | AC220V±22V 50Hz±1Hz |
Flow (L / min) | 0-10 |
7Kpa backpressure flow (L / min) | 9.71-10.29 |
Oxygen concentration (V / V) | 93%±3% |
Outlet pressure (MPa) | ≤0.041 |
Machine noise (dB) | ≤50 |
Oxygen concentration status indicator (OCSI) | When the oxygen concentration of 82% or greater, the green indicator light; When the oxygen concentration is less than 82%, the red indicator light |
Total Weight (Kg) | 28 |
Dimensions (mm) | 365*375*600 |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
