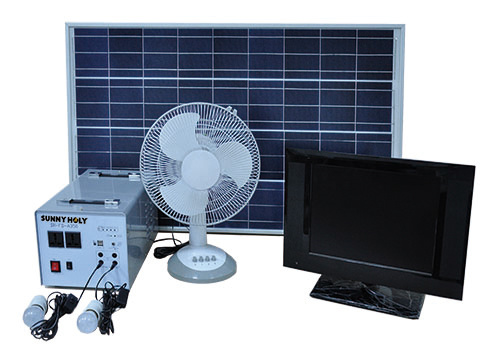

350W Portable Solar Generation System
The system is a small AC/DC Power Supply System which is designed for the farmers, herdsmen, outdoor camping, tourism etc. Easy to operate, convenient to carry. Controller, Inverter and battery are storage in control box.
Standard configuration:
mainframe *1 (including battery, controller, inverter)
90W polycrystalline solar panel *1
5W LED light *2
multi-plug USB charge wire *1
E27 wire with lamp socket and switch *2
Characteristics
cut off the power grid, used in the regions which is no power supply or the supply is not stable
reliable system, with complete protect function
wide applicability and used for varieties of electrical equipment
Unit
Technical Parameter
Solar panel
power
90W
working voltage
17.8V
working current
5.06A
material
polycrystalline silicon
net weight
7.50KG
size
670*960*35mm
gross weight
9.46KG
notice
the solar panel is in individual package
Lead-acid maintenance free battery
rated capacity
65Ah
rated voltage
12V
size
350*166*174mm
weight
22KG
notice
the battery should be charged at least 1 time every 3 months, at most once each 6 months, otherwise it's bag for the capacity and the lifetime of the battery .The switch should be turn off while it does not work in a long time.
controller
working voltage
12V
max charge current
6A
function
Protection against over charge, over discharge, over load, short circuit, battery polarity reversal, battery back discharge.
battery capacity display
25% 50% 75% 100%
indicator light status
green light on
full charged
green light twinkle
charging
red light on
power has connected
Inverter
rated power
500W
Input power
12V DC
output voltage
220V AC
output frequency
48-52HZ
output waveform
modified sine wave
green LED indicator
the green light on means the power of inverter is connected
mainframe(metal case)
including:
power switch: red *1
inverter switch: black *1
LED work status indicator: green *1, red *1
LED capacity indicator: red *4
inverter status indicator: green *1
sockets for 5V USB output *2
sockets for 12V output (5.5*2.5mm DC round socket) *4
multi purpose sockets *2
solar charge socket(5.5*2.1mm DC round socket)*1 maintenance free lead-acid battery
solar charge/discharge controller
500W modified sine wave inverter
time for loading electrical appliance
equipment
power and quantity
working time
total electric power
LED light
5W*2
45 hours
450W
DC12' fan
15W*1
30 hours
450W
DC14' LED TV
24W*1
19 hours
456W
DC 5V electrical appliance could be charged at the same time, for example: mobile phone.
fan
75W*1
6 hours
450W
21' TV
80W*1
5 hours
400W
PC
100W*1
4 hours
350W
DVD
20W*1
18 hours
360W
notice: those are individual working time for above electrical appliance.
Additional introduction
output capacity
455WH
charge time
10 hours
mainframe size
435*235*240mm
package size
595*285*360mm
gross weight of case
26.20KG
gross weight of case and solar panel
35.66KG
notice
please turn off the switch of inverter to save the battery power while you don't use AC equipment. Please don't disassemble the main case to avoid electric shock.
