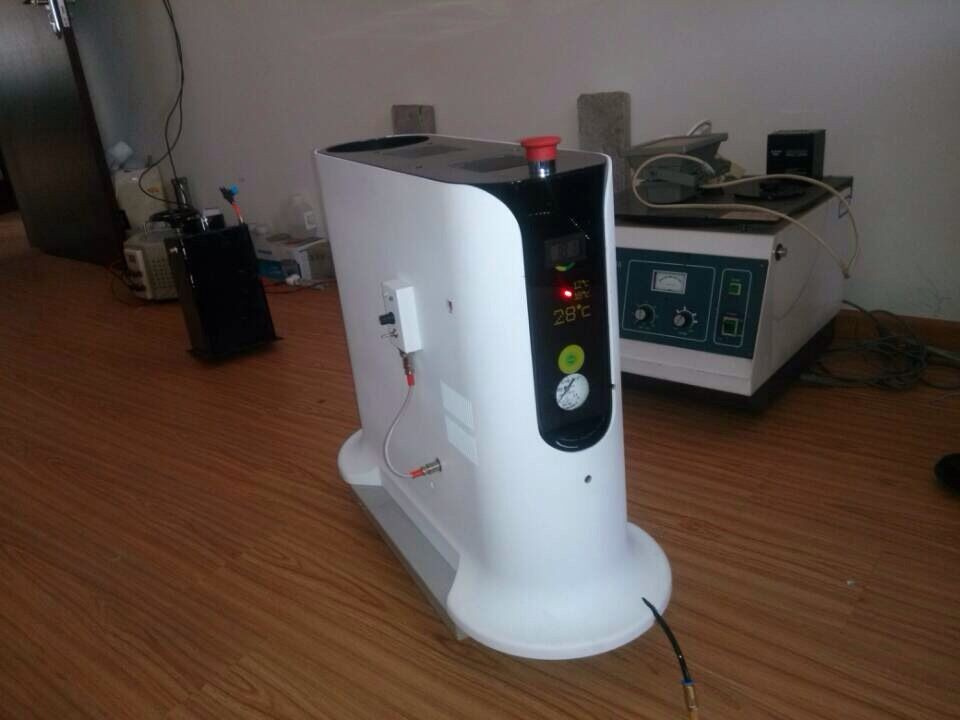

Portable Safe Hydrogen&Electricity Generator

Performance data above is just for reference, consumption should be considered.

Provide The Perfect Service For Motor Homes
The Product technology of passive energy supplying, heating, cooling provides many services, including the electricity, heating, hot water and cooling for the motor homes camping. One can choose the different specification of the system based on the actual demand to combine with the motor home in a perfect state.

Technical Overview

A hydrogen reaction can produce hydrogen and massive thermal energy, which can provide heating, hot water directly and cooling through the heat pump technology. Hydrogen runs proton exchange membrane hydrogen fuel cell. It can provide the power for the motor homes.


1. Power Supply--Hydrogen Fuel Cell Power Supply Technology

Proton Exchange Membrane Hydrogen Fuel Cell
A proton exchange membrane hydrogen fuel cell can produce power by a combination of hydrogen and the oxygen in the air through electrochemical reaction. The combination process is the inverse process of electrolysis of water. The emission is only the purified water. That is the reason why the proton exchange membrane hydrogen fuel cell is a very clean power generation assembly.

2. Heating and Cooling Supply-- use the reaction heat from chemical hydrogen reaction
We have researched and developed a new magnesium-water heating and cooling technology product in the motor homes based on the proprietary technology. This technology does not rely on the car's electrical power and the extra power supply.

Technical Features
1. Safe— Non-pressure and non-corrosive during the hydrogen production;
2. Passive— No extra power supply during the heating and cooling process;
3. Controllable— Power supply, heating and cooling can be controlled according to your needs;
4. High Efficiency— It is high efficiency, small size, low weight compared with the other power supply, heating and cooling equipments;
5. Low Cost— Reactant is recyclable which lower the usage cost;
6. Low Noise— No noise making during the power supply, heating and cooling process;
7. Convenience— It can extend the action radius and increase the fun without the limitation of campsite of the motor homes;


Performance Data(10KW for example):



Item Name Unit Result

1 Battery Power KW 10

2 Heat Supply KJ/h 123000


3 Heating Area 680
Heating Load Data W/ 50
Outdoor Temp º C -15
Inside Temp º C 18

4 Hot Water Supply Kg 735
Inlet Water Temp º C 15
Outlet Water Temp º C 55

5 Magnesium Consumption Kg/h 10
Magnesium hydroxide Generated Kg/h 22


Performance data above is just for reference, consumption should be considered.

cool-heat-electricity cogeneration data
equipment	theoretical size excluding  water tank (mm) Length x Width x Height	hot water supply(40ºC) (L/min)	hot wind supply ( kCal/min)	refrigerating capacity (hp)	Energy supply (kw)	Rated working time of every energy bottle  (h)
2kw system	600X400x500	3.8	116.6	2.5	2	7
3kw system	700X400X600	5.7	175	3.5	3	7
5kw system	900X500X600	9.5	291.5	5.7	5	7
10kw system	1200x500X700	19	583	11.8	10	7
