Product introduction

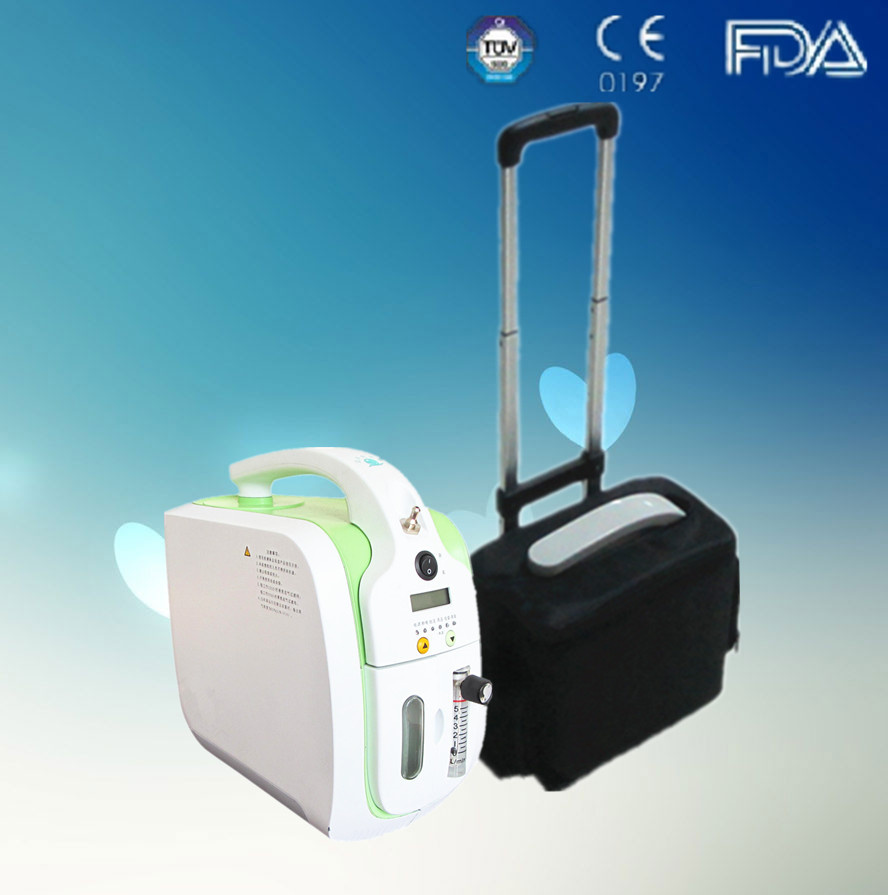

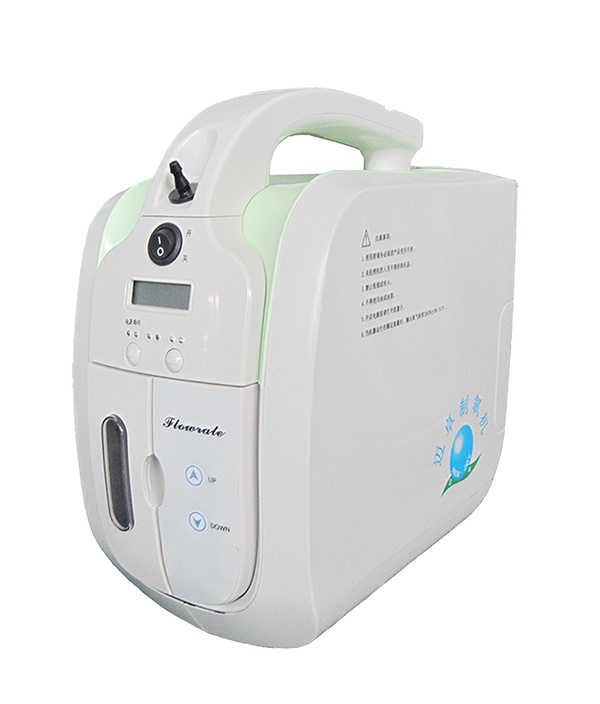

JAY-1 product adopt pressure swing adsorption principle, which can separate oxygen, nitrogen and other gas from the air, at constant temperature, as soon as power is connected, the oxygen that meets medical use standards can be separated from air constantly. Oxygen is generated by pure physical method. The concentrator can supply ONE patient with steady oxygen flowing out, safe and reliable, low cost, adjustable flow. The key parts of the concentrator adopt anti-tiring and anti-aging design, and the planned life of the whole generator reaches up to 20, 000 hours.
There is no influence on indoor oxygen percent during the generator operating
Technical Parameter
ModelJAY-1
Rated power (W)75
Operation voltage (V/Hz)AC220± 10% 50± 1
AC110± 10% 60± 1
Oxygen flow (L/Min)1-5
Oxygen concentration (%)90%-38%
Outlet pressure ( Mpa )0.041
AlarmPower failure
Sound level (dB)≤ 45
LCD displayaccumulating timing; Present timing; Timing;
Net Weight (Kg)6
Dimension (mm)350(deep)*190(width)*320(height)
FuseF2A/250V
Vehicle PowerInput: DC 12V Output: AC220V/200W
Using condition
Ambient temperature: 10º C-40º C
Relative humidity: 30%-85%
Air pressure: 700 hPa-1060 hPa
No corrosive gas and strong magnetic field around.
Condition for transportation and storage
Environment temperature scale: -20-45º C
Comparative humidity scale: ≤ 95%
Air pressure scale: 500- 1060 hpa
