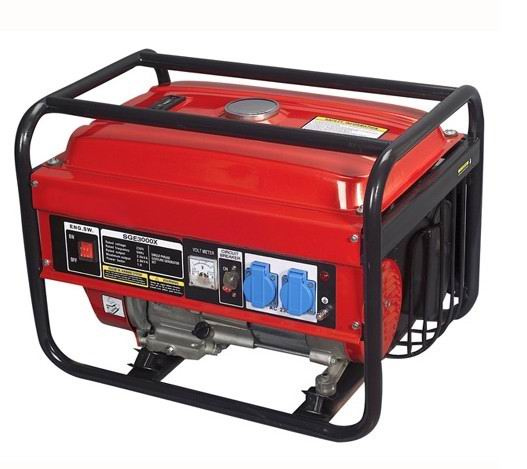

FR1500~FR6500E GASOLINE GENERATOR SETS
1. Use super light gasoline engine as power.
2. The products conform with relevant standards of IEC and their properties reach international level.
Emergency low oil shutdown system is equipped. It will stop the engine immediately if the lube oil level drops below a safe level, protecting your investment.
No fuse circuit breakers for overload protection and convenience.
Large silent muffler and efficient air cleaner reduce the exhaust and intake the noise. Meeting the most tigid environmental pollution standards.
Large fuel tank ensures hours of continuous running.
Engine and generator rest on inclined rubber blocks. This improved mounting system takes away both vertical and horizontal vibrations.
Brushless generator eliminates time consuming maintenance. Condenser voltage regulator ensures stable voltage output.
12 volt D. C. Auxiliary charging (car/boat batteries
|
Model |
FR1500 |
FR2500 |
FR3500 |
FR4500 |
FR5500 |
FR6500 |
FR5500E |
FR6500E |
|
|
Max. Power (w) |
1800 |
2300 |
2700 |
3800 |
4400 |
5500 |
4400 |
5500 |
|
Rated Power (w) |
1500 |
2000 |
2500 |
3500 |
4000 |
5000 |
4000 |
5000 |
|
Voltage (v) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
|
Rated Current (A) |
6.8 |
9.1 |
11.4 |
15.9 |
18.2 |
22.7 |
18.2 |
22.7 |
|
Frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
Type |
Force Air-Cooled, 4-Stroke, OHV |
|
Displacement |
163cc |
163cc |
196cc |
270cc |
337cc |
389cc |
337cc |
389cc |
|
Max. Output (HP) |
5 |
5.5 |
6.5 |
9 |
11 |
13 |
11 |
13 |
|
Fuel |
Gasoline, lead-free |
|
Fuel Tank (L) |
12 |
22 |
|
|
Oil |
SD or Higher Grade |
|
Oil Capacity (L) |
0.6 |
1.2 |
|
Igniion System |
T. C. I |
|
Starting System |
Recoil |
Recoil/Electric |
|
Noise Level (at 7m) |
65db |
68db |
68db |
70db |
71db |
72db |
71db |
72db |
|
Dimension(L×W×H) |
610×440×460 |
700×530×575 |
|
N. W./ G. W. (kg) |
42 |
45 |
47 |
50 |
58 |
63 |
58 |
63 |
FUJIAN FREND MOTOR Co., Ltd is located in the economic development zone of Fuan City, the coastal city of East Fujian, China that's noted for the production base of generator, diesel generator set, gasoline generator set, solar electric car, ect.We carry out the ISO9001 quality system and "human-care essential" management, mode to build up our brand image.The product which has become favourite of users are now sold to many countries and areas including Southeast Asia, MID East, Africa, South American
We adhere to the technical innovation spirit, and keep marketer-entered to develop original produces, Our produced have achieved the combination of mechanism and electrics.We are not only pioneering on domestic market, but also exploring the export channels.We are solid on technical force, and strict in quality management.Under guidance of "quality for market, credit for development", we are striving for sound business image and the first-class brand aim.It present, we are in position to offer our clients a wide range of products which have been exported to overseas market and winning the great acceptance by Clients.
"keeping striving and innovative", we are dedicated to supplying you with the quality services.We sincerely hope to set up business cooperation with you for the same promising future.
