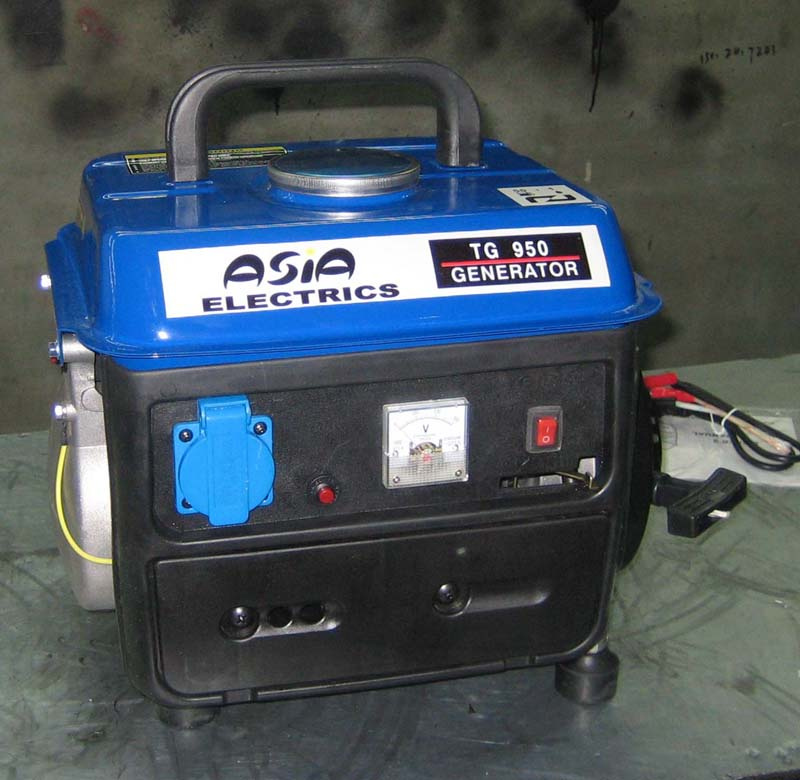

Portable Gasoline Generator (950)

This type of gen is mainly used in entertainment place, emergent use and household. The unit is using one-cylinder, two-stroke, fan-cooling gasoline engine and non-brush AC power generator. It is featured with low noise, light weight, compact structure, low consumption and high reliability. Besides, the unit is equipped with overload protection and the option to be recharged with 12V DC.


Model: 950(DC)
Rated Frequency (Hz): 50/60
Rated Power (W): 650
Rated Voltage (V): 220/110
Rated Current (A): 3/6.8
Run Time (Hrs): 5.8/4.8
Engine Model: IE45F
Engine type: 2-stroke, Air-cooled gasoline eninge, recoil start
Displacement: 63cc
Mixed Gas & Oil: Gasoline(two-stroke): Lubricant=50: 1
Fuel Tank (L): 4
Noise Level (at 7m): 64dB/65dB
Dimension (mm): 375 x 325 x 325
N. W. /G. W. (kg): 17.5/19.5
20/40'FCL (set): 745/1500


Model: 650
Rated Frequency (Hz): 50/60
Rated Power (W): 450/550
Rated Voltage (V): 220/110
Rated Current (A): 2/5
Run Time (Hrs. ): 8/6.5
Engine Model: IE45F
Engine type: 2-stroke, Air-cooled gasoline eninge , recoil start
Displacement: 63cc
Mixed Gas & Oil: Gasoline(two-stroke): Lubricant=50: 1
Fuel Tank (L): 4
Noise Level (at 7m): 63dB / 64dB
Dimension (mm): 400 x 330 x 330
N. W. /G. W. (kg): 17/19
20'FCL (set): 745



Model: 1000(DC)
Ratdd Frequency (Hz): 50/60
Rated Power (W): 750
Voltage (V): 220/110
Rated Current (A): 3.4/7.7
Run Time (Hrs. ): 5.8 / 4.8
Engine Model: IE45F
Engine type: 2-stroke, Air-cooled gasoline eninge , recoil start
Displacement: 63cc
Mixed Gas & Oil: Gasoline(two-stroke): Lubricant=50: 1
Fuel Tank (L): 4
Noise Level (at 7m): 64dB / 65dB
Dimension (mm): 375 x 325 x 325
N. W. /G. W. (kg): 20 / 22
20'FCL (set): 745
