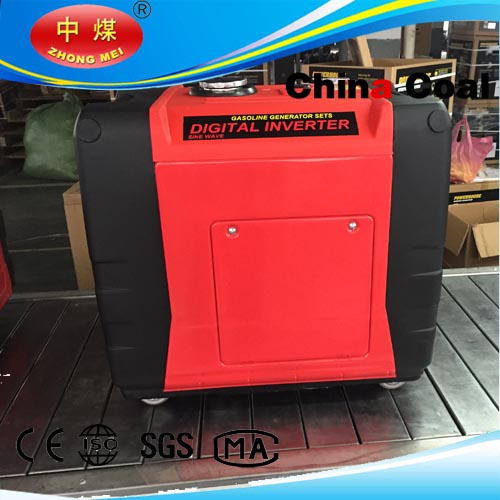

Product Description
digital inverter generators have the excellent performance displayed as:
1. Building Silent and High-quality Generators to Enhance Your Lifestyle.
The FME Digital Inverter generator set series offer unsurpassed
Technology, quality and consumer benefits in the industry.
2. Lightweight Portable Generator Power
The alternator is connected directly to the engine, eliminating the flywheel as in traditional sets.
This design results in a 50% reduction in weight and overall dimensions. Electric power is made available to a wide range of applications.
3. Unique Construction Utilizing The Latest Technology
Patented cooling air intake design, smart throttle power management, sound attenuation construction and inverter style output all combine to produce state-of-the-art portable electric power.
4. Certification
FME digital generators sets have received EPA, GS, TUV, EMC, CSA, PSE, CARB, CETL certifications for different country.
5. Green Power System
The FME Digital Inverter gensets Series is among the most environmentally friendly class of generators in the market. The two-tiered noise dampening system results in a 10-15 decibel reduction from traditional generator sets. The high-efficiency combustion system results in ultra-low emissions.
6. Quality Power
FME utilizes inverter technology in the Digital Inverter Series generators to produce a pure sine wave AC output. The inverter unit tightly regulates voltage and frequency. You can rely on the generator to safely run all electronic equipment including microprocessor controlled appliances and tools.
7. A Wide Range of Benefits
In addition to clean, quiet, and efficient power, FME offers superior overload and low oil level protection.
The unique Smart Throttle automatically varies the engine speed according to the load, resulting in lower fuel consumption and less engine noise. Using 20 to 40% less fuel than a conventional set results in a longer running time.
8. Great Model Lineup
FME offers a number of generators with output to match your particular application.
| Model |
| XG-SF5600 |
| Rated power output(KW) | 5 |
| Max. power output(KW) | 5.5 |
| Engine | Type | Forced Air-Cooled, 1-Cylinder, 4-Stroke, OHV |
| Displacement | 389cc |
| Rated power output | 7.5/3600RPM |
| Max power output | 8.0/3600RPM |
| Bore*Stroke(mm) | 88×64mm |
| Ignition system | T.D.I |
| Starting system | Recoil starting/Electric/Remote |
| Recommend Fuel | Unleaded Gasoline |
| Fuel tank capacity | 20L |
| Fuel consumption | 360g/kw h |
| Continous operating hour | 8.5 |
| Noise (7m away) | 66dba |
| Generator | Rated output frequency | 50HZ/60HZ |
| Rated output voltage | 100v/110v/120v/220v/230v/240v |
| D. C. Output | 12V 8.3A |
| A.C. Output | 100v/110v/120v/220v/230v/240v |
| How Many Output | 1 |
| Dimensions | Total length | 700mm |
| Total width | 480mm |
| Total height | 600mm |
| Net weight | 75kg |
| Packing size(mm) | 75*57*79.5cm |
| Standard Features | Large-capacity air cleaner | N |
| Fuel indicator | Y |
| Voltmeter | N |
| Auto voltage adjustor | Y |
| Oil alert system | Y |
| Circuit breaker without fuse | Y |
| Circuit protector | Y |
| Options | Parallel connection box | N |
| Digital display control panel | N |
| 20' Container (UNIT) | MOQ80 |
| 40' Container (UNIT) | 170 |
| 40' HQ (UNIT) | 180 |
| Certificates | CE, GS, EPA. CARB,CSA |
