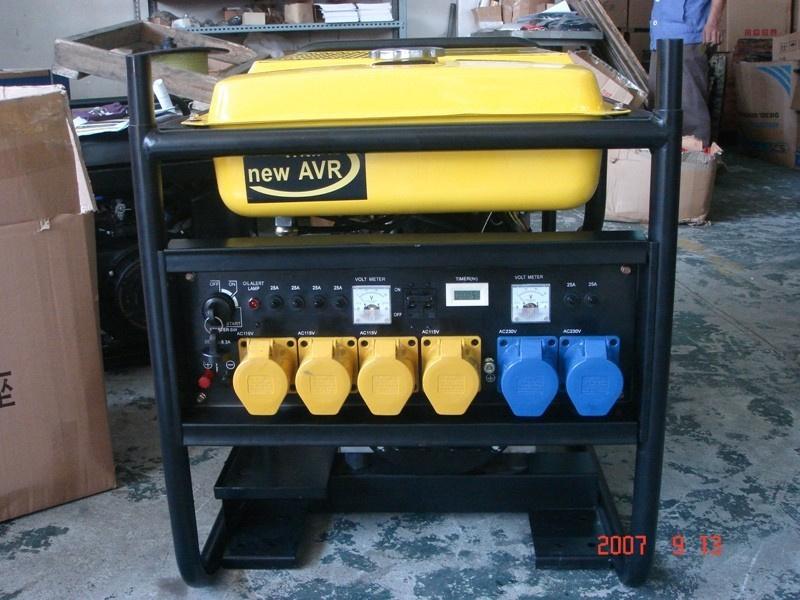

Portable Diesel Generator (RPLT10000T)
| Price: |
Negotiable |
| Min Order: |
1 |
Main technical specification
Gen-set model: RPLT10000T
Rated capacity: 10kVA
Rated voltage: 400/230V
Rated current: 14.4A
Rated power: 50Hz
Rated power factor: 0.8
Rated speed: 3000r/min
Exciting method: ARV
Starting method: DC12V electrical starting
Cooling method: Air cooling
Fuel tank capacity: 18L
Weight: 148kg
Diesel engine
Model: KTS245-10KW
Type: In-line, direct injection, air cooling
Air intake: Turbocharged inner cooled
Stroke: 4
Cylinder: 2
Cylinder diameter: 86mm
Piston stroke: 72mm
Pistion displacement(L): 836L
Compressed ratio: 20: 1
Crankshaft rotation direction clockwise (facing flywheel end)
Diesel engine oil grade: SEA 10W/30
Fuel consumption rate at rated power(L/h): 2.5
Rate power: 11kW
Rated speed: 3000r/min
Starting method: DC12V electric starting
Alternator
Model: ZZ40
Raged power: 10kVA
Rated voltage: 400/230V
Raged frequency(Hz): 50
Rated speed(r/min): 3000
Rated power factor(lagging): 0.8
Phase and connection method: 3- phase, 4 line
Pressure adjustment method: AVR
Protection grade: IP23
| Prod Model: |
RPLT10000T |
| Cooling Method: |
Wind Cooling |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
Robust Power are a leading manufacture of generator and mobile
Light tower in China, We have achieved 16 proven patent of light tower, more than other Chinese supplier. Not just a trade company, and can research, the customers-based products.
In 2007, we won a tender of 300units light towers for peacekeeping forces of United Nation. At right now, we are two countries' United Nation project supplier.
Robust Power, is located in national grade industrial zone with beautiful scenery and convenient traffic extending in all directions of Fuzhou city, China. The predecessor of Robust was Fuzhou Rongli M & E Co., Ltd. which established in October 1990, is known as professional manufacturer of generator parts & control modules. Through two years of development, Robust Power has quickly formed an integrated chain from research and devolpment, production, sales, maintenance to customer service.
Diesel gensets of Robust Power System were explored according to the demand of the customers and the developing need of the society. It has passed the strict technical demonstration. It is the cooperation outcome of famous engine manufacturer CUMMINS, LOVOL, DEUTZ, England PERKINS, Japan KUBOTA, ISUZU, and Chinese famous engine manufacturer, together with the world famous generator LEROY SOMER, STAMFORD. It uses the latest intelligent control technical, and pushes out the optimal combination of quality, performance, value series diesel gensets. No matter for the prime power or the stand-by power, it all can provide a whole series diesel gensets and full automatic panel, full ATS, lower noise gensets and work-room noise-annuated project, trailer mobile power station type etc. These products are designed and configured into a whole, as a result, you can be at home with them.
On the basis of steady development of general mobile illumination products, after years of great efforts, Robust Power has developed several large-scale new product group of light tower including Janpan KUBOTA, ISUZU series, CUMMINS series, England PERKINS series & other Chinese brand series with output ranges from 4.5kVA to 30kVA, which is capable of meeting customers' requirements at different fields. We make our efforts to provide customers worldwide with the most economic, stable and practical mobile illumination equipments. In 2008, we won a tender of 300units light towers for peacekeeping forces of United Nation and we have supplied these light towers to UN till today.
Following the corporate culture "Trustworthy and Practical", Robust Power strive to be a first-class manufacturer in the line of mechanical and electrical products. With 15, 000m2 factory premises, we owns a number of production lines for mould fabrication, press shaping, welding & plastic spraying, assembly and testing. Now, Robust Power is staffed with 100 employees and 10% of them are engineers and technicians. Abiding by the principle "Quality First", Robust Power has established perfect and effective internal quality control regulations with complete measuring and testing equipments. Robust Power had attained ISO9001: 2000 certificate and got CE certificate for all of our products.
Although our gensets and mobile light towers takes an important part in the world's market with its high performance and incomparable price, we will still exert ourselves in developing better products for the whole world.
