1. Permanent magnetic alternator with high efficiency 90% is much better than other machine.
2. Digital inverter syste: Pure sine wave and THD less than 1%.
3. High quality power output: Can directly drive 1.5HP air condition
4. Supply long operation hours. It is not just work as standby power, it supply continuous electricity.
5. Compact size, high power, simple mechanism and easy starting.

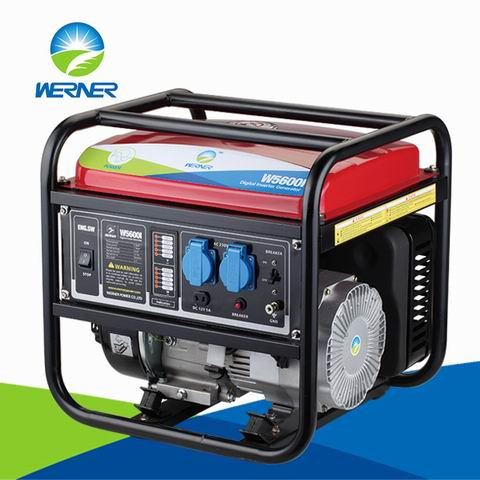

Model Name | W5600I |
Engine | 170F |
Engine Type | 4-stroke, OHV, single cylinder, cylinder inclined, air cooled,petrol |
Displacement | 212ml |
Compression | 8.5:1 |
Rated rev | 3600r/min |
Ignition system | T.C.I |
Start system | Recoil hand-operated, electric system |
Engine rated output | 4200W |
Fuel tank capacity | 14L |
Fuel comsumption | ≤316g/kw.h |
Lube Oil capacity | 0.6L |
Alternator | Werner permanent magnetic alternator,100%copper,brushless |
Rated AC frequency | 50/60HZ |
Rated AC voltage | 230V |
Rated AC current | 15.2A |
Rated AC output | 3500W |
DC output | 12V 5A |
output waveform | pure sine wave |
output efficiency | ≤90% |
Total Harmonic Distortion | ≤1.5% |
Phase | single phase |
Power factor | 1 |
Frequency stability | ±0.5Hz |
Voltage regulation | 0.5%V |
Dimension | 477×470×470 (mm) |
Net weight | 34.3KG |
Chief Engineers have 20 years design experience of electronic inverters and Permanent magnetic alternators, Digital Inverer Generators Under protection of self multi Patents. All products are new invention in the world, self inverter offer best quality.
