Home Generator Products Portable 500W Solar Home Power System Briefcase Solar Generator for Fans TV and Lighting

Portable 500W Solar Home Power System Briefcase Solar Generator for Fans TV and Lighting

Portable 500W Solar Home Power System Briefcase Solar Generator for Fans TV and Lighting
Price: US $ 150-240/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Portable 500W Solar Home Power System Briefcase Solar Generator for Fans TV and Lighting

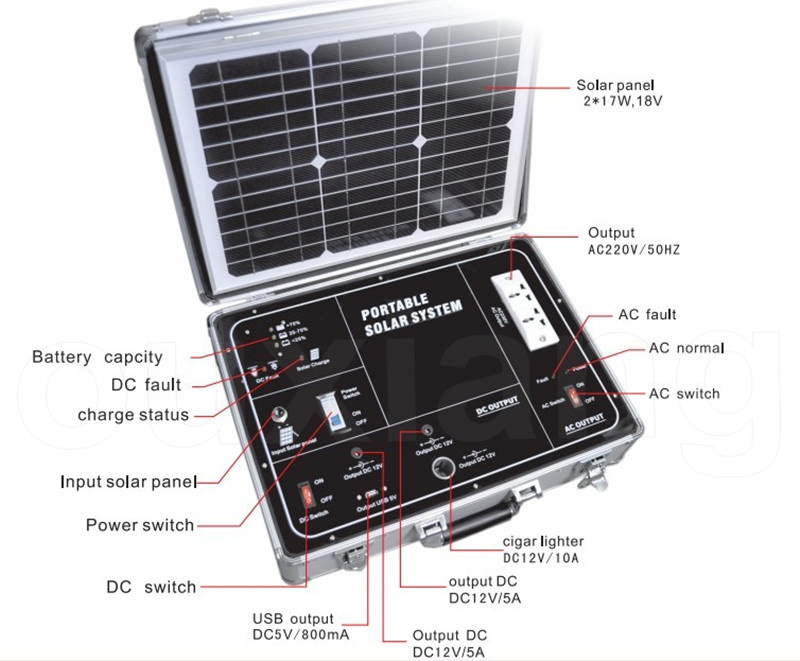

1.The solar power system designed to provide DC power and AC power,supply for lighting mobile phone charging,run the DC fan and radio,and TV,computer etc.
2.Bulit-in PWM charge controller,real time display of battery capacity and load status.
3.Built-in maintenance-free lead0acid battery.
4.With several output socket,can output voltage DC12V and USB5V at the same time.
5.Built-in DC to AC power inverter,can output AC220V/50HZ.
6.Voice warning and together LED indicator shows the battery get

Solar charge:
The solar panel to access the charging socket.The positive and negative cannot be reversed(the solar panel powerThe charging process performed by the charger controller,without user intervention.
Use load:
DC load:first open the power switch,and open the DC switch,the DC load can be used.
AC load:first open the power switch,and open the AC switch.the AC load can be used.

DC load:At the same time the DC load power shall not exceed 120W,may cause the machine to enter the state of over-load protection.
AC load:At the same time the AC load power shall not exceed 500W,may cause the inverter over-load protection.
Power station mainly use for Resistive load as household lighting,TV,fan,radio and computer.Not suitable for Capacitive load as electric motor,refrigerator,air conditioning,microwave and ovens.

Optimal working scope:
Our mobile power statation mainly use for Resistive load as household linghting, TV, fan, radio and computer. Not suitable for Capacitive load
as electric motor, refrigerator, air conditioning, Microwave and ovens.
In urgent case, our mobile power station can connect with automobile battery to start automobile.

Notices :
1. AC adapter charge ( different type of AC charge available )
While AC power available, please charge mobile power station with AC adapter.
Non-matching adapter is forbidden, Otherwise, the battery will be damaged.

2. Solar Panel charge

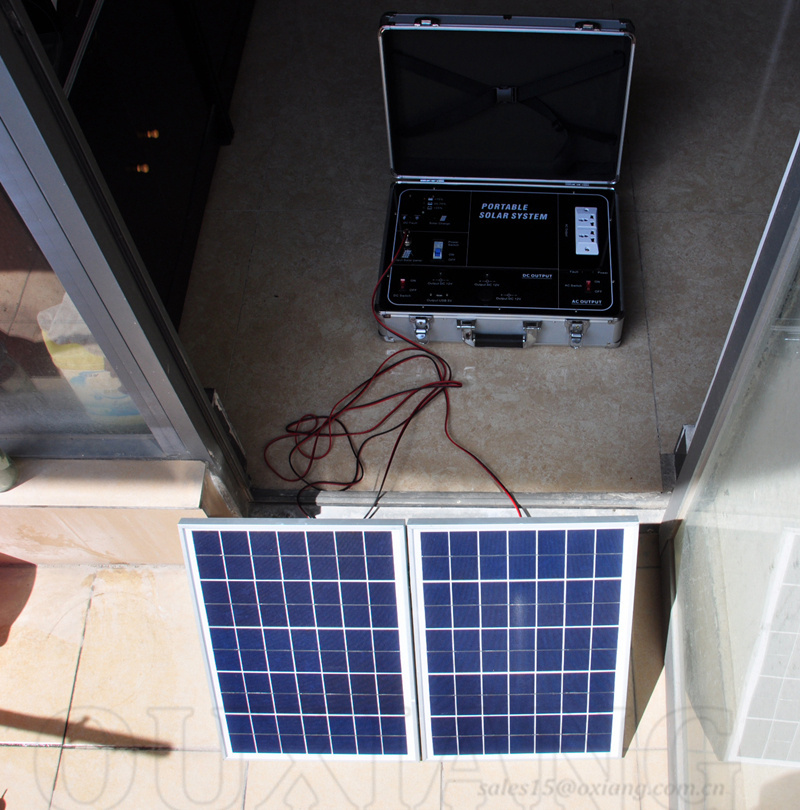

Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully,. then plug the power line of the solar panels into "SOLAR CHARGE" socket.
The adopted solar panels with peak power range : 10W-80W.( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.

3. To achieve the more working time, you can external connect with battery.
Connect red line with positive pole of battery, and back line with negative pole of battery.
500W briefcase design solar home energy system solar power generator for fans,TV and lightings
System voltageDC12V
Battery capacity20AH/12V
Max.charge current10A
Build-in solar panel power38W,open circuit voltage:17.5V
Output voltageDC output:DC socket:12V/5A
USB outout:DC5V/800mA
Cigar lighter:DC12V/10A
Output AC:AC220V/50HZ
Load powerDC power:
Low voltage dis-connectDC load LVD:11.0V,AC load LVD:10.0V
DC load re-connect voltage12.5V
High voltage dis-connect15.5V
Weight 15kg

Prod Model: OX-SP500A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification: Mini
Application: Home
Output Voltage (V): 12V
Load Power (W): 500W
Solar Power (W): 38W
Work Time (H): According to Load Wp
Solar Panel Power: 38wp
Output AC Voltage: 110V/220V
Output AC Wave: Modify Sine Wave
AC Charger Current: 12V/2A
System: Off-Grid system
