| Price: | US $ 150-6500/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |

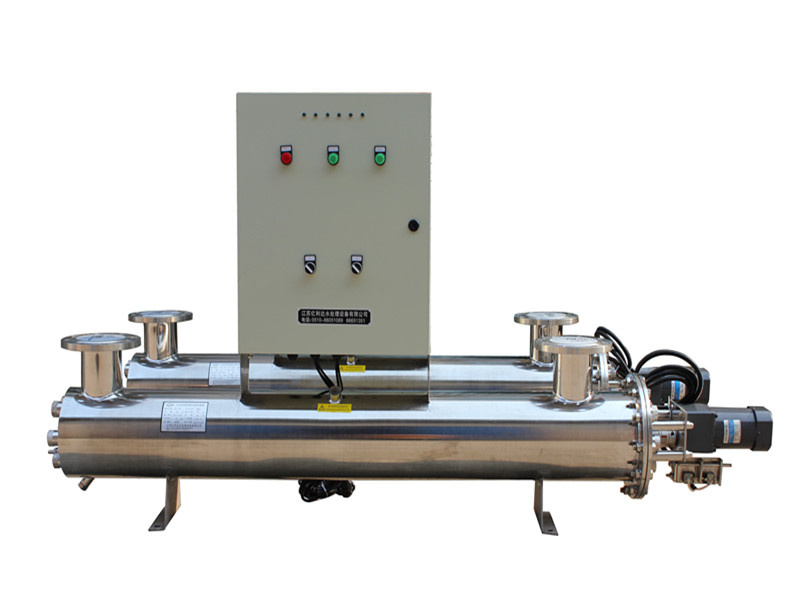

Stainless Steel Germicidal Ultra Violet Light Systems Offer a Natural Approach to Purifying Water Without Toxic Chemicals
Heavy duty, high pressure leak resistant units makes these lights perfect on the budget for a high quality Stainless Steel unit.
Highly polished stainless steel interior They are polished to a high luster/shine inside the reactor chamber wall for improved reflection of the UV light thus allowing for more killing power.
Thermically-sensitive electronic ballast further protects our new UVC lamp, by automatically shutting down when the unit becomes too hot, preventing damage to both the lamp and the unit (Restarts automatically when it cools down)
| model | Processing capacity (Ton/Hour) | power (W) | inlet and outlet (inch) | working pressure (Kg/cm 2 ) | malfunction alert for UV lamp | reactor dimension (cm) L×W×H | dimension of panel(cm) | anchor bolt (cm) | overall weight (Kg) |
| YLCn-005 | 0.3 | 16 | 1/2" | 6 | matched | 30×6×11 | 5 | ||
| YLCn-008 | 1 | 25 | 1/2" | 6 | matched | 47×6.3×11 | 10 | ||
| YLCn-050 | 2 | 40 | 1" | 6 | matched | 100×9×20 | Φ8.9×25 (diameter×length) | 69×4×Φ1 | 25 |
| YLCn-150 | 6 | 80 | 1+1/4" | 6 | matched | 100×11×23 | 69×4×Φ1 | 30 | |
| YLCn-200 | 8 | 120 | 1+1/2" | 6 | matched | 100×15.9×30 | Φ8.9×45 (diameter×length) | 69×7×Φ1 | 35 |
| YLCn-300 | 12 | 160 | 2" | 6 | matched | 100×15.9×32 | 69×7×Φ1 | 40 | |
| YLC-050 | 2 | 40 | DN25/1" | 6 | matched | 100×8.9×30 | 25×30×12 (L×H×w) | 60×4×Φ1 | 45 |
| YLC-150 | 6 | 80 | DN32/1 1/4 " | 6 | matched | 100×10.8×30 | 60×4×Φ1 | 50 | |
| YLC-200 | 8 | 120 | DN40/1 1/2 " | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 60 | |
| YLC-300 | 12 | 160 | DN50/2" | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 70 | |
| YLC-360 | 15 | 200 | DN65/2 1/2" | 6 | matched | 100×15.9×40 | 50×78×25 (L×H×W) | 60×7×Φ1 | 120 |
| YLC-500 | 20 | 240 | DN65/2 1/2" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 130 | |
| YLC-600 | 25 | 280 | DN80/3" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 140 | |
| YLC-700 | 30 | 320 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 150 | |
| YLC-1000 | 40 | 360 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 160 | |
| YLC-1200 | 50 | 400 | DN125/5" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 180 | |
| YLC-1500 | 60 | 420 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 210 | |
| YLC-2000 | 80 | 560 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 220 | |
| YLC-2500 | 100 | 700 | DN150/6" | 6 | matched | 170×27.3×57 | 60×128×30 (W×H×T) | 120×16×Φ1.4 | 275 |
| YLC-3000 | 125 | 840 | DN150/6" | 6 | matched | 173×27.3×57 | 120×16×Φ1.4 | 300 | |
| YLC-4000 | 150 | 1120 | DN200/8" | 6 | matched | 173×32.5×65 | 120×20×Φ1.6 | 325 | |
| YLC-5000 | 200 | 1400 | DN200/8" | 6 | matched | 173×37.7×72 | 120×22×Φ1.6 | 350 | |
| YLC-7000 | 300 | 2100 | DN250/10" | 6 | matched | 175×42.6×80 | 120×24×Φ2.0 | 400 | |
| YLC-10K | 400 | 2520 | DN250/10" | 6 | matched | 176×52.9×95 | 60×150×40 (W×H×T) | 120×28×Φ2.2 | 475 |
| YLC-15K | 600 | 3080 | DN300/12" | 6 | matched | 176×78×110 | 120×32×Φ2.4 | 600 | |
| YLC-20K | 800 | 3920 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed | confirmed |
| YLC-25K | 1000 | 4760 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed |
| Prod Model: | YLC-700 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bactericidal Efficienc: | 98% Kill Total Coliforms |
| Material: | Stainless Steel Ss304, Ss316 |
| Medium Material: | PP (Propene Polymer) |
| Lifespan Of UV Lamp: | 9000-12000 Hours |
| Interface Type: | Flange or Thread |
| Flow Rate: | 0.3--1000 Ton/Hour |
| Alert System For Lamp: | One Set |
| System Working Pressure Resistance: | (0.6 MPa)6kg/Cm2 |
| Raw Water Supplying: | Running Water |
| Brand Of Ballast: | Beasun |
