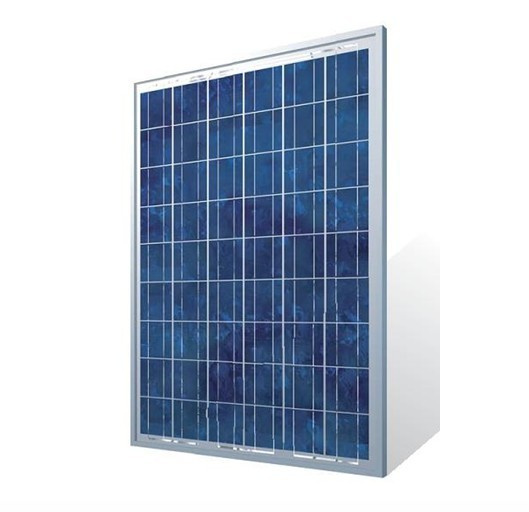

Panel Characteristics
High efficiency crystalline silicon cells
High transmission low iron tempered glass, strong mechanical resistance
Standard waterproof junction box, with bypass diode
High endurance to different atrocious weather
Custom designed modules according to clients' requirements
10-year quality guarantee and 25-year power output guarantee
Electrical Characteristics
Solar power output: 210W
Material: Polycrystalline solar silicon cells
Power tolerance 0~+3%
Configurable Characteristics
Cell Size: 156 x 156mm
Cells in series: 6 x 10(60 pieces)
Module Dimension: 1640*992*45mm
Glass: High transmission rate, Low iron, Tempered Glass 3.2mm
Frame: Anodized Aluminum
Junction Box: TUV Certificate or UL Certificate, IP65 Grade
Weight: 21kg
Temperature Rating
Nominal Operating Cell Temperature (NOCT): 47° C(+/-2° C)
Temperature Coefficient of Pmax: -0.48%/° C
Temperature Coefficient of Voc: -0.35%/° C
Temperature Coefficient of Isc: 0.03%/° C
Limit Characteristics
Operating Temperature: -40~+85° C
Maximum System Voltage: 1000 VDC
Maximum Series Fuse Current: 15A
Maximum Physical Load: 5400pascals
ZHEJIANG RDM TECHNOLOGY Co., Ltd. is a professional manufacture to do the solar panel, solar module. We can do all kinds of monocrystalline / polycrystalline(5W-300W) silicon solar modules according to our customer's different requirement. Our company has a productivity of 100MW units in 2010.
We have been trying to become the best PV products manufacturers in China.
We guarantee that our solar module have a plus tolerance 0-3%. We also provide OEM for other photovoltaic module.
The reason why RDM photovoltaic panel is authorized and chosen by the customers is its long-term high stability and low power attenuation. Its main features include:
1) It has passed the IEC 5400PA mechanical-load test and is able to withstand the worst, high load working environment;
2) 18 core quality monitoring points, 30 important quality monitoring points, and 100% of the current and voltage test ensure that it meets the power requirements of the power tolerance 0 ~ +3%;
3) It has passed a number of international certifications and tests (TUV, IEC61215&IEC61730, CE, CEC, RoHS, ISO)
