Generator Manufacturers and Factories

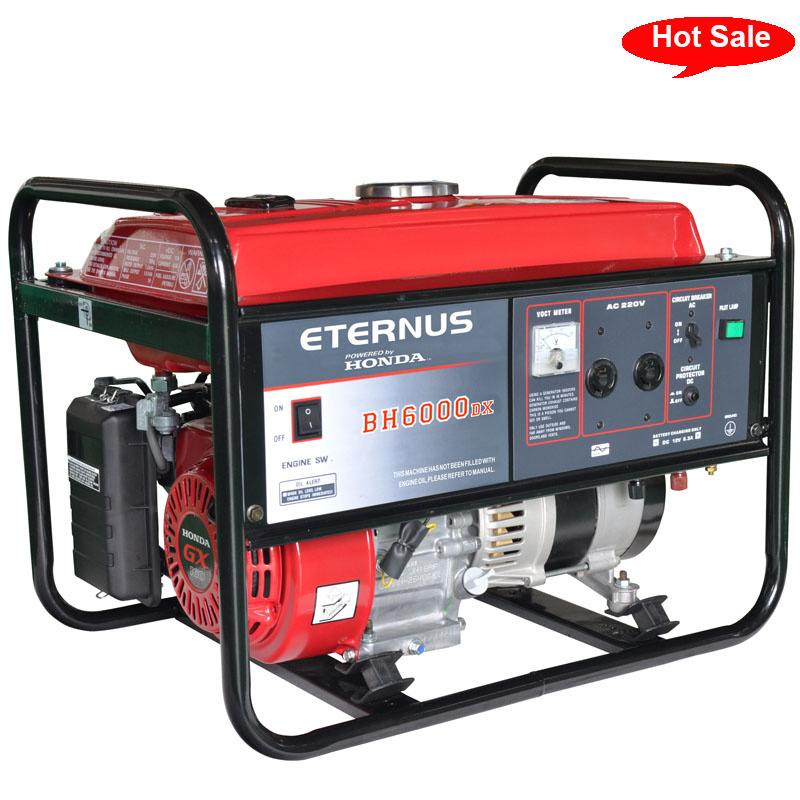

Home Generator Products Plaza Brush Alternator 4kVA (BH6000EX)

Plaza Brush Alternator 4kVA (BH6000EX)

Plaza Brush Alternator 4kVA (BH6000EX)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T
PRODUCT DETAILS

Plaza Brush Alternator 4kVA (BH6000EX)
1) Engine: Honda GX340
2) Engine type: Air-cooled, 4-stroke, OHV, single cylinder
3) Starting system: Recoil start (Electric start both available)
4) Displacement: 337CC
5) Frequency: 50Hz/60Hz
6) Rated Voltage: 220V, 230V, 240V/120V, 120V both available
7) Rated power: 4kw
8) Max. Power: 4.4kw
9) Fuel tank capacity: 15L
10) Phase: Single
11) Wire: 100% copper coil
12) AVR
Gasoline generatorBH2900DXBH5000DXBH7000DXBH7000DXEBH8000DXBH8000DXEBH11000BH13000BH15000
Engine
ModelGX160GX270GX390GX630GX690GX690
Type4-Stroke  OHV 1 cylinder4-Stroke  OHV 2 cylinders
Displacement163 cm³270.1
c m³
389.2 cm³614 cm³688cm³688 cm³
Bore x Stroke68x45mm77x58mm88 x 64 mm77x66 mm77x72 mm78x72 mm
Cooling systemAir cooling
Starting systemRecoilRecoil+ ElectricRecoilRecoil+ ElectricElectric
Fuel tank capacity25 L25 L
Generator
Rated voltage220V/(110/120/230/240V)220V220V (120V/240V)230V(120V/240V)
Rated frequency50Hz / 60Hz50Hz / 60Hz
Rated current8.7A(9.1A)13.0A(13.6A)21.7A(22.73A)26A38.6A
(79.2A/
39.6A)
47.7A
(95.8A/
48.9A)
47.8A
(100A/
50A)
Rated output2.0kVA3.0kVA5.0kVA6.0kVA8.5kVA (9.5kVA)10.5kVA (11.5kVA)11.0kVA (12.0kVA)
Max. output2.2kVA3.3kVA5.5kVA6.2kVA9.5kVA (10.5kVA)11.5kVA (12.5kVA)12.0kVA (13.2kVA)
Rated power factorCosΦ = 1
PhaseSingle
Other
Length x width x height(mm)615x430x 430680x510x 495690x510.520870x510.520690x510x520870x510x520935 x 617x 622

Net weight(kg)41.57075.5817782.5188195195





COMPANY PROFILE

JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.

BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001



ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing.

The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets  wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable.

BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on.

The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc.

Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc.

Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
Prod Model: BH6000EX
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Name: Plaza Brush Alternator 4kVA (Bh6000ex)
Generator Set: Yes
Engine: Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine
Fuel: Gasoline/Diesel
Output Power: 0-30 Kw
Frequency: 50/60 Hz
Cooling System: Forced Air Cooling
Current: AC/DC
Certificate: CE, ISO 9001:2008, Saso, Tlc
Lead Time: 30 Days
Output Type: AC Single Phase
Power: 4kw
COMPANY PROFILE

JIANGMEN BAODELI MECHANICAL INDUSTRY Co., Ltd. is a HONKONG-funded enterprise, which is located in the Pearl River Delta of Guangdong nearby HongKong, Macao and Taiwan with convenient transport service.

BAODELI is specialized in research, developement, manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems. BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001: 2008, CE, SASO, 3C and JB/T 10304-2001

Our company was established in 2004, in generator manufacturing industry has 10 years of technical research, specializing in the production of gasoline and diesel generators, water pumps and various kinds of garden tools.

ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for Honda, VANGUARD, MITBISHI and KOHLER engines with professional comprehensive performance test systems, the products all are comply with international standards of ISO8528 generator testing.

The main products are 2KW ~ 18KW gasoline generator sets with Honda, KOHLER and VANGUARD engines. And 8 KW ~20KW diesel generator sets Wits MITSUBISHI, Cummins and Changzhou diesel engines. The units are professional design, light, low noise, durable.

BAODELI strictly implements Japanese technoloogies, process assembly, compact units, powerful output, electric AVR adjustment, stable voltage, simple operation, convenient maintenance and so on.

The generator sets are widly used in majority enterprises such as telecon, bank, railway, oil field, construction, army, security systems etc.

Our products had sold in domestic market and exported to Europe, South America, Southeast Asia, Hongkong and Taiwan etc.

Science and technology as guide, strive for survival on the basis of quality as the tenet of BAODELI, which are offering the environment protection and high quality products.
