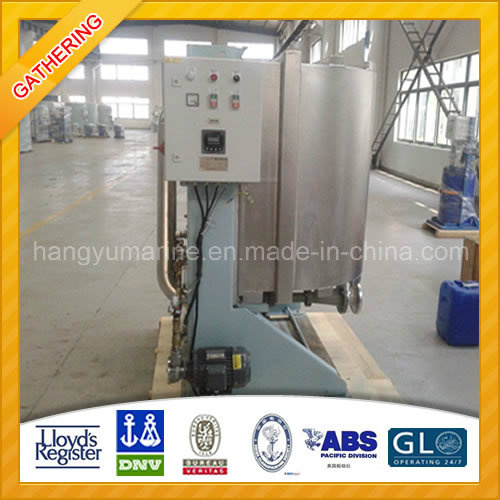

Plate Type Fresh Water Generator/Seawater Desalination Plant
Type: FWG-5/FWG-10/FWG-20/FWG-30/FWG-40
Capacity: From 5t/d to 50t/d
FWG mainly consist of evaporating and condensing chambers, ejector equipped to achieve vacuum, fresh water pump for delivering distilled water to storage tank, relevant accessories built-in complete unit.
Sea water supply pump is only loose part which will be installed independently in proper position.
Control cabinet with embedded salinity meter directly fitted on the body of the unit and the cabinet also can be arranged separately in where convenient for operation.
Information below for yr reference, we reserve the rights to optimize our design without prior notices.
We are a main Supplier of Fresh Water Generator. RO Seawater Desalination Plant, RO Plant, Sewage Treat, ment Plant and Sterilizer, 15ppm Bilge Separator.
Please do not hesitate to contact us if you are interested in Plate-Type Fresh Water Generator or any other items. Thanks
Type | FWG-20 |
Distillate Produced | 20t/d |
Heat Consumption | 585kw |
Sea Water quantity | 60m3/h |
Max.Sea water temperature | 32 Celsius degree |
Total dissolved solids | 35000ppm |
Feed water | 2500l/h |
Distillate temperature | about 42 Celsius degree |
