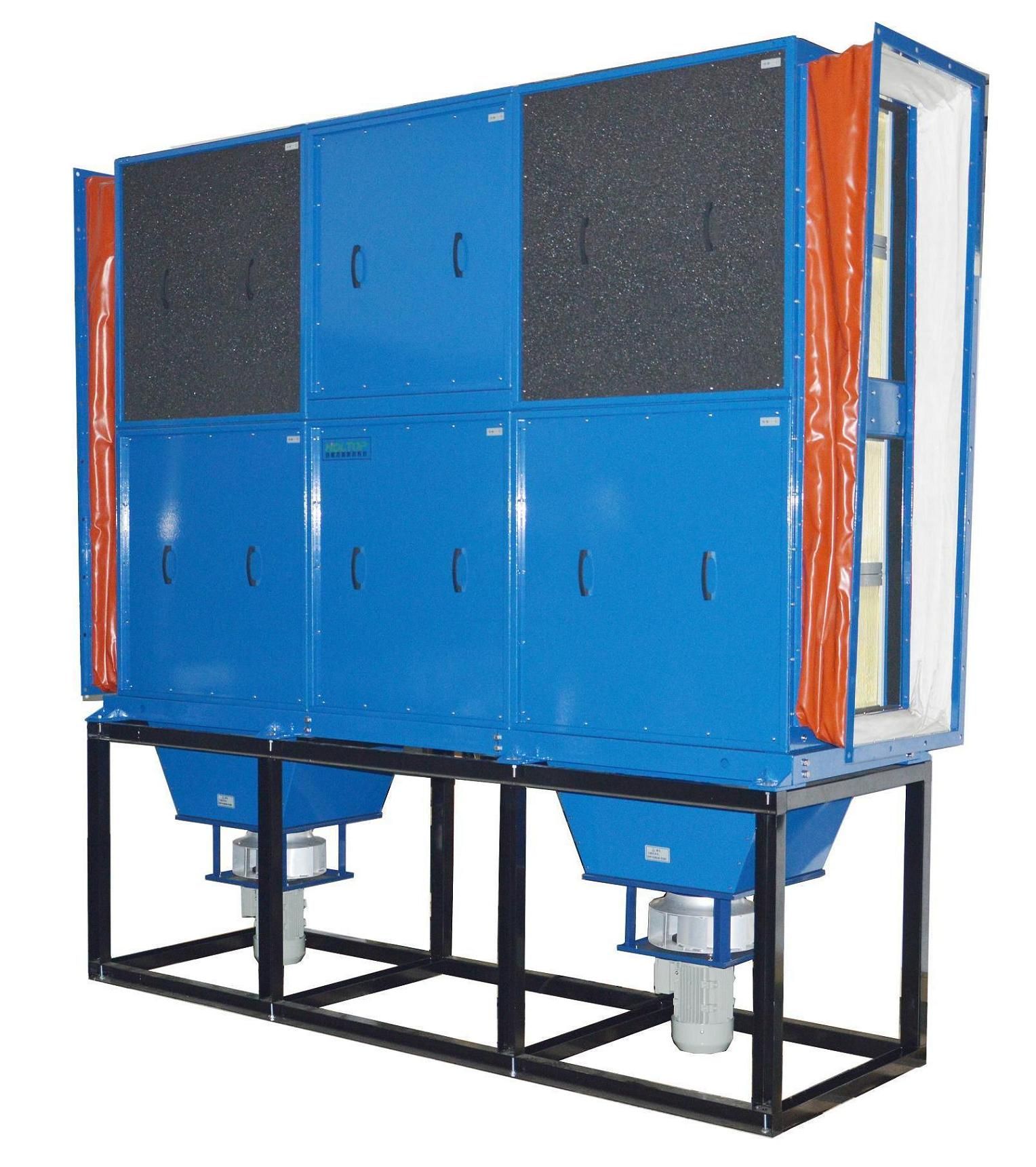

Plate Heat Exchanger, Cooling electrical equipment and electronics
Holtop heat exchangers can effectively be used to cool electrical equipment and electronics. The internal airflow in the circulation system is used to cool the electronics. When the internal airflow passes the heat exchanger it is cooled by the external airflow. In this way the right temperature/climate is maintained at all times.
This solution has several advantages compared to the traditional use of a refrigeration system. Better MTBF (MeanTimeBetweenFailure), lower cost and less pollution are some of those advantages.
Holtop heat exchangers have proved to be an excellent choice for this type of application due to their low weight, compact size, high efficiency and special surface design.
The following diagram is the data in a working condtion:
Inlet air for inner circulation is 60 degree;
Inlet air for outer circulation is 30 degree;
The RH is 60%.
inter
circulation
airflow
m3/h |
outer
circulation
airflow
m3/h |
heat
exchange
KW |
power
consumption
KW |
rated
pressure
V |
rated
current
A |
frequency
Hz |
noise
dB(A) |
net weight
Kg |
H*W*D
mm |
8000 |
18000 |
60 |
11 |
380 |
23 |
50 |
85 |
800 |
2612×800×2760 |
Beijing HOLTOP Artificial Environment Technology Co., Ltd. Has been specialized in heat recovery and ventilation industry for more than 10 years, is the biggest and most famous one among China native similar enterprises. Headquarter based in Zhong Guancun North area of SCIENCE PARK, Beijing. The construction area covers 30, 000 m2, including plant area 20, 000 m2 and office building area 10, 000 m2. Yearly production capability reaches 100, 000 heat recovery equipments. HOLTOP independent developed high efficiency heat wheel, air to air plate heat exchanger, heat recovery AHU, HRV, ERV, fan coil etc. Products are trusted by native and overseas customers because of advanced technology, good quality and service. Among these products, HRV/ERV and rotary/plate heat exchanger have been maintaining market share first for many years.
HOLTOP sales and service spread all over China, successively set up subsidiaries and offices in Shanghai, Tianjin, Shenzhen, Jinan, Shenyang, Xian, Wuhan etc. 21 main cities. With constantly improved R&D ability, more frequently technology communication, products main performance index reaches advanced level in international, HOLTOP export products to Europe, Middle East, Japan, Korea, Southeast Asia, Africa, Taiwan etc. 28 countries, exportation trend gradually become stronger.
