FY Hortizontal Axis Wind Turbine(Generator) 5KW on/off grid system
FY-HAWT-5.0KW/260RPM(5KW Hortizontal Axis Wind is with high quality competitive prices and very mature design.
QM has advanced equipments(ABB TEST equipment for wind turbine generator) and manufacture process, completed quality management system(Samsung proven) and excellent technical team(Experts on Horizontal Axis Wind Turbine/Generator/Blades/Electronic System) to provide high quality and environmental protection products and improved power supply solution and first-class after service for customers. We can supply long time warranty than other suppliers.
The wind generator are all made of NdFeB that We produces from 1996. The specific outer rotor magnetic circuit is designed in a way that the products have high generating efficiency, light weight, low starting torque, appealing appearance, easy installation and higher electric performance and use performance than the kindred products.
Horizontal Axis Wind Turbine(1-50KW) have special design; Controller/Inverter system is credible and professional, most of all, our WTG(Wind turbine generator) is quite special. (Directly drive, aslo We can supply wind turbine with gearbox)

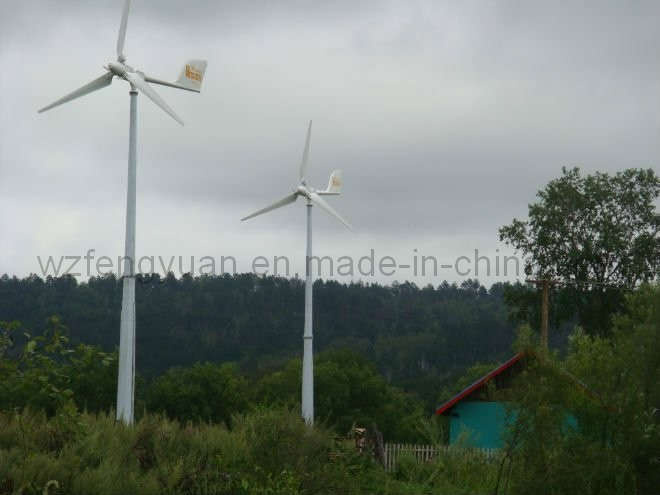

TY-5kW pitch controlled on grid system basic characteristics
1) Start up wind speed System start when wind speed is more than 2~3m/s
2) Cut in wind speed System connects to grid and has output power when wind speed is over 3m/s.
3) Rated wind speed System has full output power at 11m/s, on grid output power is 6kW
4) Working condition in strong working wind in strong wind from 11m/s to 30m/s, system has full output power through pitch control mechanism and controller regulation.
5) Over working wind speed system needs to stop when wind speed is over 30m/s. Use manual brake to stop wind turbine.
|
Parameter |
|
Wind rotor diameter |
5.4m |
|
Type |
Three blade, horizontal, up wind |
|
Blade material |
Reinforced fiber glass |
|
Start up torque |
< 7.5N· m |
|
Pitch control regulation |
260~320rpm |
|
Max rotate speed |
< 320r/min |
Generator technical parameter
|
Condition |
parameter |
|
Generator type |
Permanent magnet, three phase, AC |
|
Start up torque |
< 7.5N· m |
|
Rated rotate speed |
260r/min |
|
Rated voltage |
500Vdc |
|
Rated efficiency |
> 80% |
|
Capacity |
> 1.5 times of rated power |
|
Max rotate speed in zero load condition |
1.2 times of rated rotate speed |
|
Working temperature |
-25° C~65° C |
|
Working environment humidity |
< 95% |
Power curve data sheet
|
Wind speed (m/s) |
2m/s |
3m/s |
4m/s |
5m/s |
6m/s |
7m/s |
8m/s |
9m/s |
10m/s |
11m/s |
12m/s |
> 12m/s |
|
Power(w) |
0 |
70 |
280 |
550 |
900 |
1400 |
1960 |
2710 |
4000 |
5800 |
6000 |
6000 |
System parameter
|
Wind rotor diameter |
5.4m |
|
Blade material |
Reinforced fiber glass |
|
Rated power / max power |
5kw/6kw |
|
Rated rotate speed |
260r/min |
|
Rated wind speed |
11m/s |
|
Start up wind speed |
2.5m/s |
|
Working wind speed |
3~30m/s |
|
Survive wind speed |
60m/s |
|
Working voltage |
DC500V |
|
Speed regulation method |
Pitch control |
|
Stop method |
Manual brake |
|
Generator type |
Permanent magnet, three phase, alternator |
|
Wind turbine weight |
400kg |
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
