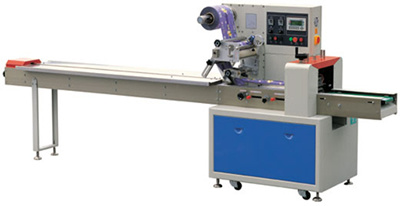

Pillow Packing Machine CYW-400D
Features:
1. Dual frequency conversion control, bag length can be set and cut in one step, save time and save film.
2. Human computer interface (HCI), easy for parameter setting.
3. Self checking function, fault self detected, clearly display.
4. High sensitivity photoelectric eyes, color code tracking, digitizing input accurate positioning when cutting and sealing.
5. Temperature controlled by independent PID, suitable for different packing materials.
6. Positions stop setting, no sticking knife.
7. Simple power train system, working reliable, easy for maintenance.
8. All controlled by software, easy for function adjustment and technology upgrade.
Applications:
Suitable for various kinds of regular objects, like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial spare parts, paper boxes, pallet, etc.
Optional device:
1. Code applying machine
2. Line sealing wheel.
3. More terminal sealing mould
4. Extra big screen
|
Model |
CYW-350B |
CYW-350D |
CYW-400B |
CYW-400D |
|
Film width |
Max.350mm |
Max.400mm |
|
Bag length |
65~190/120~280mm |
90~220/150~330mm |
130~320mm |
180~400mm |
|
Bag width |
50~160mm |
50~185mm |
|
Bag height |
Max.40mm |
Max.60mm |
Max.40mm |
Max.60mm |
|
File roll diameter |
Max.320mm |
|
Packaging speed |
40~230bag/min |
30~180bag/min |
|
Power |
220V 50/60Hz 2.6Kw |
|
Machine size(mm) |
L4020*W770*H1450 |
L4020*W800*H1450 |
|
Machine weight |
900kg |
|
Remark |
Optional air charging device |
Electric detailed list
|
|
No. |
Product Name |
Brand |
|
1 |
PLC |
Panasonic/Japan |
|
2 |
INVERTER |
Panasonic/Japan |
|
3 |
Touch screen |
Wei Lun/Taiwan |
|
4 |
Intermediate Relay |
OMRON |
|
5 |
Switching power |
Meanwell/Taiwan |
|
6 |
solid state relay |
Schneider |
|
7 |
Temperature controller |
YeaTay/Taiwan |
|
8 |
Photoelectricity colour code |
Aiset |
