The engine, the single cylinder. Four stroke. Non-contact transistor ignition. Top placed valve. Forced air cooling. The tilted placed cylinder, design, etc. The motor 1: 5 taper connection (type 10000 and 11500 type for 3: with taper 16). Has the advanced design, compact structure, light weight, reliable performance, high efficiency and speed control is simple, easy to install and maintain. etc. Characteristics.

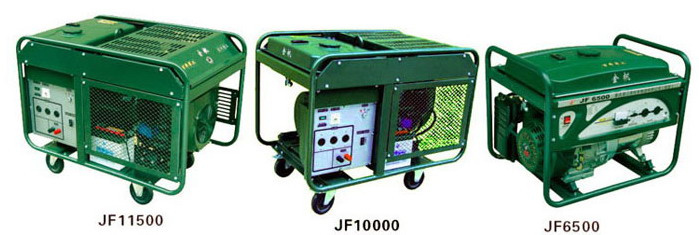

| Model | JF10000/JF10000S | JF11500/JF11500S | JF6500/JF6500D |
| Frequency (hz) | 50/60 | 50/60 | 50/60 |
| Rated output power | 8.0 | 10 | 6.0 |
| Maximum output power | 8.5 | 11 | 6.5 |
| Rated voltage | 230/380 | 230/380 | 230/380 |
| Phase | Single-phase/Three-phase | Single-phase/Three-phase | Single-phase/Three-phase |
| Ignition system | Non-contact transistor ignition | Non-contact transistor ignition | Non-contact transistor ignition |
| Starting system | Recoil type hand/Electric start | Electric start | Recoil type hand/Electric start |
| Voltage regulation system | Automatic Voltage Adjusting | Automatic Voltage Adjusting | Automatic Voltage Adjusting |
| Oil alert system | optional | optional | optional |
| Gasoline Engine | GX620 | GX670 | 190F/190FD |
| Displacement (cm³ ) | 614 | 670 | 420 |
| Fuel tank capacity (L) | 26 | 26 | 25 |
| oil tank capacity (L) | 1.7 | 1.8 | 1.1 |
| Continuous working time(h) | 6 | 6 | 8 |
| Packing size (long x width × high) | 1040× 700× 850 | 1040× 700× 850 | 710× 540× 600 |
| Net Weight (kg) | 190 | 200 | 80 |
Chongqing Gongchuang Industry Co., Ltd. is located in nanxi industry park in sha pingba district, chongqing, China. It has been built in 1996. with self-mananging import and export rights, we passed ISO9001 quality management system authentication in 1997 and be awarded as "100 top private enterprise" of chongqing, "top enterprise" of sha pingba district and "credit enterprise" of sha pingba district as well.
with the registered assets as 8 million RMB, total assets as 58.87 million RMB and fixed assets as 27.15 million RMB, we cover the land of 35 with the building land 40 thousand square meters. We have the employees up to 450 and about 40 professional management staffs and technician ones among them.
Furthermore, we insist on the running policy of "develop with the small step and reach the aim of each step; Adopt the sustainable development strategy" and the management thoery of "quality wins the market".
Stand on the proud past, we strongly believe that we are going to continuously embrace the glory future of "mutual benefit" with our customers worldwide.
