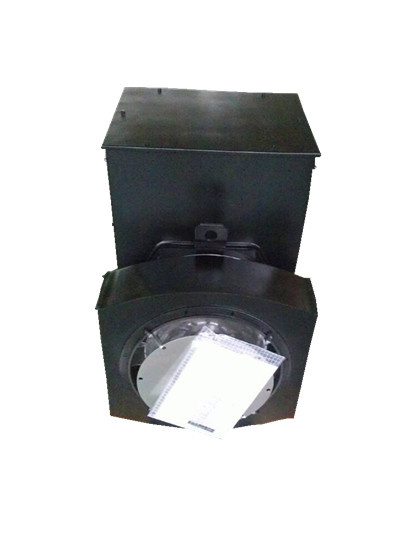

Permanent Magnet Generator Wuxi Diesel Generator
Specification:
Model series: FD3EM Brushless synchronous AC alternator
Range of power: 180KVA/144kw, 190-690V
Frequency: 50Hz 60Hz Low Frequency
Usage: Make Electrical.
Phase: Three Phase
Certificate: Has passed CE, ISO9001: 2008
Export Markets: Global
Insulation class: H.
Warranty period:
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
Accordant Standard:
GB755 National Standard for Rotating Electrical Machine
IEC60034 (International Electrotechnical Commission)
BS5000, VDE0530, CSAC22.2-100 International Standard
Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.
Additional Info.
Trademark: FARADAY
Packing: Plywood Case
Standard: 3 phase, 1500/1800rpm, 190-690V
Origin: Wuxi, Jiangsu, P. R China
HS Code: 85016200.
Factory Total Production Capacity: 30000sets/Year
Raw material:
1. Copper wire has passed UL certified class 200.
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper).
4. Epoxy Resin from ALTANA in Germany.
5. Low iron-loss silicon steel is BS470 from Shanghai BAOSTEEL GROUP
Product Description
Brushless synchronous AC alternator, the range of power is from 80kw to 200kw, 3 phase, 4 pole, 1500rpm/1800rpm, 190-690V, it includes FD3A, FD3B, FD3C, FD3DS, FD3D, FD3ES, FD3EM, FD3E, FD3F, FD3G, FD3H.
Standard Feature of Product:
1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100
2: Single or double bearings are available, options for all kinds of adaptors and disc plates
3: 12-end reconnectable winding terminals to get different voltages
4: Standard "H" insulation class
5: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
6: Standard sealed maintenance-free bearings
7: Standard IP23 protection, optional severe environment protection
8: Optional auxiliary winding in excitation system.
Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones
*Extended range voltage can be got from single windings or from 12-leads adjusted
Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%.
2.2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load
3. Faraday alternators can function in parallel among themselves.
4. Radio interference suppression
Options:
1. Winding RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4. Air filter
5. Droop CT
6. Special bearing
Model |
Output |
Voltage (V) |
Power Factor |
Speed (rpm) |
Freq. (Hz) |
Pole No. |
KVA |
KW |
FD3A |
100 |
80 |
380-415V |
0.8 |
1500/1800 |
50/60 |
4 |
FD3B |
114 |
91.2 |
FD3C |
125 |
100 |
FD3DS |
140 |
112 |
FD3D |
150 |
120 |
FD3ES |
160 |
128 |
FD3EM |
182 |
145.6 |
FD3E |
188 |
150.4 |
FD3F |
200 |
160 |
FD3G |
230 |
184 |
FD3H |
250 |
200 |
