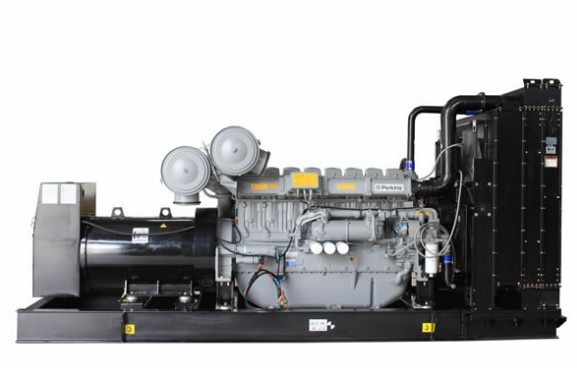

Perkins Industrial Generator Set for 20-2000kw

Perkins Industrial Generator Set for 20-2000kw
Price: Negotiable/Set
Trade Terms: CFR,EXW,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Perkins Industrial Generator Set for 20-2000kw

Perkins Diesel Generator Set Technical Parameters
Generator set model: BPX180
Brand Binshi Perkins Diesel Generator Set
Genset Model BPE180
Prime power(KW/kVA) 160 / 200
Standby power(KW/kVA) 180 / 225
Rated current(A) 2435.4
Rated voltage (V) 400/230
Rated frequency(Hz) 50Hz
Phases arrangement 3phase 4 line
Power factor 0.8(lagging )
Voltage unloaded waveform distortion(≤ %) 5
Steady state voltage regulation rate(≤ %) ± 0.5
Transient state voltage regulation rate (≤ %) ± 20~-15
Voltage stabilization time (s) ≤ 2
Voltage fluctuation rate (≤ %) 0.5
Steady state frequency regulation rate(≤ %) ± 5(0-5 adjustable)
Transient state frequency regulation rate(≤ %) +10 ~ -7
Frequency stabilization time(s) ≤ 3
Frequency fluctuation rate(≤ %) 0.5
Starting method DC 24V electric starting
L× W× H(mm) 5450× 2280× 3150
Weight (kg) 12500
Standard atmosphere conditions Complied with standards of GB1105, ISO3046
Above sea level(m) ≤ 1000
Environment temperature(Centigrade ) ≤ 40
Relative humidity(%) ≤ 95
NoisedB(A)LP7M ≤ 102
Technical standards Complied with the standards of Reciprocating internal combustion engine driven alternating current generating sets: GB/T2820.1, . 5, . 6 and ISO85282-1, -5, -6

Engine
Engine brand Perkins
Engine model 13060c-E87tag3
Broke× Stroke(mm) 160× 190
No. Of cylinders and arrangement 12V
Displacement(L) 45.8
Compression ratio 13.6: 1
Rated revolving speed(rpm) 1500
Effective average cylinder pressure(kPa) 2192
Induction system Exhaust turbocharged
Maximum resistance of intake system (kPa) 2.5
Air consumption(m3/min) 125
Maximum exhaust back pressure(kPa) 3.0
Exhaust smoke level(m3/min) 350
Exhaust gas temperature(Centigrade ) 480
Cooling method Cooled by water and fan
Exhaust air rate (m3/min) 2094
Cooling liquid total capacity(L) 207
Coolant flow(L/S) 98
Min. In/out area(m2) 18.6
Thermostat rang(Centigrade ) 71-85
Oil total capacity(L) 177.6
Fuel consumption 100%loaded(L/H) 354
Oil consumption (%fuel) 0.5
Governing method Electrical
Oil supply Direct injection

Alternator
Brand Faraday (Engga, Leroy -somer Marathon optional )
Model: FD3F-4
Rated capacity(KW/kVA) 1350/1687.5
Excitation Method Brushless, self-excitation
Protection class IP23
Insulation class H
Winding pitch 2/3
Overspeed capacity 2250rpm
Short circuit current capacity 300%(3In): 10s
Telephone harmonic factorTHF <2%
Rated Alternator temperature rise 125Centigrade

Controller
Model DSE7320
Contents Overspeed\oil-pressure\water temperature\charging failure\showing alarm trouble
Main function High water temperature\low oil pressure\overspeed\starting failure\key starter \samrt remote starter.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Prime Power(Kw/kVA): 160 / 200
Standby Power(Kw/kVA): 180 / 225
Rated Speed: 1500/1800rpm
Rated Voltage: 400/230V
Rated Frequency: 50/60 Hz
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
