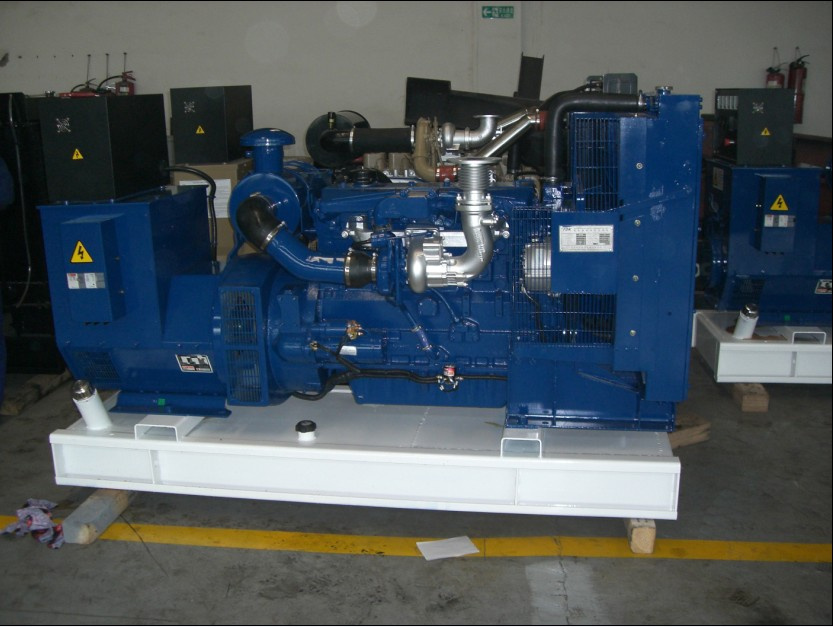

Perkins Generator:
Specifications
1) Output range: 10kW (12.5KVA) - 1500kW (1875KVA)
2) Engine model: 403C, 1103A, 1006TAG, 1306-E87, 2306-E14T, 2506-E15, 2806-E18, 4000 Series UK Perkins engine
3) Alternator: Stamford, Marathon series
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Standard configuration of gensets:
A) Engine: Perkins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Famous brand brushless alternator
10) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
11) Starting system: 20V DC alternator is used to start engine
12) Short circuit protection: MCCB switch
13) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 deg; C
14) Filter system: Oil, fuel and air filter
15) Accessories: Exhaust elbow, bellow, muffler
16) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) High-efficient silencer
