Generator Manufacturers and Factories

Home Generator Products Perkins Engine Desiel Generator Set (ETPG225)

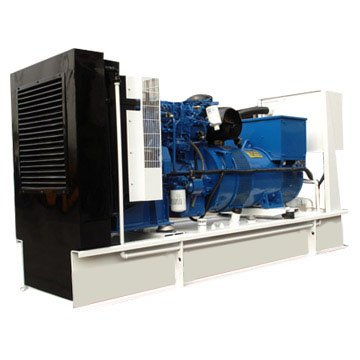

Perkins Engine Desiel Generator Set (ETPG225)

Perkins Engine Desiel Generator Set (ETPG225)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Perkins Engine Desiel Generator Set

Generator set model: ETPG225
Prime power: 200kVA/160KW
Engine model: 1306C-E87TAG3
Options for the diesel generaor set:
Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four wires

Generator set feature:
Engine Features:
* Diverse products with full specifications
* Compact structure
* Reliable and steady performance

Generator Set Electrical Features:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank

The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%

Generator set coupled AC Alternator
* Standard brands: Etone, Leroysomer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50

Control System for generator set unit
* Standard matching brands: Harsen and Comap
* Optional brands: Smartgen, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional)
Item KVA KW Engine  Model Manufaturer Dimension  Open  type
Prime Standy Prime Standby L*W*H Weight(kg)
ETPG10 9 10 7 8 403D-11G ETONE 1320*552*1180 300
ETPG14 13 14 10 11 403D-15G ETONE 1320*552*1180 390
ETPG22 20 22 16 18 404D-22G ETONE 1320*552*1180 460
ETPG72 65 72 52 58 1104A-44TG1 ETONE 2000*650*1250 960
ETPG88 80 88 64 70 1104A-44TG2 ETONE 2000*650*1250 1050
ETPG110 100 110 80 88 1104C-44TAG1 ETONE 2090*1120*1367 1100
ETPG112 101 112 81 90 1104C-44TAG2 ETONE 2090*1120*1367 1200
ETPG33 30 33 24 26 1103A-33G ETONE 1750*550*1250 700
ETPG50 45 50 36 40 1103A-33TG1 ETONE 1750*550*1250 800
ETPG66 60 66 48 53 1103A-33TG2 ETONE 1750*550*1250 900
ETPG88 80 88 64 70 1104A-44TG2 ETONE 2000*650*1250 1050
ETPG110 100 110 80 88 1104C-44TAG2 ETONE 2090*1120*1367 1100
ETPG150 136 150 106 120 1006TAG ETONE 2350*750*1450 1150
ETPG165 150 165 120 132 1006TAG2 ETONE 2350*750*1450 1200
ETPG200 180 200 144 160 1306C-E66TAG4 ETONE 2660*900*1500 1750
ETPG225 200 225 160 180 1306C-E87TAG3 ETONE 2660*900*1500 1750
ETPG250 228 250 180 200 1306C-E87TAG4 ETONE 2800*1000*1600 1850
ETPG275 250 275 200 220 1306C-E66TAG6 ETONE 2800*1000*1600 1920
ETPG400 350 400 280 320 2206C-E13TAG1 ETONE 3070*1000*1600 3100
ETPG450 400 450 320 360 2206C-E15TAG3 ETONE 3150*1150*1780 3200
ETPG500 450 500 360 400 2506C-E15TAG1 ETONE 3500*1150*1780 3350
ETPG550 500 550 400 440 2506C-E15TAG2 ETONE 3750*1150*2000 3500
ETPG660 600 660 460 528 2806A-E18TAG1A ETONE 4080*1540*2000 3650
ETPG700 625 700 500 560 2806A-E18TAG2 ETONE 4080*1540*2000 3750
ETPG825 750 825 600 660 4006-23TAG2A ETONE 3800*1700*2300 4750
ETPG900 800 900 720 720 4006-23TAG3A ETONE 3800*1700*2300 4900
ETPG1100 1000 1100 800 880 4008TAG2A ETONE 5100*1959*2500 6150
ETPG1375 1250 1375 1000 1100 4012-46TWG2A ETONE 5100*2280*3000 9500
ETPG1500 1350 1500 1060 1200 4012-46TWG3A ETONE 4950*2280*3050 11000
ETPG1675 1500 1675 1200 1320 4012-46TAG2A ETONE 4950*2280*3050 11000
ETPG1875 1750 1875 1370 1500 4012-46TAG3A ETONE 5450*2280*3150 12500
ETPG2000 1820 2000 1500 1600 4016TAG1A ETONE 5450*2280*3150 13900
ETPG2250 2000 2250 1600 1800 4016TAG2A ETONE 5450*2280*3150 14500
ETPG2500 2250 2500 1800 2000 4016-61TRG3V ETONE 5150*1850*2260 13000

Prod Model: ETPG225
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Etone----Never Stop Running!
Your reliable electric power expert

Etone Power Co., Ltd is a professional manufacturer specialized in Generator set production, design, sales, installation, maintenance and service. It has been established over 15 years, The field experience is over 20 years, And the commodity has been exported to over 80 countries and regions all over the world. Etone has set up reliable partnership with Cummins, Perkins, Deutz, Mitsubishi, Stamford, Leroysomer and Marathon series world famous engines and AC alternators. To provide no defect product and professional, timely service is our work orientation.

In accordance with international standard strickly, Etone has its own advanced production line and professional technical team to make sure every piece of Etone product is durable, practical and well satisfy the clients' request. Etone has got high reputation and satisfaction from the users. The products are Widely used in the industry, IT field, finance field, Telecom, mining industry, army, government project and public facilities etc. Etone has formed a completed pre-sale, sale and after-sale service system.

After many years accumulation and development, The Product lines widely cover Generator set, Uninterrupted Power Supply, Transformer and AVR electric product etc. We are devoted to provide the user complete electric proposal for the whole system.

Etone will always to execute " Use our technology and service to create a better for the human being, To keep all your work, you life never stop running.

For more complete and detailed information, you also can refer to the Official website.
