Power Outputs: 0.3kW-10kW
Suitable head: 5m-65m
Suitable flow: 0.005m³ /s-0.06 m³ /s

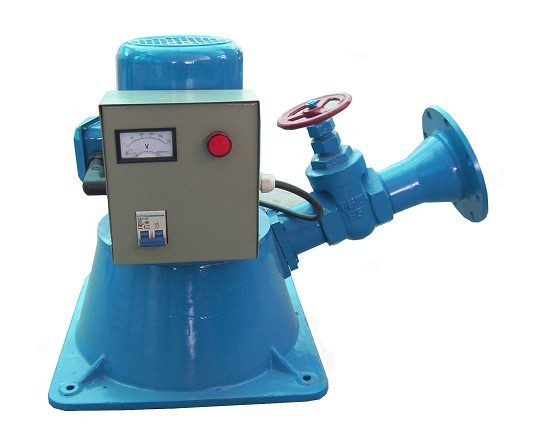

Pelton Type Hydroelectric Generator adopts "Spoon" vane turbine, combined with shell, valve,
Impeller and generator; Clear Structure and Simple Design;
Possess as follows advantages: Small size, light weight, simple structure, reliable operation, and
Easy to install, perfect for household and simple industry production power supply of peasants in
Remote mountains with small water source;
Our Inclined-jet hydro turbine generator unit (HC-SO3) is a new generation of single phase alternating current (AC) generator, which is suitable for hot and humid environment, with automatic voltage controller regulator (A.V.R.). It applies to inland waterways, household lighting or standby electric power for motors.
| Style | Water head
(m) | Flow Rate
(m3/s) | Power
(kW) | Speed
(r/min) | Diameter
(mm) | Note |
| XJ13-L-9/1*2 | 5-15 | 0.007-0.01 | 0.3 | 500-1500 | 75 | Permanent magnet |
| XJ13-L-9/1*2 | 7-15 | 00.007-0.011 | 0.5 | 500-1500 | 75 | Permanent magnet |
| XJ13-L-10/1x2 | 9-18 | 0.0079-0.012 | 0.6 | 500-1500 | 80 | Permanent magnet |
| XJ13-L-12/1x2.8 | 10-25 | 0.009-0.015 | 1 | 500-1500 | 90 | Permanent magnet |
| XJ13-L-12/1x2.8 | 12-28 | 0.01-0.018 | 1.5 | 500-1500 | 90 | Permanent magnet |
| XJ13-L-13/1x2.8 | 15-30 | 0.0114-0.023 | 2 | 500-1500 | 100 | Permanent magnet |
| XJ13-L-13/1x3 | 18-40 | 0.0124-0.0135 | 3 | 500-1500 | 100 | Permanent magnet |
| XJ13-L-18/1x5 | 20-40 | 0.012-0.0156 | 5 | 500-1500 | 150 | Permanent magnet |
| XJ13-L-18/1x5 | 30-35 | 0.012-0.0156 | 5 | 1500 | 150 | Excitation |
| XJ13-L-18/1x5 | 20-25 | 0.012-0.0156 | 5 | 1000 | 150 | Excitation |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
