Details:

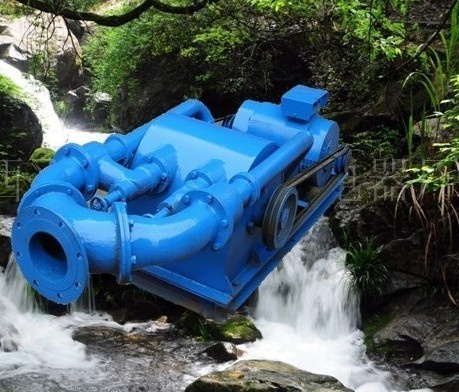

Model type: Dual wheel dual jet impact type water turbine generator Power: Above 15KW Voltage: 110V, 220V, 380V Rquency: 50Hz 60Hz Water head: 22— 100 meters Flow: 0.047— 0.331m³ /sec Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm Characteristics of water turbine: Dual wheel impact type and dual wheel dual jet impact type water turbine generators are applicable in places where water heads are medium and high and water flow is medium and small. There direct types and indirect types with wide applicable range. There are different structures such as dual water chamber, dual propeller wheel and dual jet. The one-way impulse and one-way transmission of ordinary water turbine are changed by new generating units for more balanced, more stable, more efficient and more durable performance. Construction of the foundation is simple and working duration for installation and commissioning is short while operation and maintenance of the unit is easy and convenient. Characteristics of the generator: The electric machine adopts efficient permanent magnet, thus it is provided with small volume and high efficiency. There are no wearing parts such as carbon brushes, silicon diodes and capacitors etc., thus it is provided with characteristics of few failures, easy and convenient maintenance. Working together with a regulator, the generator supplies stable voltage and is very suitable to be used by farmers in remote mountain areas
Attention: How to choose the model you need. 1. According to drive way and speed of the machine set, at the lowe water head, high flow term choose indirec drive(6 electrode)or 1000r/s (6 electrode)direct drive turbine generator set; High water fall head and low fllow choose the 1500r/s(4 electrode)direct drive turbine— Generator ser. 2. Electrical engineering type and phase, 0.3KW to 1.5kw machine set for single phase perment magnetism generator; 2KW~5KW for single or three phases perment magnetism generator or excite generator; Three phases perment or excite generator; Adove 8KW for three phases excite generator
| Model | power(K W) | fall head(M) | flow(M 3 /s) | speed(r/m) | driveway |
| double wheel sprays pound turbo- genera -tor | 18 | 22-60 | 0.129-0.047 | 1000/1500 | in/direct |
| 26 | 25-70 | 0.156-0.056 | 1000/1500 | in/direct |
| 30 | 28-70 | 0.156-0.063 | 1000/1500 | in/direct |
| 40 | 30-80 | 0.189_0.071 | 1000/1500 | in/direct |
| 55 | 35-80 | 0.214-0.093 | 1000/1500 | in/direct |
| 75 | 40-100 | 0.248-0.1 | 1000/1500 | in/direct |
| 100 | 40-100 | 0.331-0.132 | 1000/1500 | in/direct |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
