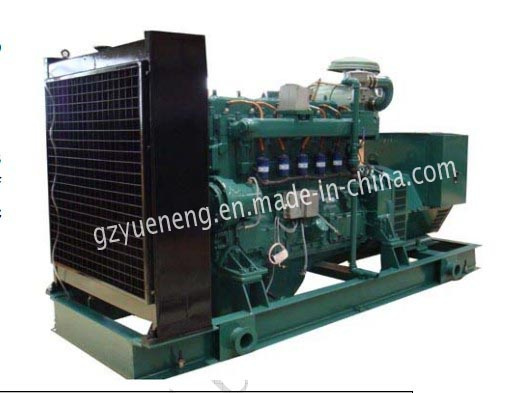

PATCO Gas Generator Set:
Technical Specification Data
GensetModel: TP113G/TP200G/TP250G
Prime Rating(kW): 90 /160/200
Rated Speed(rpm): 1500 /1500/1500
Genset
Rated Voltage (V): 400/400/400
Rated Current (A): 163/230/288
Power Factor: 0.8/0.8/0.8
Engine
Engine Manufacture: Patco
Engine Model: 6135RDT/12V135ADT/12V138ADT
Bore(mm): 135/135/138
Cylinder numbers: 6/12/12
Rated Speed (r/min): 1500/1500/1500
Gas Consumption(m³ /kwh): ≤ 0.33
Starting Model: 24V DC Electric starting system
Speed Control: YSD Electronic governor
Cooling: Closed-type cooling system
Ignition: Altronic Ignition System
Control Panel: Tide Power 1.0G (Cabinet type)
Alternator:
Alternator: Stamford
Alternator Model: UCI274D/UC1247H/UCD274K/
Rated Power (kw): 96/160/200
Frequency (Hz): 50/50/50
Rated Voltage (V): 400/230
Protection Class: IP23
Insulation System: Class H
Excitation Method: Brushless
V-regulator Method: Automatic
Phase/Connection: 3 Phase 4 Wire, Y-connection
| Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight |
| Prime | Standby | Open Type | Sound Proof |
| TP113G | 90/113 | 99/124 | 6135RDT | UCI274D | 2550×1010×1470 | | 2500 |
| TP200G | 160/200 | 176/220 | 12V135ADT | UCI274H | 3058×1235×1820 | | 3200 |
| TP250G | 200/250 | 220/275 | 12V138ADT | UCD274K | 3058×1325×1820 | | 3300 |
| TP30G | 24/30 | 26/33 | 4100ADT | BCI184G | 2000×730×1320 | | 620 |
| TP38G | 30/38 | 33/42 | 4105ADT | BCI184H | 2100×730×1320 | | 710 |
| TP50G | 40/50 | 44/55 | 6105ADT | UCI224D | 2440×730×1390 | | 810 |
| TP63G | 50/63 | 55/69 | 4135ADT | BCI224F | 2220×900×1310 | | 2120 |
| TP88G | 70/88 | 77/97 | 6315ADT | UCI274C | 2600×1010×1430 | | 2410 |
Guangzhou Top power equipment Inc. Was established in 2005, with its headquarters in Guangzhou, China, Our factory is located in Panyu industrial Zone, Guangzhou, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals.
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
