Palm Plantation Captive Power Plant Boiler
Strategic cooperation with the Chinese key lab (biomass combustion test), biomass boiler R&D institute and manufacturers, we make testing for combustion characteristic and design different kind of boilers according to different fuels.
Biomass boiler fuel feeding system has been a problem such as conveying system output is not enough for the boiler consumption, feeding system jam, the fuel cannot be fed into the boiler stably, silo problem, etc. Our company invented a special technology and effectively solved the above problem.
Palm empty fruit bunches (after palm fruit threshing) with diameter ¢300~600mm, the center rod ¢40~100mm, 55% water content, containing a variety of salts, including chlorides, also with lower ash fusion point. According to these characteristics, we have adopted joint grate (the reciprocating grate plus chain grate) combustion boiler. The water content of the empty fruit bunches can be reduced to less than 25% after the dehydration machine. The center rod is wholly smashed and sent to the fuel bunker through conveyor without further crushing, and then forced into the feeding outlet of boiler by feeders. The fuel is pre-heated on the reciprocating grate and then fully combusted on the chain grate after drying out.

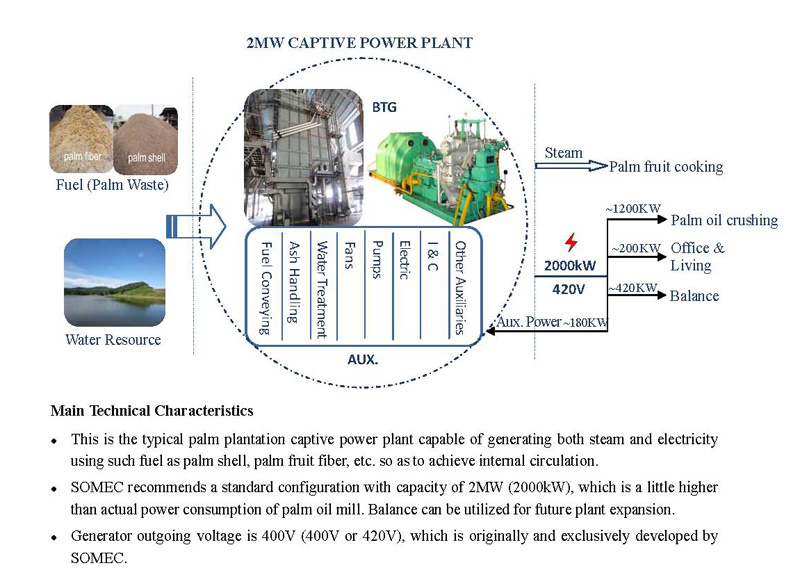

SOMEC will select the most suitable type of boiler according to each fuel characteristics and the mixing proportion.Proposal 1: Fuel of Palm Waste

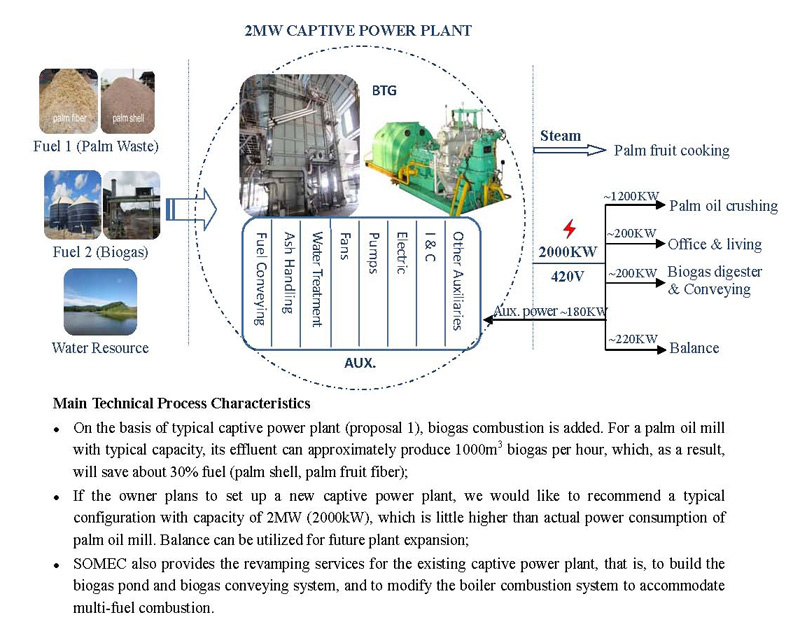

Proposal 2: Fuel of Palm Waste + Biogas
Shandong Overseas Machinery & Equipment I/E Co., Ltd. (SOMEC) was developed from the Overseas Project Dept. Of Shandong Machinery & Equipment Group Corporation, and jointly set up with some certain energy enterprises which is dedicated to the operation of international EPC projects/complete plants.
In last decade, SOMEC has enjoyed rapid development in electric energy projects, and successfully provided complete power plants as well as equipment / system / parts / service to overseas customers, such as:
PT. Poeser Indonesia / PT. Lombok Energi
PT. PLN (Persero) (BBL Project)
PT. PLN (Persero) (NTT project)
PT. Great Giant Pineapple
PT. Indominco Mandiri
Zedtee Plywood Sdn. Bhd
PT. Surabaya Mekabox
PT. Basuki Pratama Engineering
Mitsubishi Heavy Industries
Sinar Mas Group
T. Uttam Galva Metallics Limited
etc.
Being one of the earliest in operation of overseas projects, since 1990s, we provided various products and services for a good number of domestic and foreign users, including:
Mitsubishi Heavy Industries / Main supplier for steel structure, shipbuilding platform, etc.
China Ministry of Railways / Qualified Supplier for electrified railway cable, overhead lines, etc.
Qingdao & Tianjin Municipal / Main Contractor for coal gasification projects
Djajanti Group, Indonesia / EPC contractor for cold storage, ice-making plant on its eight aquatic bases
Djajanti Group, Indonesia / Main supplier for fishing boats, diesel engines and diesel generating sets, etc.
Djajanti Group, Indonesia / Main supplier for one shipbuilding line in Indonesia
Premier Industrial Chemical / EP contractor for ethanol production line of 100, 000 tons per year.
Myanmar Ministry of Industry / EPC contractor for quinine extraction plant, other pharmaceutical facilities.
With support from the group corporation and high authorizes, awarded with the international engineering qualification issued by China Ministry of Commerce, we are ready to provide you the best service and share the success of every project.
