| Price: | US $ 6933Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1Set |
| Pay Type: | T/T,Paypal |
Bottled water treatment ozone generator with CE approved
Allied Power ozone generator technology advantages:
1. Adopt high frequency power supply system which made by us strict quality control. It is smaller, low electric consumption and high efficiency than other medium frequency or low frequency power supply system.
2. We introduce international micro-gap discharge technology, quartz glass tubes honeycomb discharge. Quartz glass tubes produce ozone with high efficiency than enamel tubes. High dielectric constant is not easy be punctured by high voltage. So quartz glass tubes working life is longer than enamel tubes or plates.
3. Compare to air cooling system, our water cooling system with good cooling effect. It could improve ozone output and concentration.
4. Pure oxygen as gas feed, our highest ozone concentration could reach 230mg/l.
5. When ozone concentration is 100mg/l, electric consumption is 7Kw/(O3kg*h)
6. Wecon PLC micro computer control, touch screen human-machine display.
7. Adopt stainless steel 304 ozone reaction cavity and stainless steel 316 discharging tubes.
8. We are specialized on ozone generator and high frequency inverter R&D, production for many years. So our ozone generator could well match to our high frequency power supply system. So our ozone generator working stable and high efficiency, low decay, low electric consumption than most ozone generators suppliers.
Our ozone high frequency inverters get many international patents. Less ozone generator suppliers could produce ozone generator at the same time produce soft-switch power supply system like us
Ozone water machine Concentration:2~3ppm, Water treatment capacity:2T/h | |||||||||||||
Item No.
| Ozone Output (g/h) | Concen tration(mg/L) | Rated power(kw) | Air flow rate (m3/h) | Cooling water flow rate (m3/h) | Working pressure(Mpa) | Air dew point(°C) | Relative humidity | Power supply (V/Hz) | Power consumption ( kwh/kgO3) | Weight (Kg) | Dimensions (mm) | |

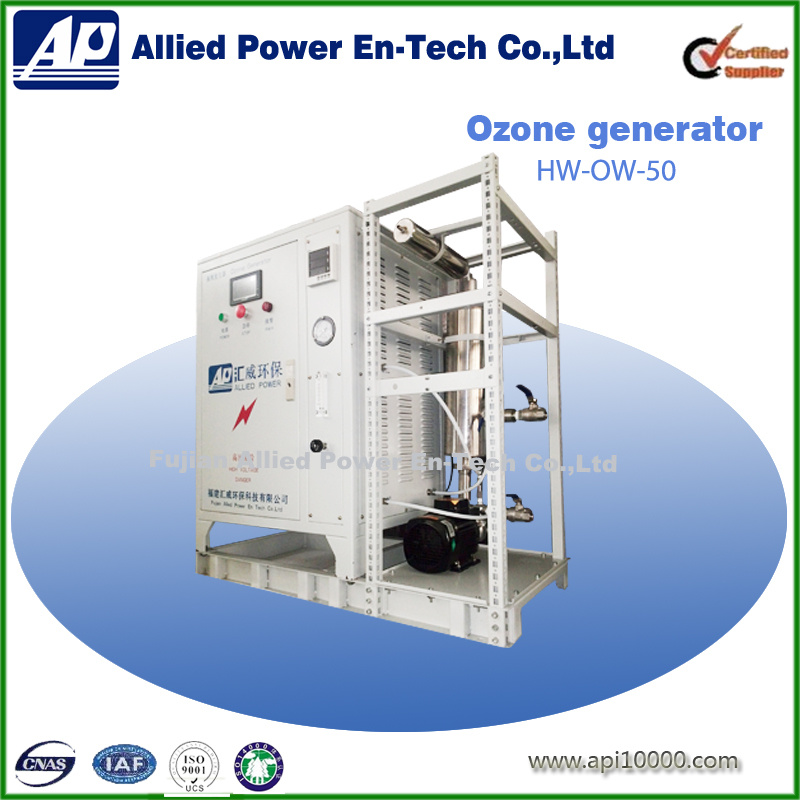

HW-OW-50 | 50 | 100 | 1.25 | 0.1 | 0.1 | 0-0.2 | -45 | ≤60% | 380V/3PH | 8.5 | 135 | 1000*600*800 | |
Description: | |||||||||||||
1. Ozone generation concentration 0-100mg/L adjustable | |||||||||||||
2. Microcomputer automatic control, human-machine interface display, a key type operation, easy and convenient | |||||||||||||
3. Stable and reliable system, Low power consumption, produce 1 kg average power consumption just 7 KW*H | |||||||||||||
4. Group control function, a host control platform machine, digital remote monitoring and control, real-time analysis and diagnosis system failure | |||||||||||||
5. Ozone production adjustable | |||||||||||||
6. Time switch machine Settings, realize unattended | |||||||||||||
7. Adopt cooling water system. It do not scaling moss | |||||||||||||
8. Ozone gas outlet own 0.2 Mpa pressure, it could transport gas without any external equipments during certain scope | |||||||||||||
Ozone water machine Concentration:2~3ppm, Water treatment capacity:2T/h
| |||||||||||||
Application: | |||||||||||||
1. Drinking water treatment, RO system water sterilization,Food and beverage water sterilization, barrel sterilization, disinfection and sterilization surgery tools etc. | |||||||||||||
Remark: | |||||||||||||
1. The final price will be subject to the approval sample and order quantity. | |||||||||||||
2. Terms of payment: T/T 30% payment as deposit and the balance 70%T/T payment against the copy of B/L. | |||||||||||||
3. Delivery time: 30 days after everything confirmed and receive 30% deposit. | |||||||||||||
We are OBM and ODM manufactory, We also accept OEM.
We own our core technology, large sales teams, strong R&D team and standardized production workshop.
Have strong competitive advantages on quality and price.
Our R & D team always leads ozone technical reform and innovation.
Our markets extend to all over the world.
| Prod Model: | HW-OW-10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: | Efficient Filtration |
| Motive Force: | Electric power |
| Usage: | Environmental Protection, Chemical Industry, Water Treatment |
| Style: | Micro-Gap Corona Discharge +Quartz Glass Tube |
| Model Number: | Hw-Ow-10 |
| Ozone Output: | 10g/H |
| Ozone Concentration: | 100mg/L |
| Rated Power: | 1250W |
| Type: | Ozone Water Purifier |
