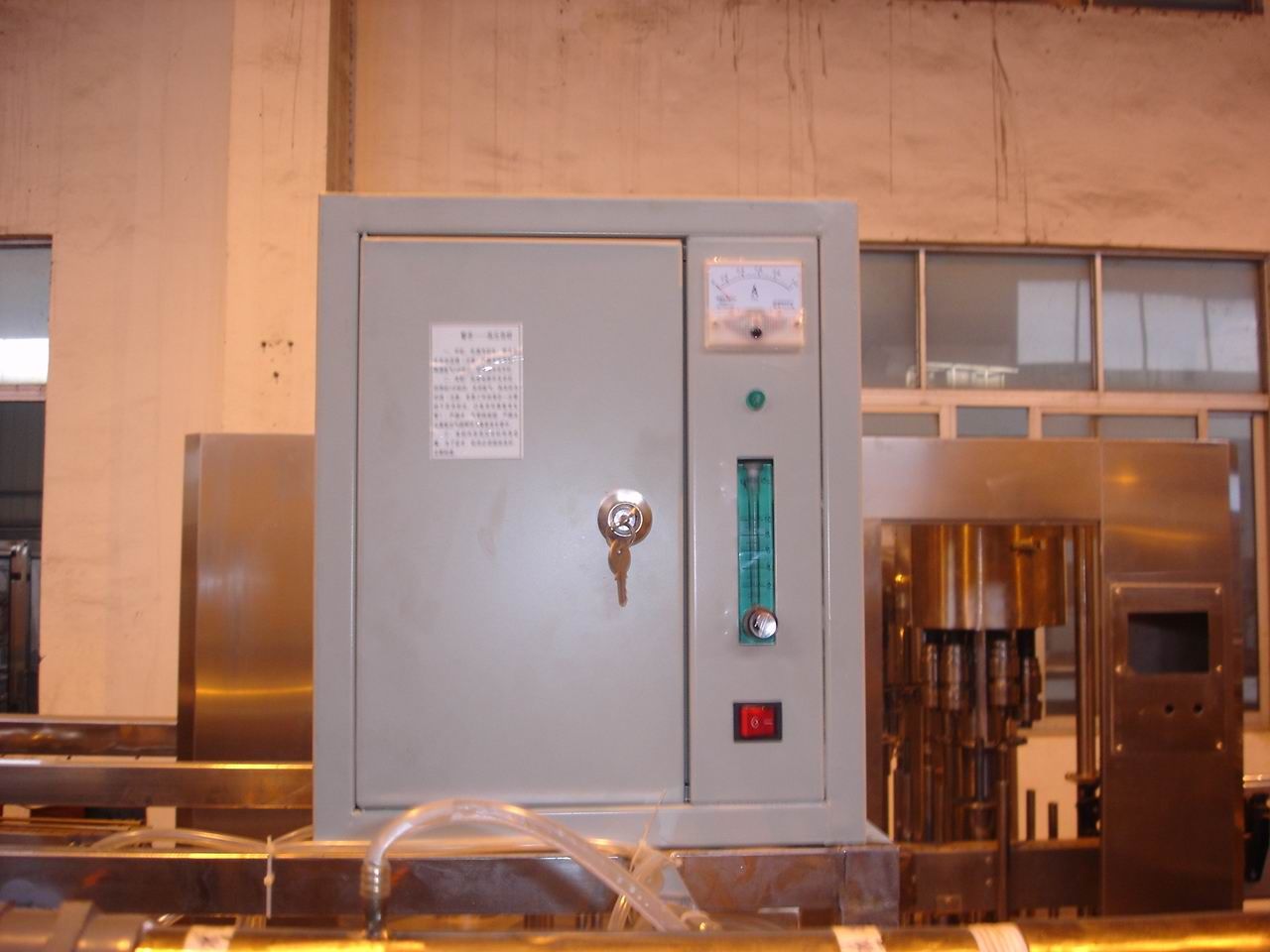

Ozone Generator

Ozone generator adpts'high-efficiency Powder Filling type Ozone Generating-tube'as its core component, compared with traditional glass-tube and ceramics-tube generator, its production capacity is much larger, energy-saving and with high concentration, It is ideal equipment for sterilizing, decoloring, deodorizing of purified and mineral water
OZ series Ozone GeneratorThis ozone utilizes the integration technology of IGBT (Infineon Technologies AG, Germany), where the ozone is produced by corona. The discharging room is made up of tube shape generator which structure is dehydroxy quartz. The special backwater designs (the backwater is not easy to damage the machine) will prolong the service life of the machine; The electric circuit is a kind of modular design, the dielectric part and the ozone connectors/pipes for transferring the ozone are all anti-oxidation components, which are not easy to be oxidized but with long service life; The density of the corona is big but with low temperature, which greatly increased the density of the ozone.

Constituent
3.1 Generator unit (electric board, high-pressure generating unit and the discharging unit), stainless steel cover, 65L air compressor (some products may have not 65L air compressor), current meter, Taiwan 150 blower, connecting pipes, ozone adjustment unit and indicating lamps etc.

Applications:
(1) Lab oxygenation, decolor, removal of smells test;
(2) Refrigeratory disinfection;
(3) Medicine, food procession production-line sterilization and oxygenation;
(4) Food equipments, production water, bathroom disinfection;
(5) Prevent mildew and keep fresh on egg, fruits, vegetable, and food.

Major Advantages:
1) Non- hydroxide Quartz discharge
2) Adjustable Ozone output;
3) Air cooling;
4) Special design to avoid water return
5) Stainless steel casing;
6) Long life discharge cell, continuous running;
7) Two type gas source: Compressed air or oxygen;
