Features:

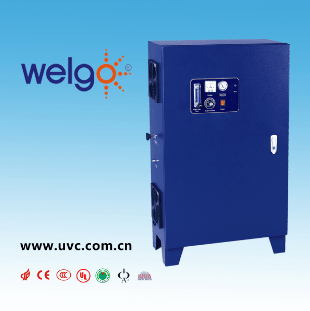

The components are mounted in a rugged carbon steel cabinet.
The B3 Model ozonator uses a fan-cooled Corona Discharge (CD) board to generate ozone from compressed air. And it also has a built- in light duty air compressor to generate its own compressed air. The result is high ozone concentration yields at low energy demand.
Switches and LED status indicator lights are provided for the ozone generator and the air compressor. The concentration of ozone discharged is controllable from 0 to 100% by a dial potentiometer to vary the current. Should the unit stop making ozone for any reason, a fault warning light is displayed. The unit is protected electrically by an externally-accessible fuse.
Technical Parameters |
Model |
B3-30 |
Ozone output |
30g/hr |
Ozone concentration |
60-80mg/L (8% by weight) |
Feeding gas |
Oxygen |
Cooling system |
Air cooling (has two built-in fans) |
Working pressure |
0-0.01Mpa |
Power supply |
220V/50Hz, 110V/60Hz |
Power consumption |
950W |
Operating temperature |
-10-38 deg C |
Relative humidity |
Less than 85% |
Component:
1. Ceramic reaction chamber with wind cooling;
2. Standard power module of high frequency;
3. Ventilation system;
4. Standard control panel;
5. Air intake flow regulator;
6. Carbon steel housing for standard design of cabinet, plastic and stainless steel as optional.
Applications:
drinking water
process water loops
recycling processes
food and beverage industries
cooling towers
aquaculture
aquariums and swimming pools
Optional accessories:
Air dryer
Ozone monitor
One way valve
Venturi Injector
Booster pump
Ozone reaction tank
Automatic exhaust steam valve
Ozone destruction device
Ozone leakage alarming device
