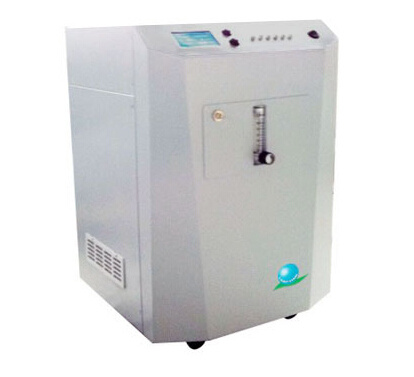

Features:
1. Ozone output: 8 - 28 g/h
2. High ozone concentration: > 58 mg/L
3. Built in oxygen concentrator: > 90% purification
4. Applied in medical, laboratory, water purifying, laundry, agriculture, etc
5. Compact assembly, it can be movable with wheel
Technical Specification:
Ozone Output: 28 g/h. Adjustable 8.0 ~ 28.0 g/h
Gas Flow: Adjustable 1.5 ~ 8.0L/min
Oxygen Purity: > 90 %
Output connections: 6.0 mm diameter
Continuous operation: 24 h/day
Cooling system: Air cooling, built-in 2X 80 CFM fans
Ozone generating method: Corona discharge
Input voltage: 220 V 50Hz (60 Hz optional)
Power input: 850W
Operating temperature: -10 deg C ~ +60 deg C
Storage temperature: -20 deg C ~ +70 deg C
Size: 370 X 390 X 590 mm
Weight: 42 Kg w/ stainless steel housing
|
Model |
KJ-5 |
|
Flow rate |
0-5L/min |
|
Purity |
93±3% |
|
Outlet Pressure (Mpa) |
0.04-0.07 |
|
Sound Level |
≤50db |
|
Power |
AC230V, 50Hz |
|
Power Consumption |
≤530W |
|
LCD display |
Operating pressure, Present Working Time,
Accumulating Time, presetting Time from 10mins to 40hours |
|
Alarm |
Power failure alarm, High&Low pressure alarm
Temperature alarm, Low purity alarm. |
|
Net Weight |
25Kgs |
|
Size (mm) |
365×375×600mm |
|
|
Guangzhou Kejian Medical Equipment Co., Ltd which engage in designing, fabrication and manufacturing of Ambulances and Medical Equipment in Guangzhou, China.
Guangzhou Kejian Medical Equipment Co., Ltd has been one of the leading manufacturers and distributors of all kinds of Ambulances, Mobile Clinics and Emergency medical equipment in China. We are committed to tailor our customers' Needs by providing high quality products, competitive pricing, fast delivery and satisfactory after sales services. The range of our Products: Ambulance, Bus Ambulance, Mobile Clinic, AED and defibrillators, medical Ventilator, Patient Monitor, all kinds of Stretchers, Emergency and Resuscitation bag, medical Suction, Oxygen therapy sets and immobilization sets.
If you have any requirement please feel free to contact us or send us your inquiry.
We are looking forward in doing business and cooperation with your esteemed company.
